Window Glass - Liftgate: Removal

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

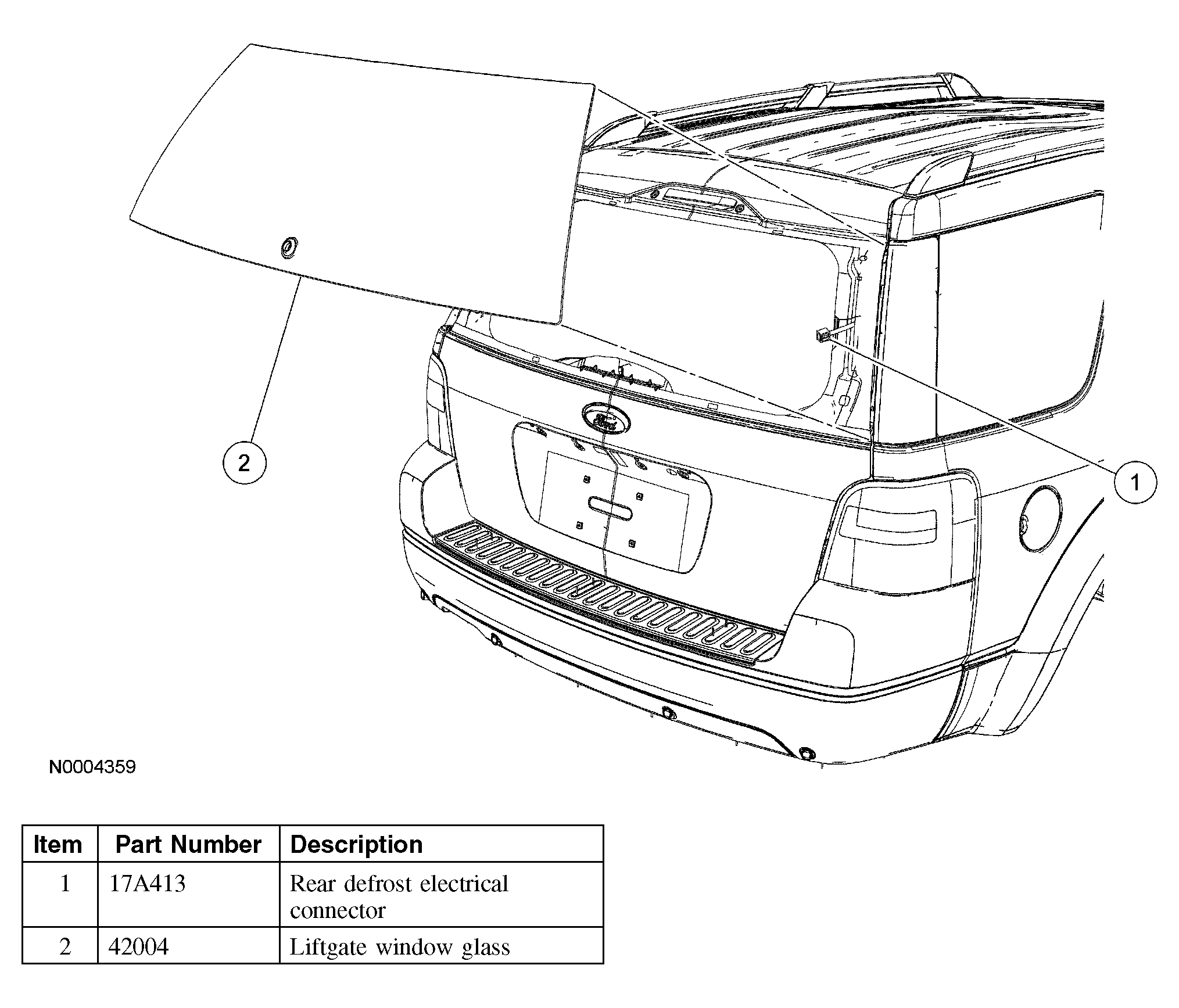

Fig 1: Removing Window Glass - Liftgate

Courtesy of FORD MOTOR CO.

WARNING: To prevent glass splinters from entering eyes or cutting hands, wear safety glasses and heavy gloves when cutting glass from the vehicle.

Remove the rear window wiper arm and motor. For additional information, refer to WIPERS AND WASHERS .
Remove the liftgate trim panel. For additional information, refer to WIPERS AND WASHERS .
Disconnect the 2 rear window defrost electrical connectors.

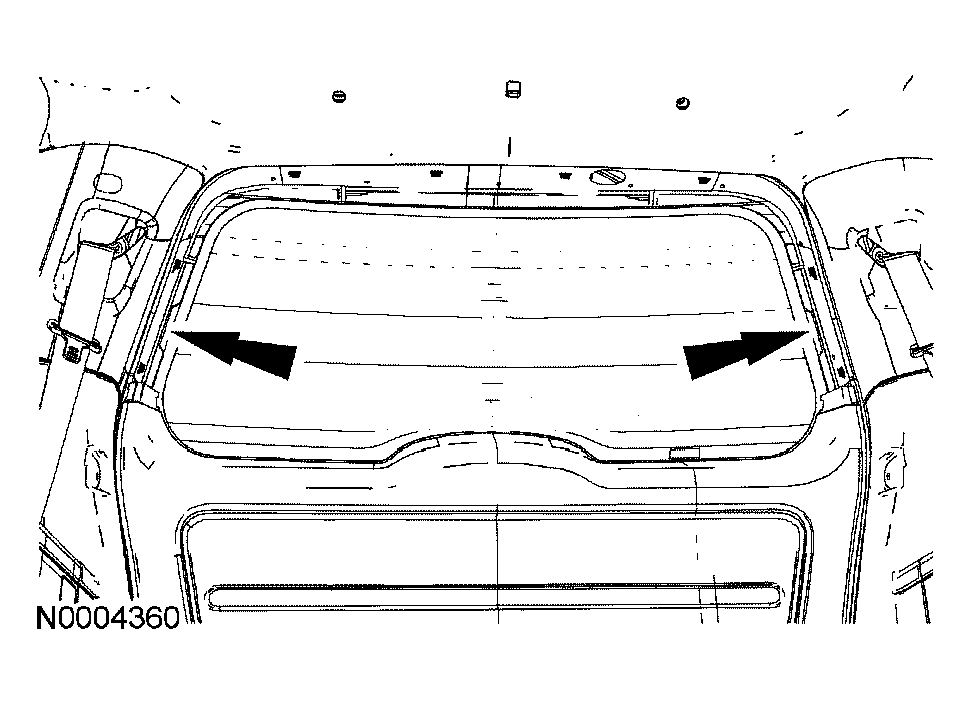

Fig 2: Disconnecting Rear Window Defrost Electrical Connectors
Courtesy of FORD MOTOR CO.

NOTE: Lubricate the existing urethane adhesive with water to aid the special tool while cutting.

Fig 3: Cutting Adhesive Away From Liftgate Window Glass

Courtesy of FORD MOTOR CO.

Using the special tool, cut the adhesive away from the liftgate window glass and remove the liftgate window glass.
Using a soft brush or vacuum, remove any dirt or foreign material from the pinch weld.
