Component Locations
WARNING: This page is about a different car, the 2002 Lincoln Navigator and 2002 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

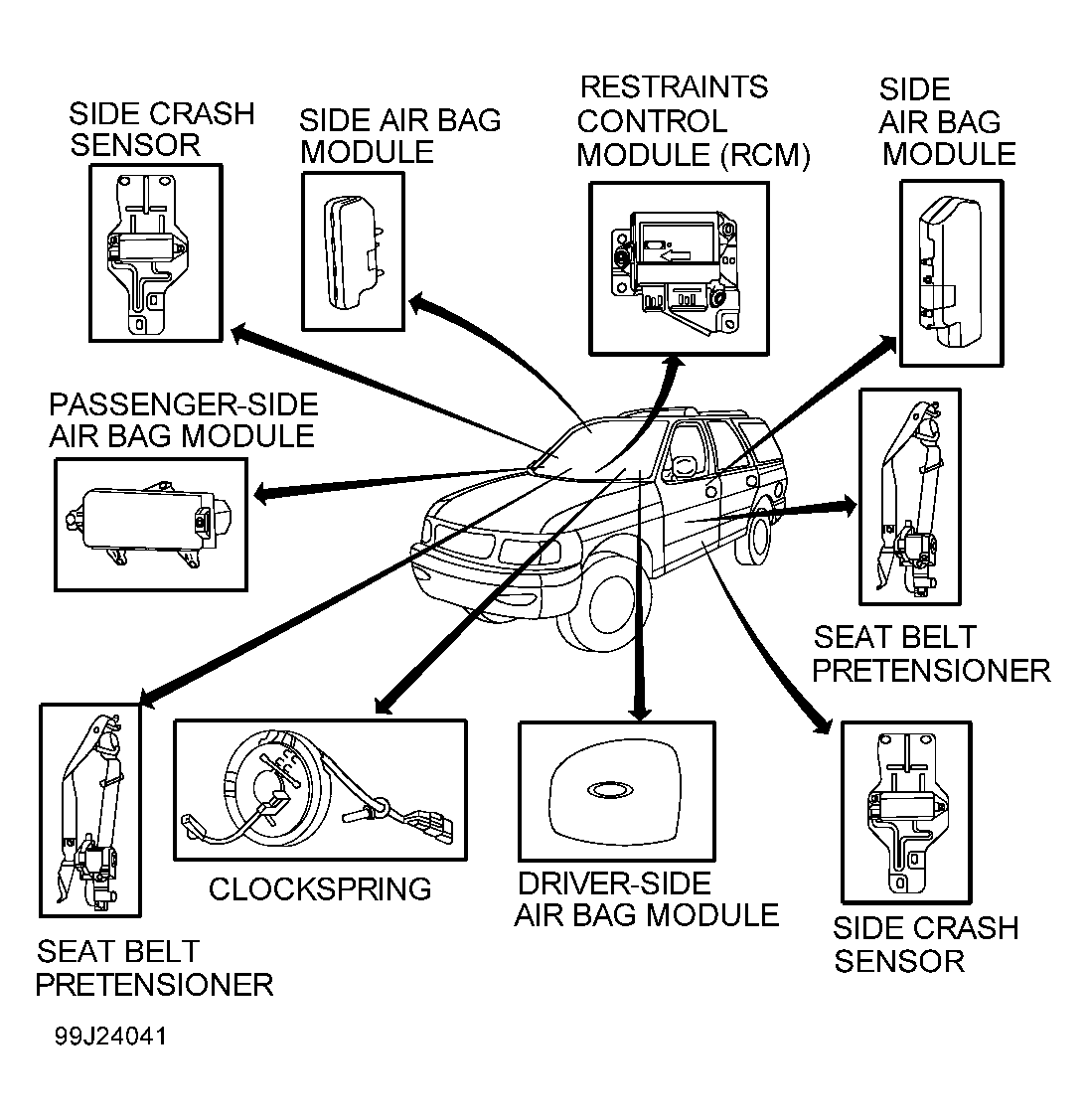

RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | (1) Location | ||
|---|---|---|---|
| Clockspring | On steering column, behind steering wheel | ||
| Driver-side air bag module | Center of steering wheel | ||
| Passenger-side air bag module | Right-side of instrument panel, above glove box | ||
| Restraints control module | On tunnel, under center of instrument panel | ||
| Seat belt pretensioners | Integrated with front seat belt retractors | ||
| Side air bag modules | Outboard bolster of both front seat backs | ||
| Side crash sensors | Under carpet, beneath both front seats | ||
|
|||
