Seat - Exploded View, Second Row, Freestyle

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

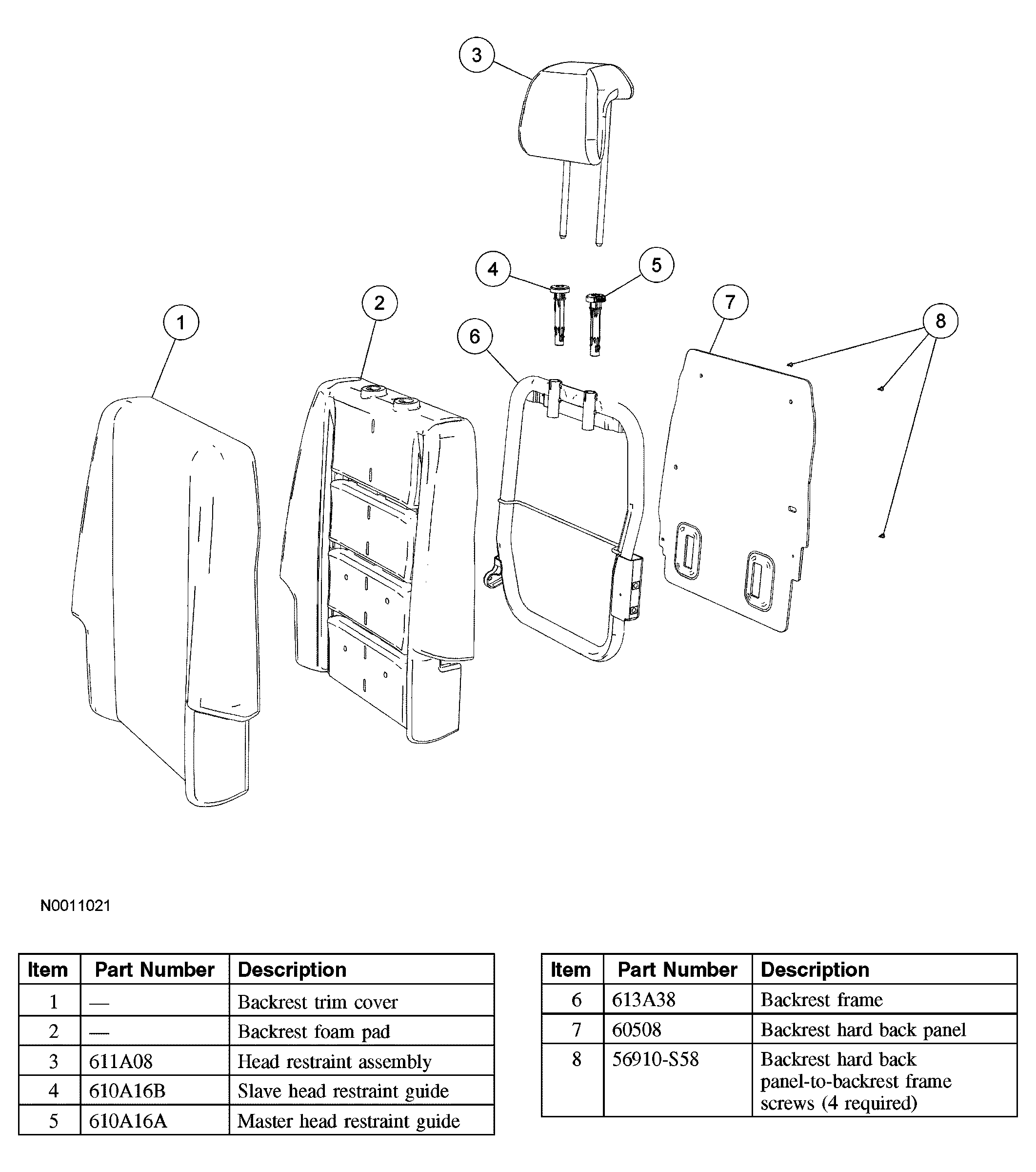

Fig 1: Exploded View Of Freestyle Rear Seat Backrest

Courtesy of FORD MOTOR CO.

NOTE: Both seat riser and seat track are shown.

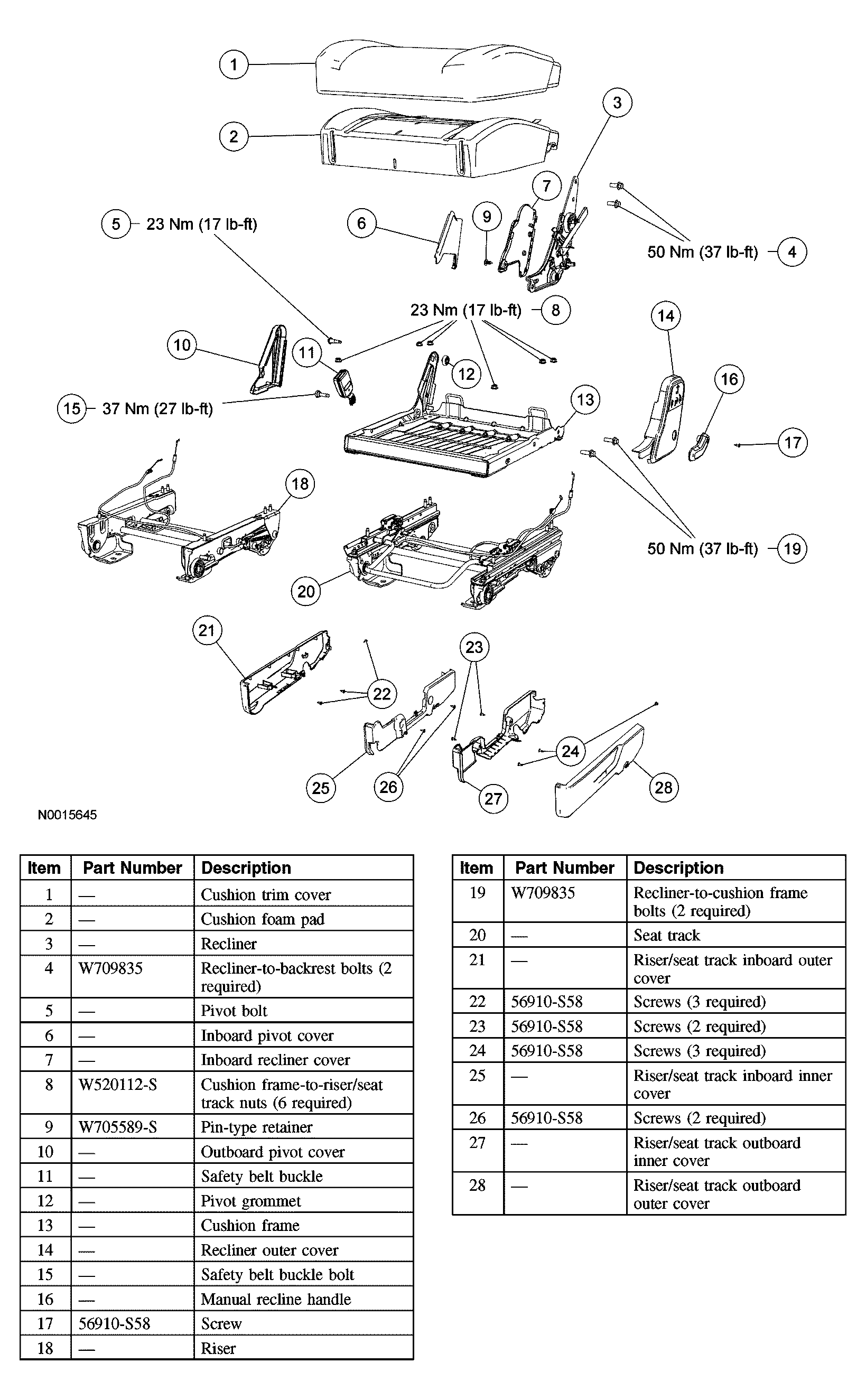

Fig 2: Identifying Riser And Seat Track

Courtesy of FORD MOTOR CO.

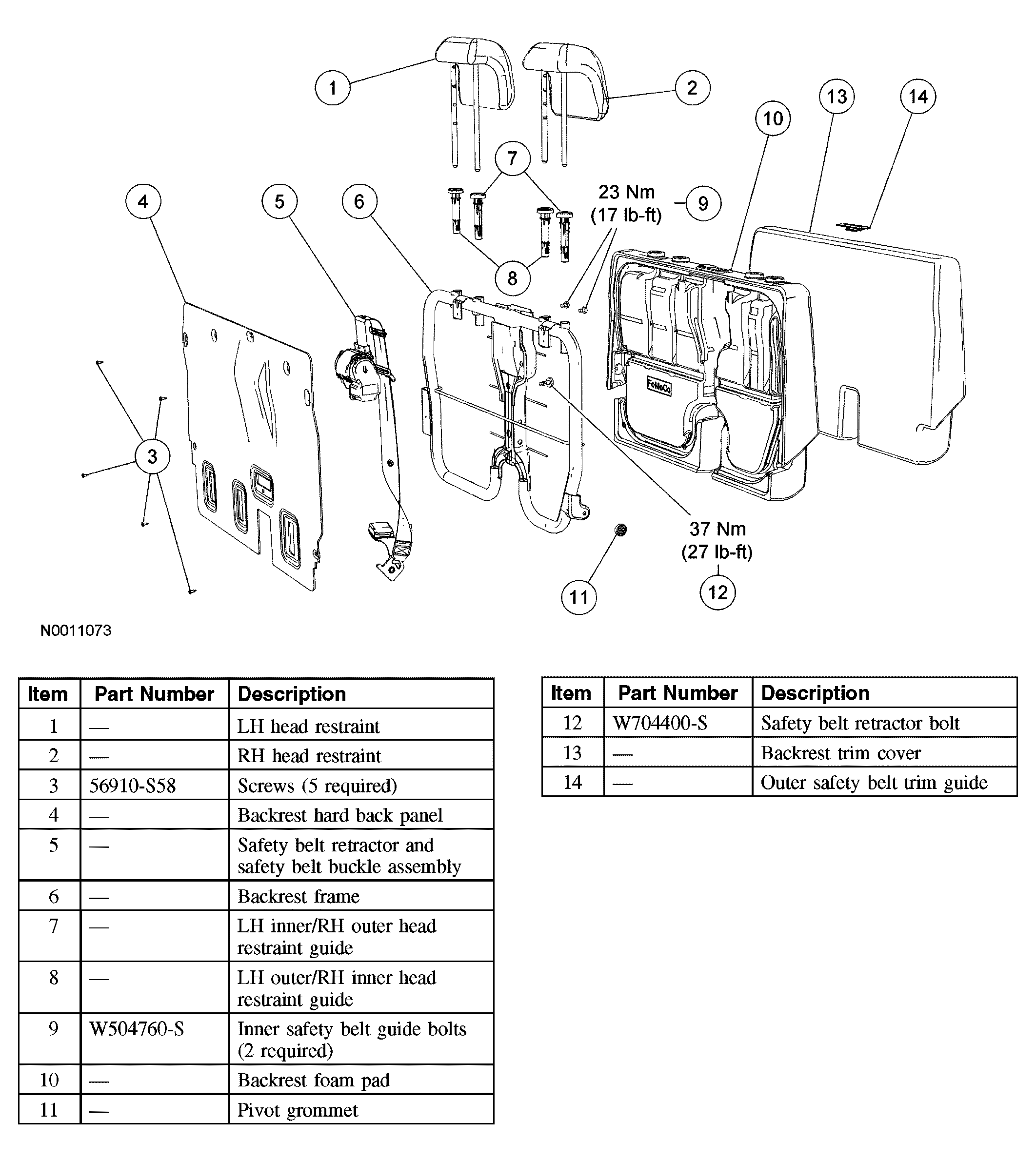

Fig 3: Identifying Freestyle Rear Seat Backrest

Courtesy of FORD MOTOR CO.

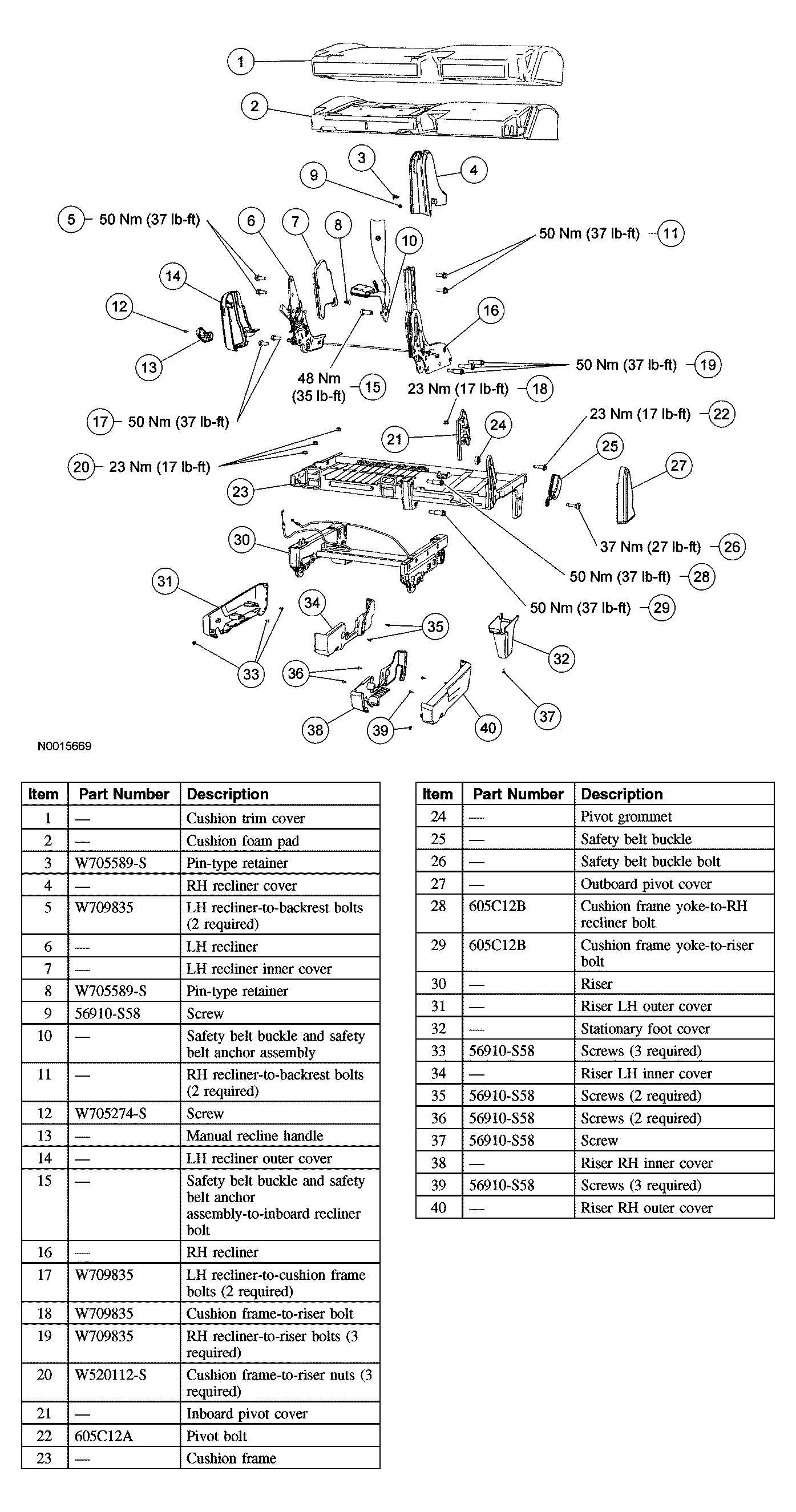

Fig 4: Identifying Freestyle Rear Seat Cushion

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article.
