Disassembly and Assembly

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the shock absorber and spring assembly. For additional information, refer to SHOCK ABSORBER AND SPRING ASSEMBLY .
Using a suitable spring compressor, compress the spring until the tension is released from the shock absorber.

Fig 1: Compressing Spring
Courtesy of FORD MOTOR CO.

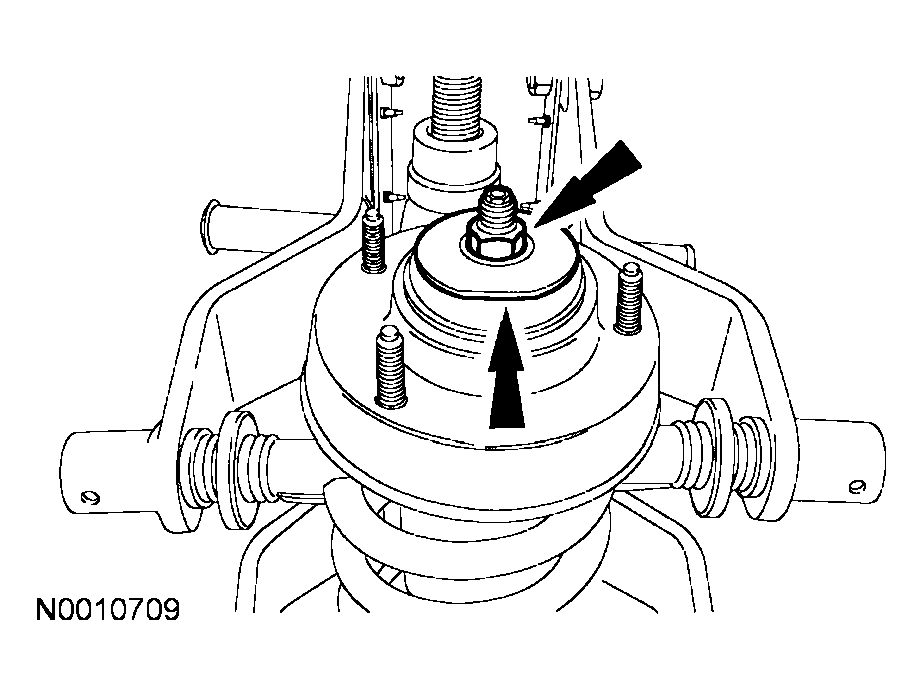

While holding the flats of the washer, remove and discard the nut.
- To install, tighten to 56 Nm (41 lb-ft).

  Fig 2: Discarding Nut
  Courtesy of FORD MOTOR CO.
Remove the shock absorber.
Remove the washer.
Remove the upper shock absorber mount.
Remove the coil spring.
To assemble, reverse the disassembly procedure.
- Always install a new shock absorber-to-upper mount nut.
