Radiator and Cooling Fan - Exploded View

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

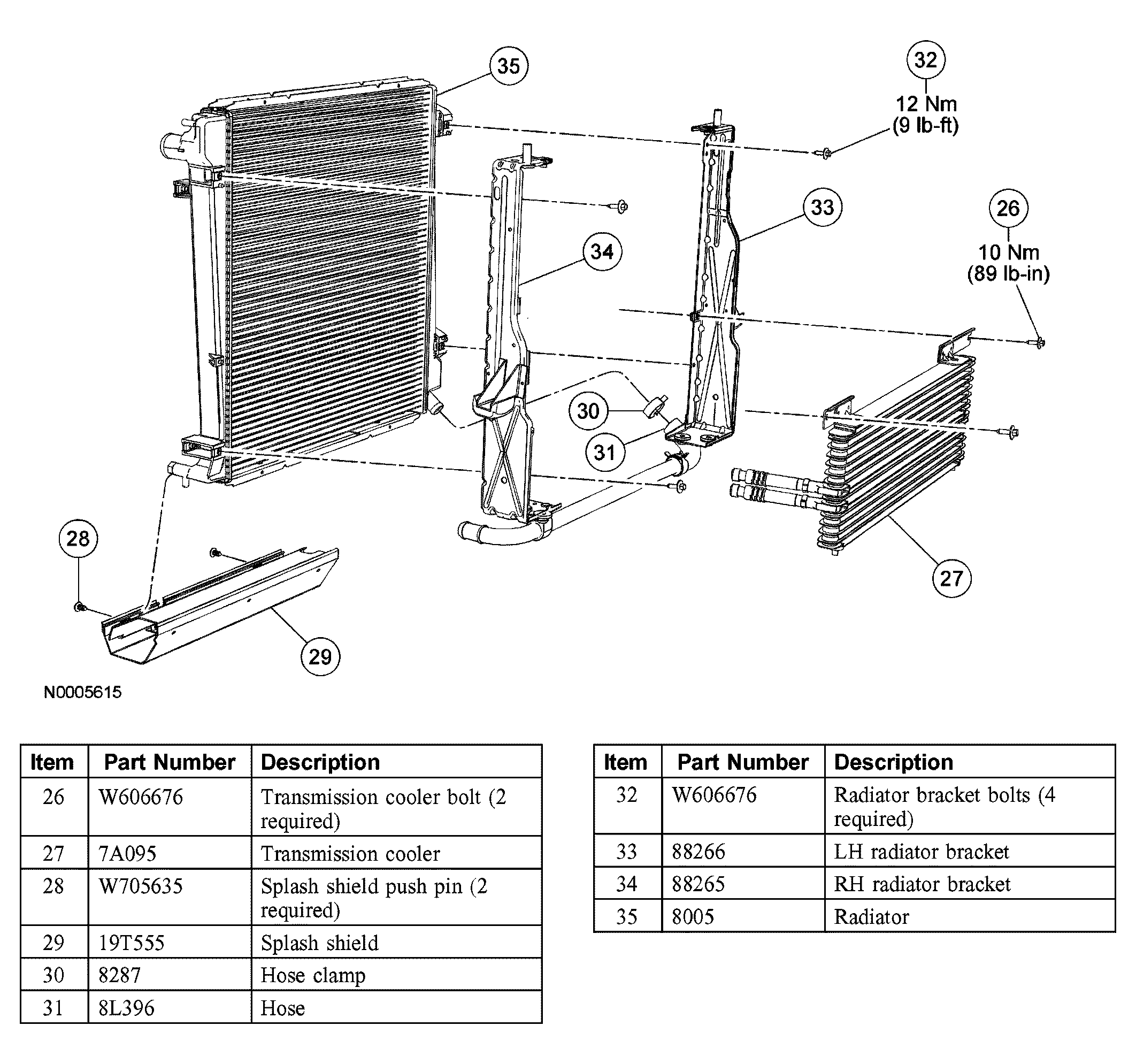

Fig 1: Exploded View Of Radiator And Cooling Fan (1 Of 3)

Courtesy of FORD MOTOR CO.

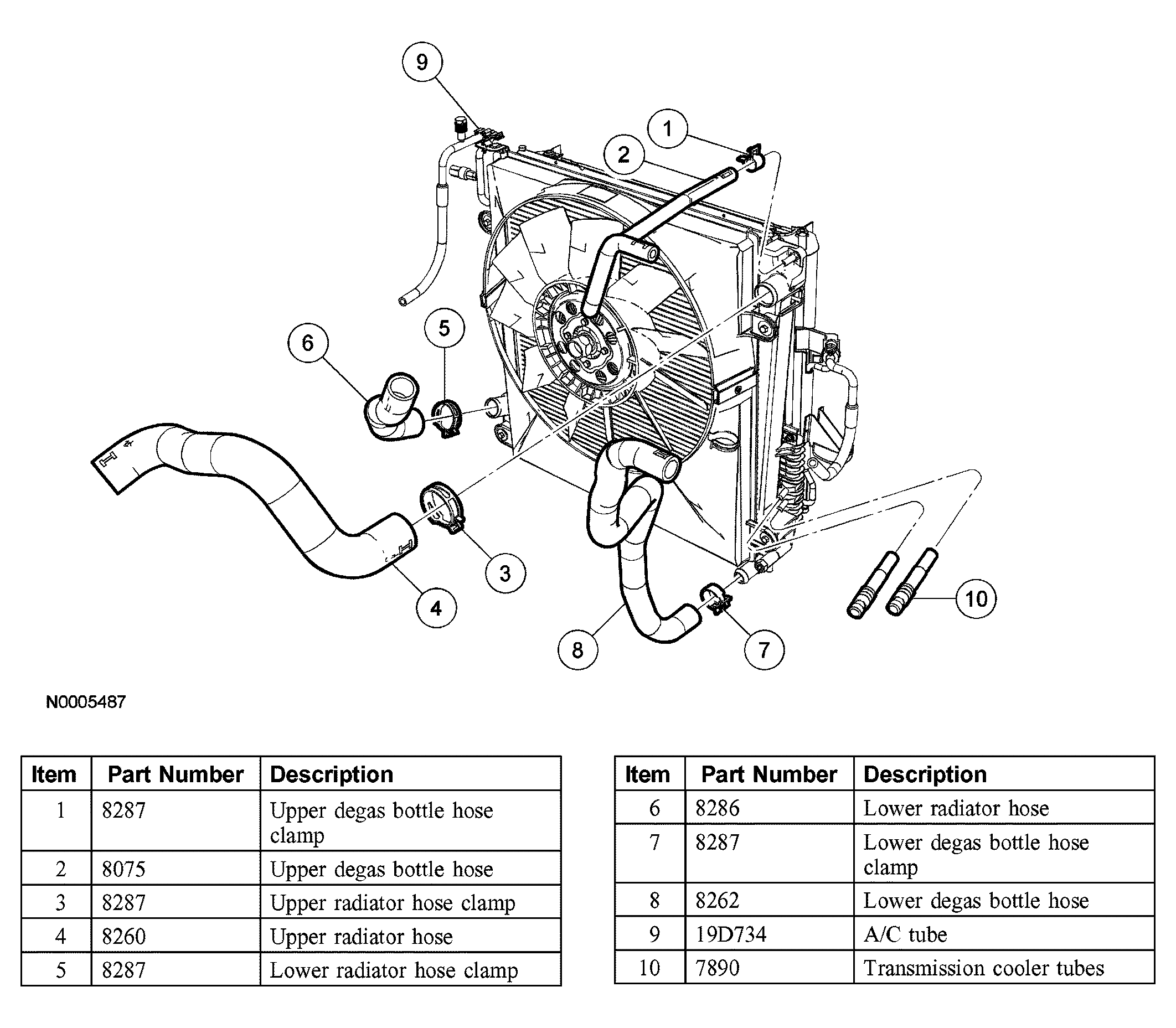

Fig 2: Exploded View Of Radiator And Cooling Fan With Torque Specifications (2 Of 3)

Courtesy of FORD MOTOR CO.

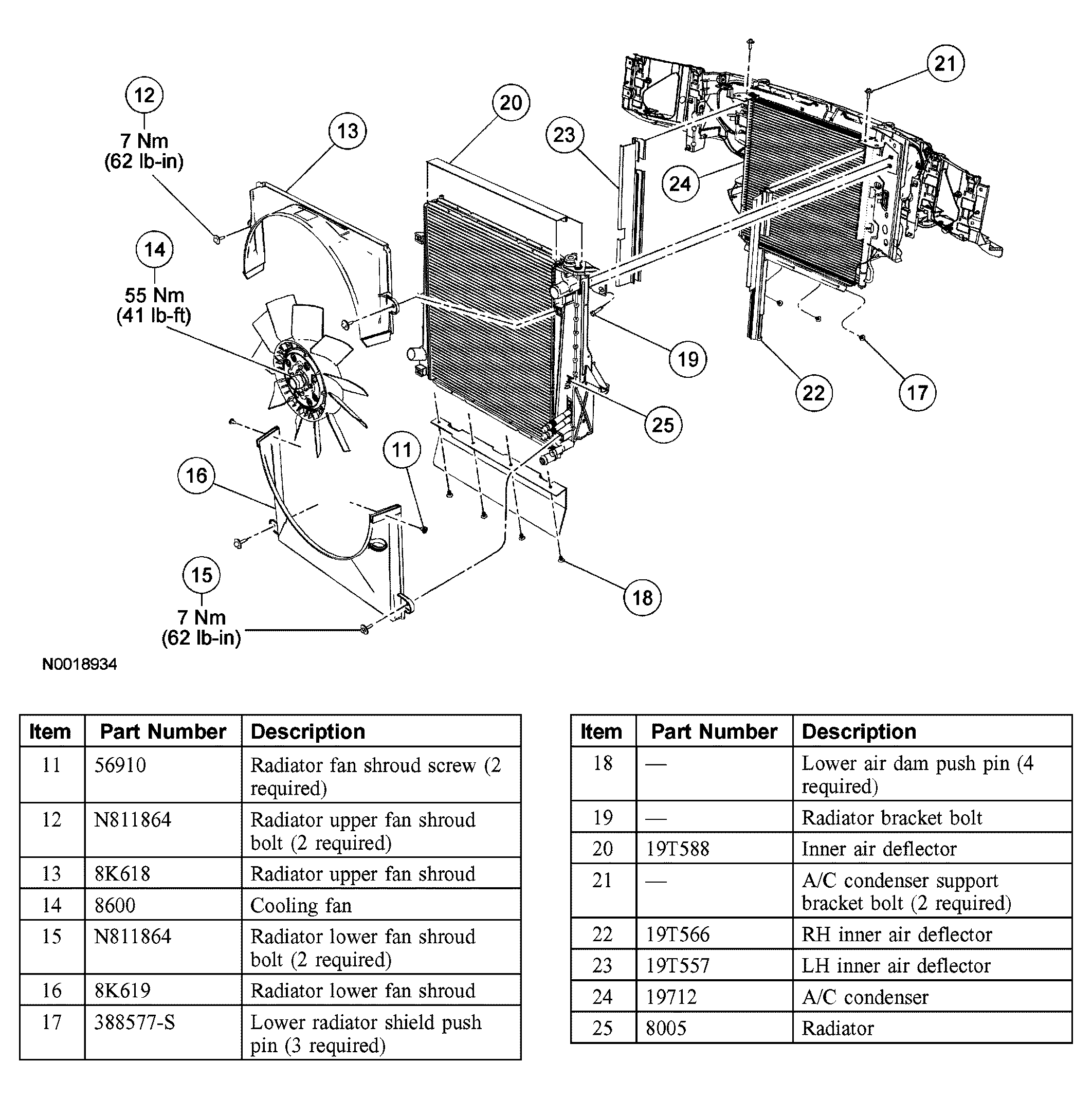

Fig 3: Exploded View Of Radiator And Cooling Fan With Torque Specifications (3 Of 3)

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article.
