WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

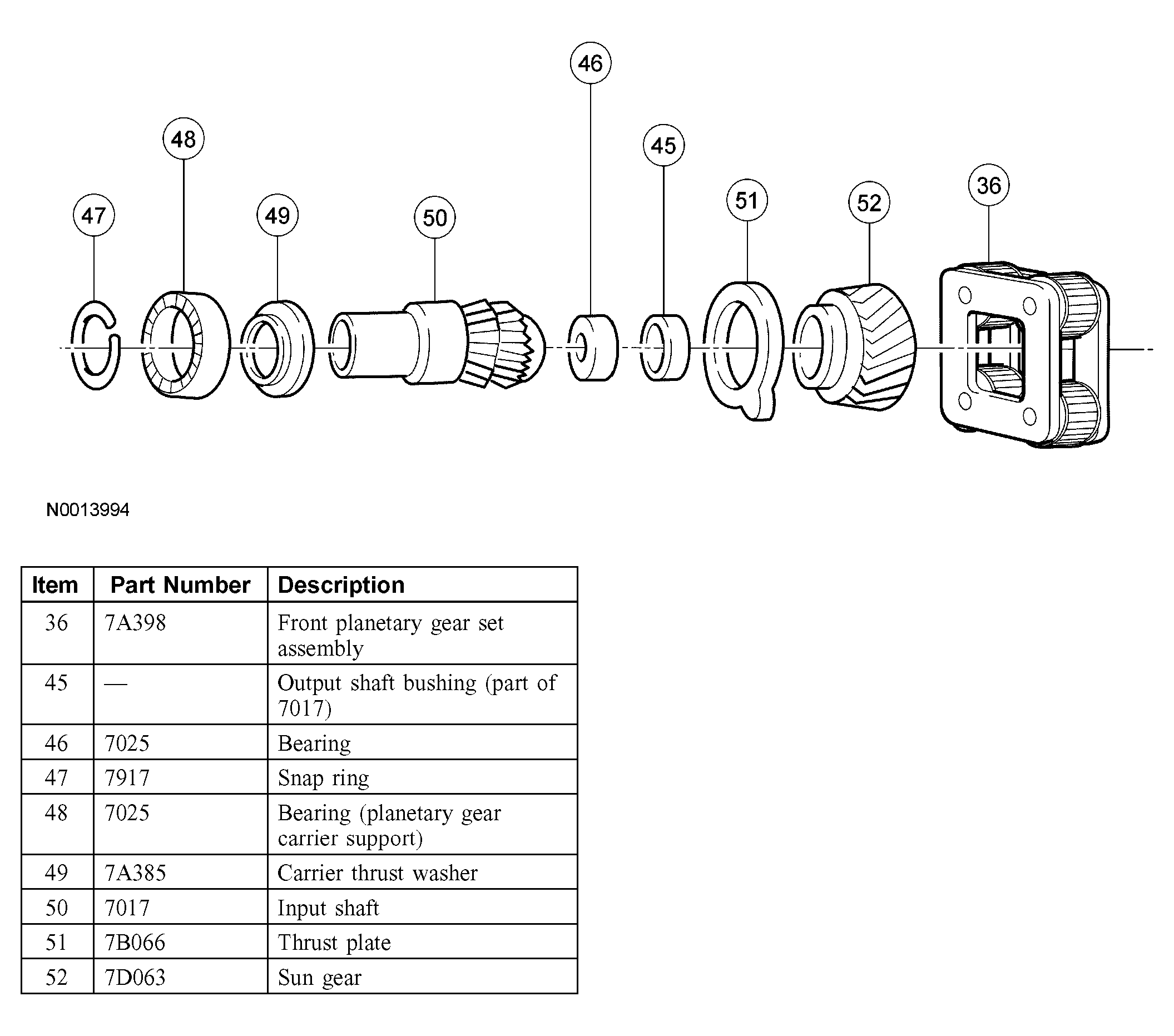

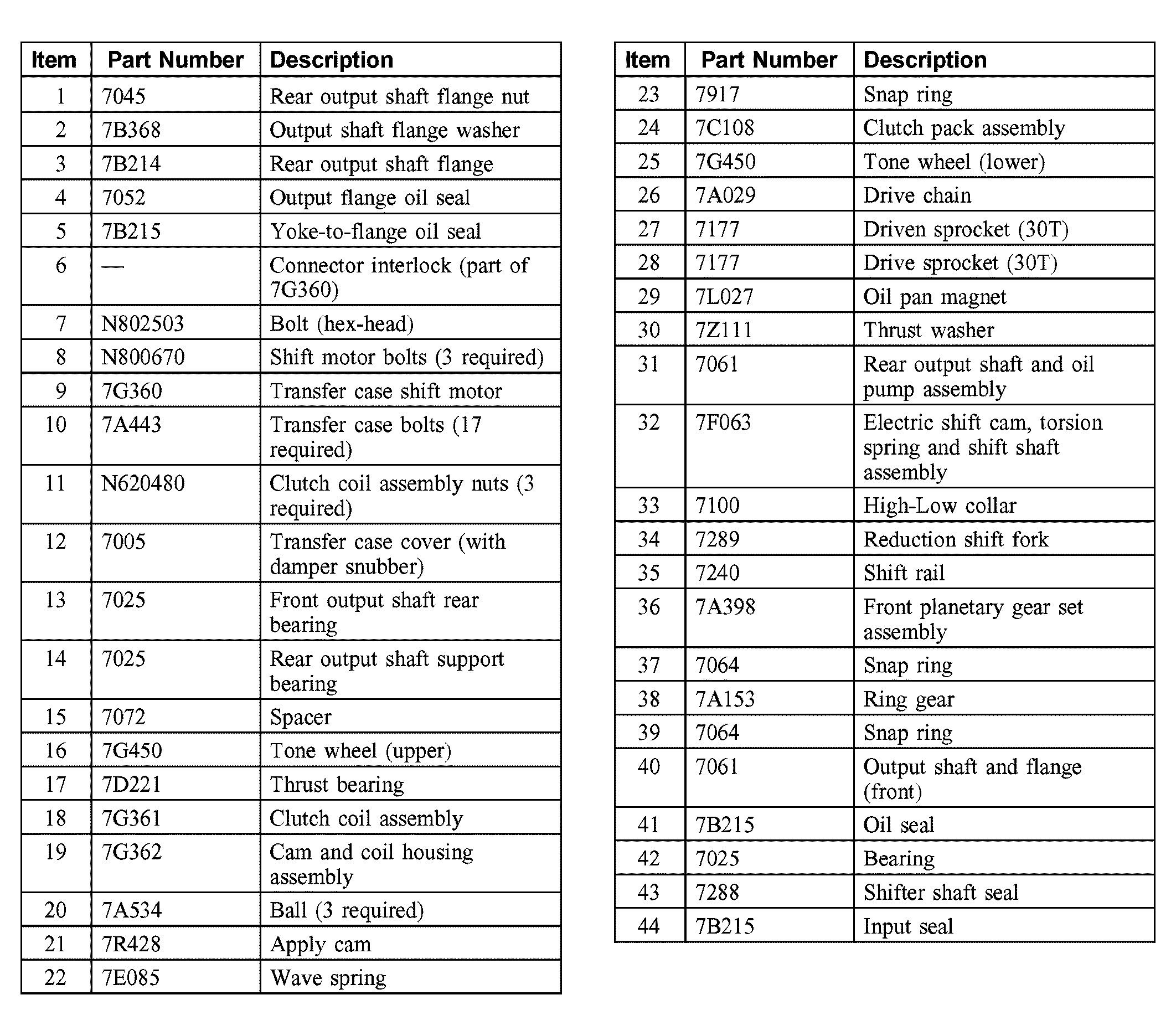

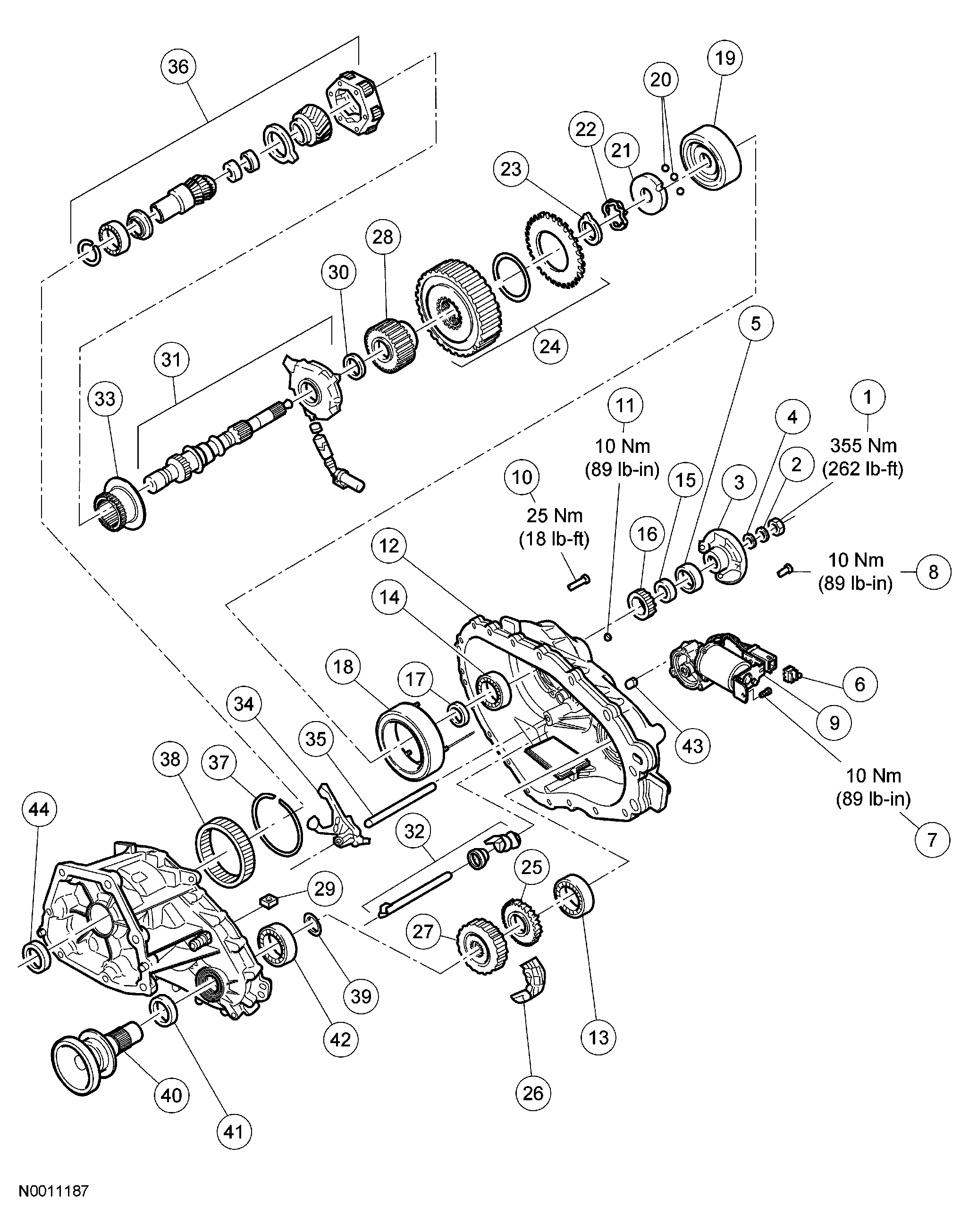

Fig 1: Transfer Case Replacement Components With Torque Specifications
