Sensor Cluster C3180 (4WD)

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

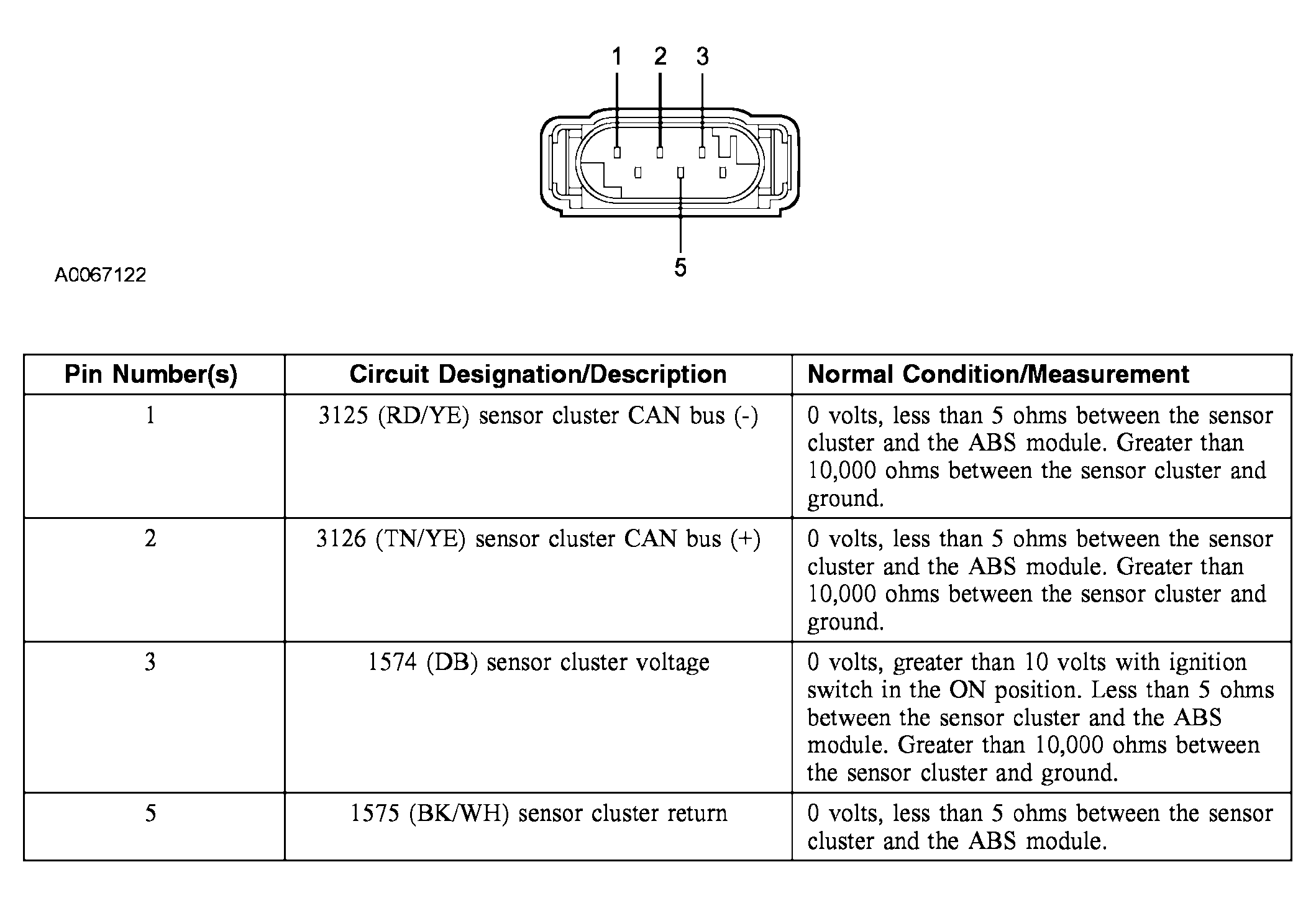

Fig 1: Sensor Cluster C3180 (4WD) - Connector Pinout
G03944815Courtesy of FORD MOTOR CO.
