Stability Traction Control Switch C280
Stability Traction Control Switch C280
WARNING:
This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

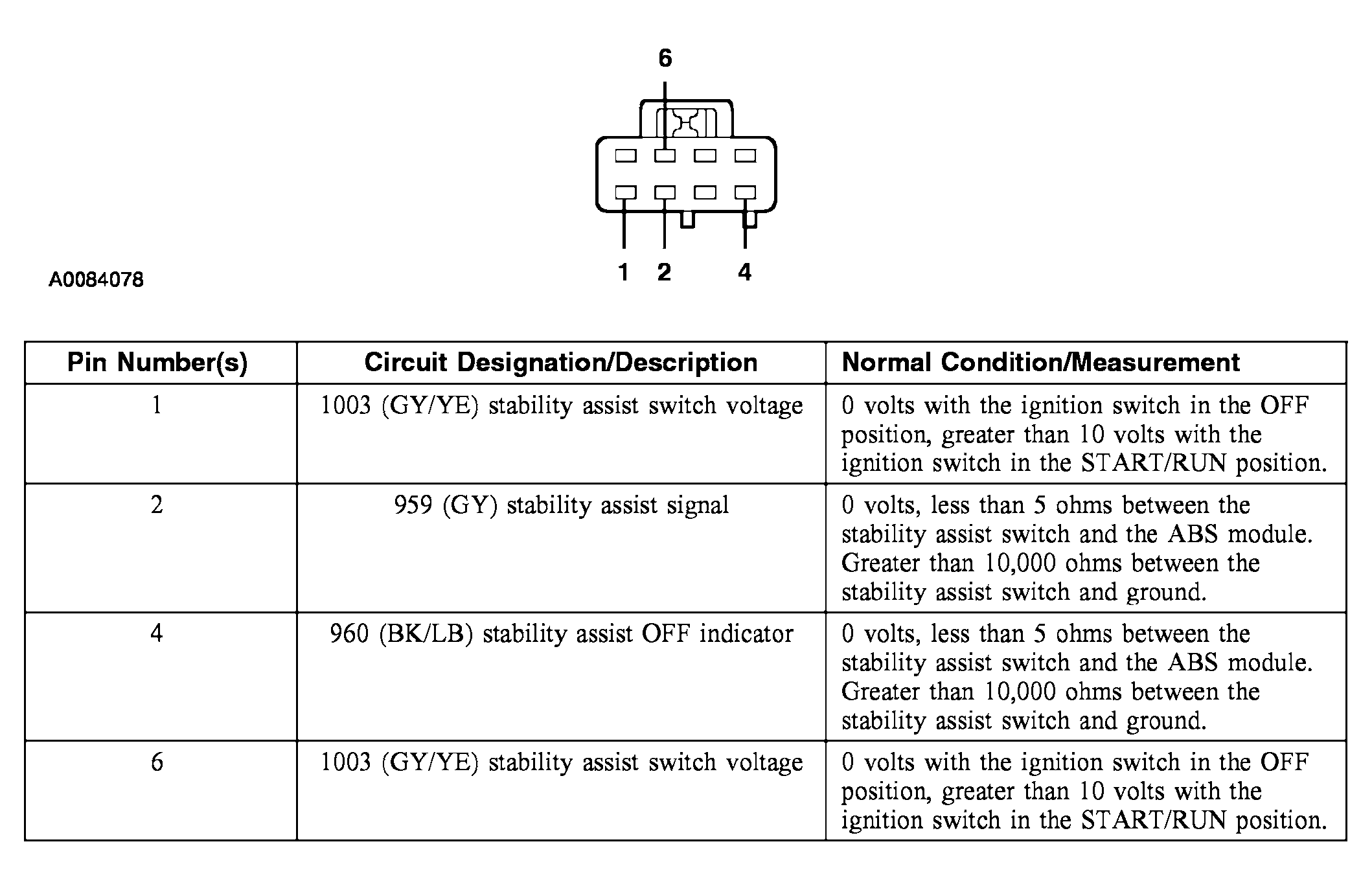

Fig 1: Stability Traction Control Switch C280 - Connector Pinout
Courtesy of FORD MOTOR CO.
