Driver Seat Module (DSM)
›
Connector Circuit Reference
›
Driver Seat Module (DSM) C341e
Driver Seat Module (DSM) C341e
WARNING:
This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

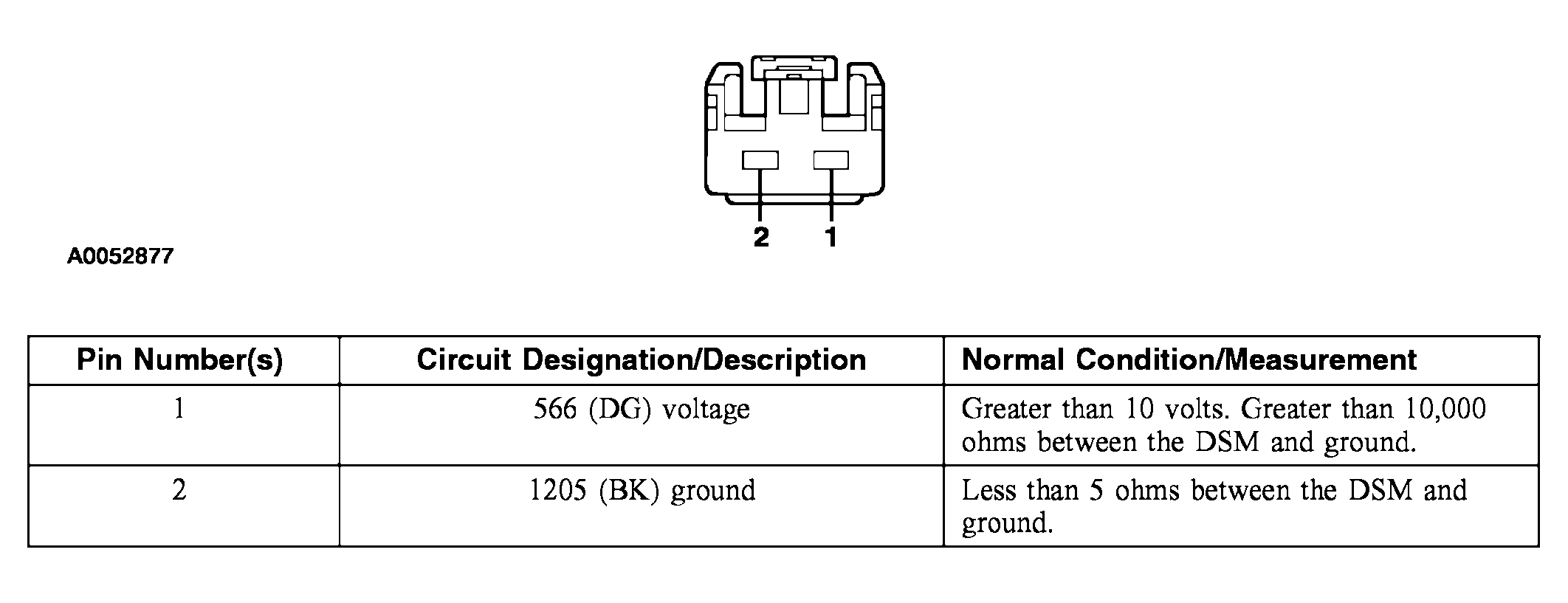

Fig 1: Identifying Driver Seat Module (DSM) C341e Connector Pinout
Courtesy of FORD MOTOR CO.
