Intake Manifold: Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

INTAKE MANIFOLD MATERIAL SPECIFICATION

Item	Specification
Motorcraft Metal Surface Cleaner ZC-21	WSE-M5B392-A

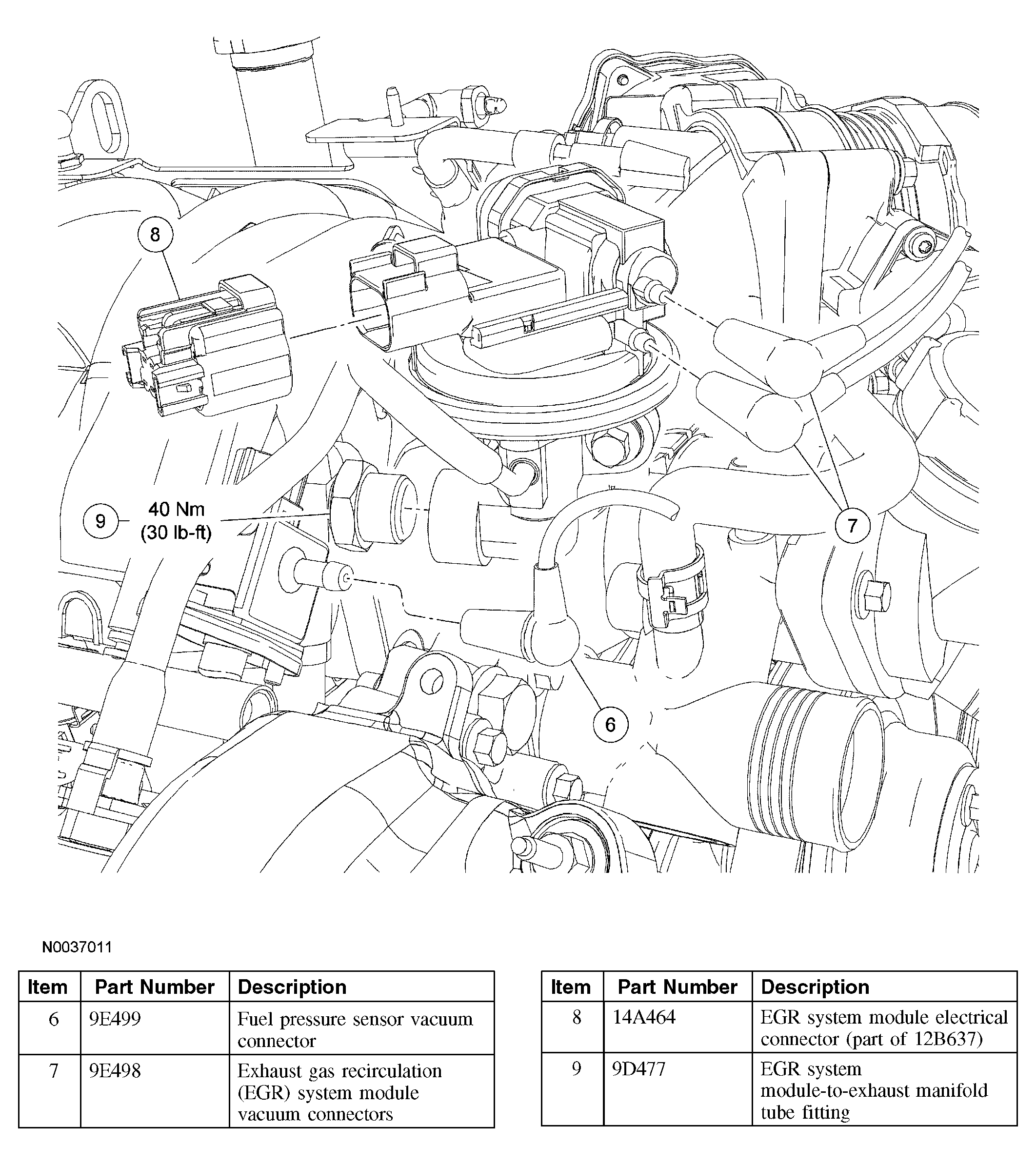

Fig 1: Identifying Components Of Intake Manifold (1 Of 4)

Courtesy of FORD MOTOR CO.

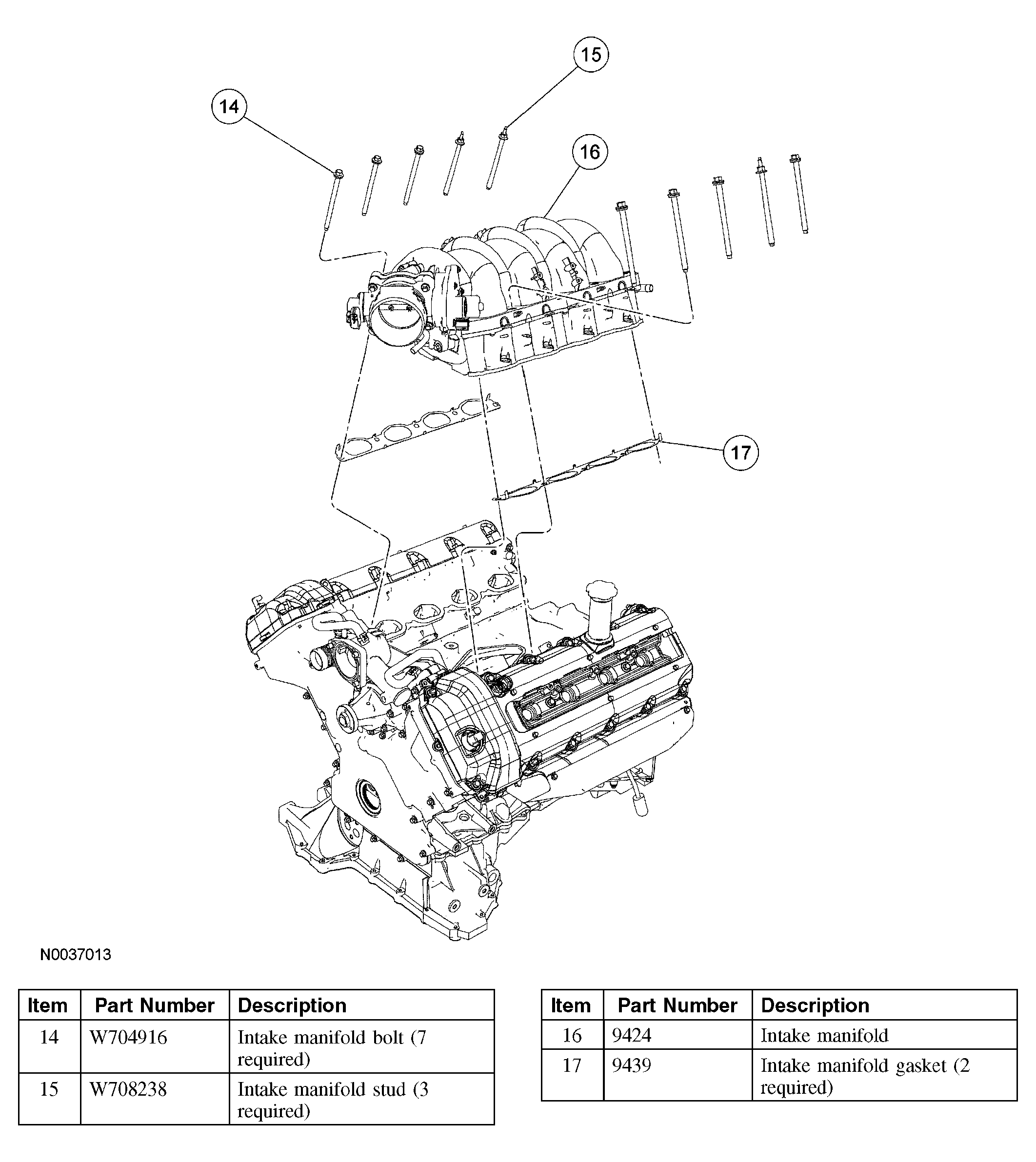

Fig 2: Identifying Components Of Intake Manifold (2 Of 4)

Courtesy of FORD MOTOR CO.

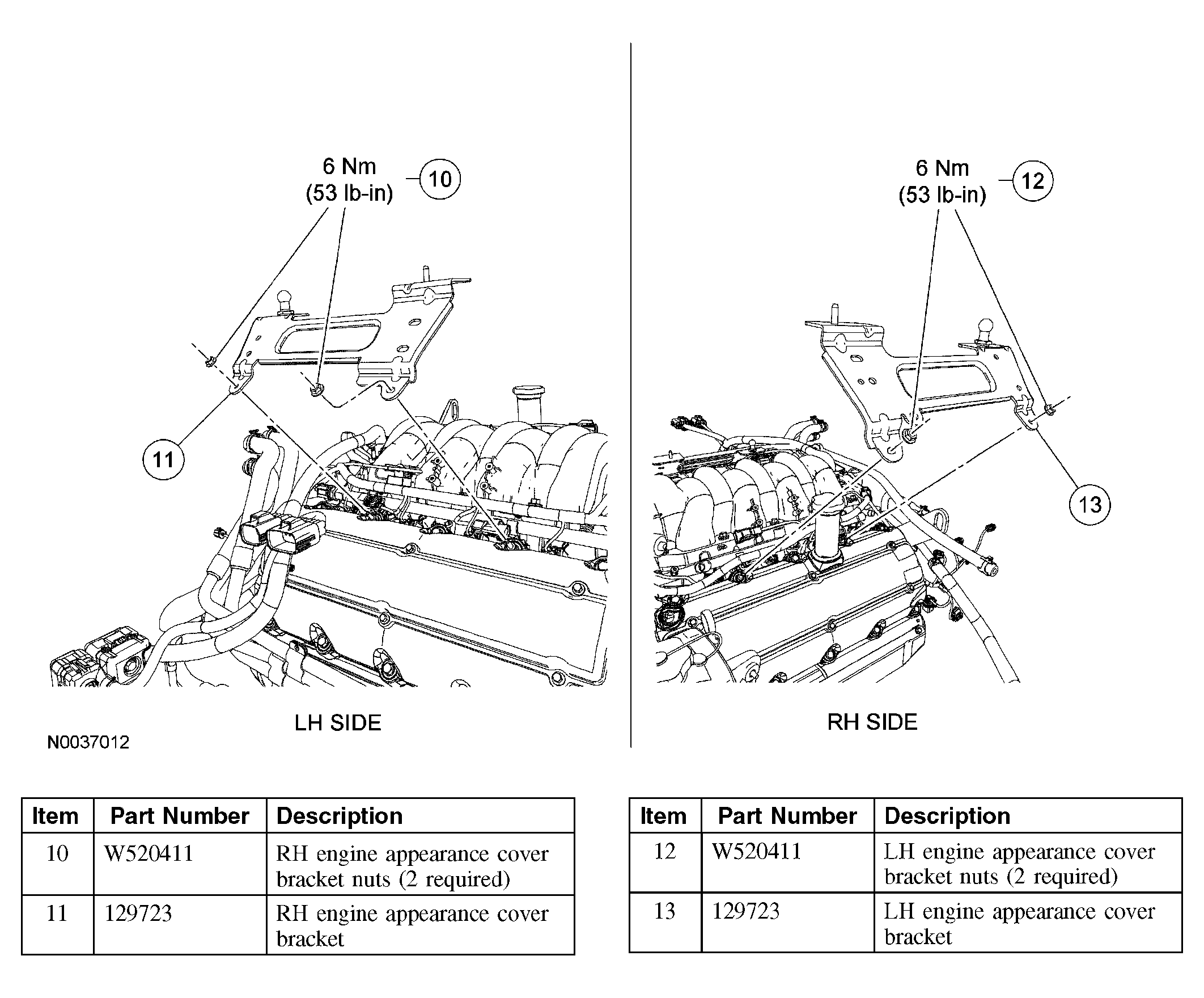

Fig 3: Identifying Components Of Intake Manifold (3 Of 4)

Courtesy of FORD MOTOR CO.

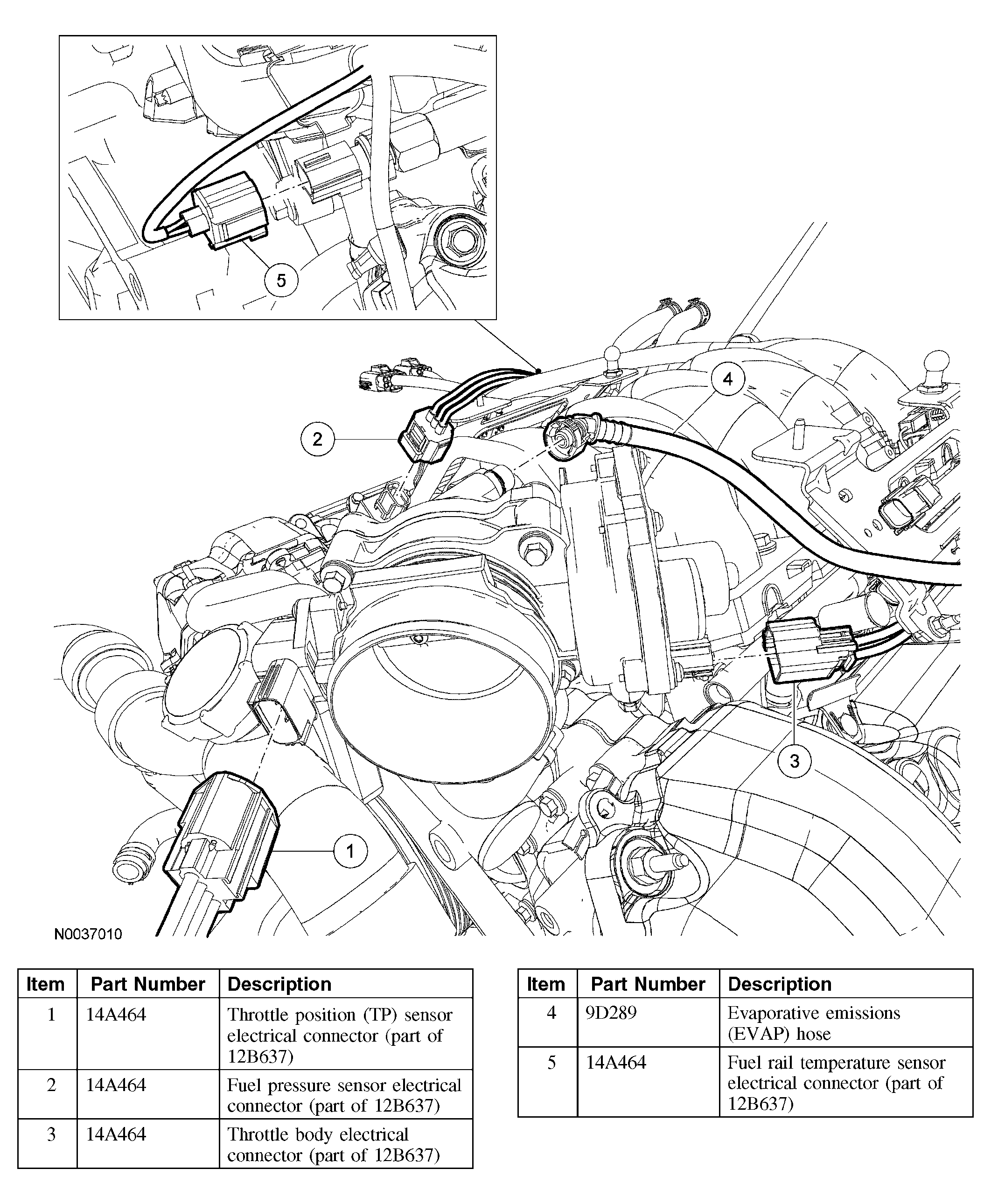

Fig 4: Identifying Components Of Intake Manifold (4 Of 4)

Courtesy of FORD MOTOR CO.
