System Air Flow: Off

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

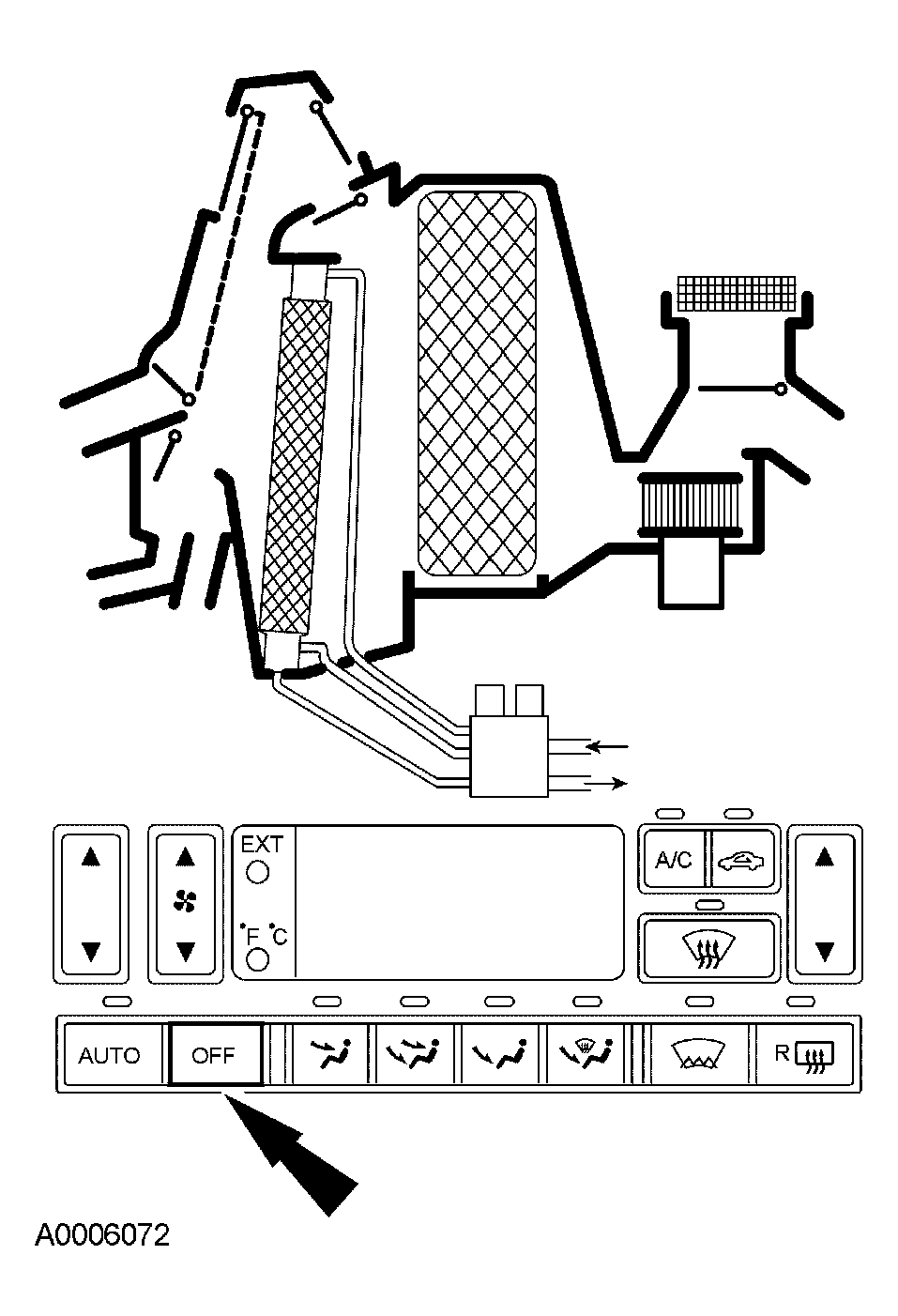

Fig 1: Identifying System Air Flow - With OFF Switch Selected

Courtesy of FORD MOTOR CO.

When OFF is selected:

The air inlet door actuator positions the air inlet door to close off outside air from entering the passenger compartment.
The floor door actuator positions the floor door in the OPEN position, and the panel door actuator, defrost door actuator, position the panel door and defrost door in the CLOSED position. This closes off airflow to the defrost duct, the side window demisters and the instrument panel A/C registers.
The dual coolant control valve is in the CLOSED position, preventing the flow of hot coolant to the heater core.
The blower motor is OFF.
