Driver Climate Controlled Seat Module C3031a

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

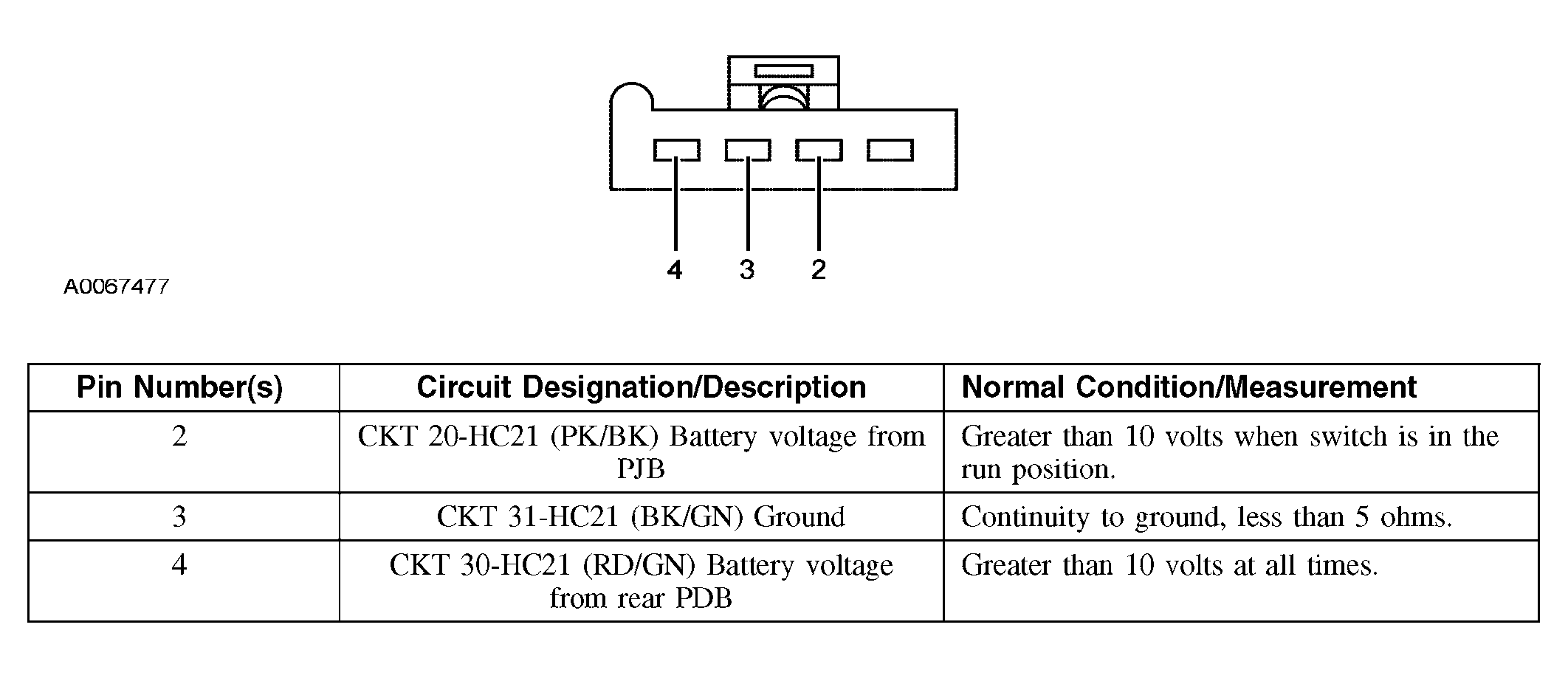

Fig 1: Identifying Driver Climate Controlled Seat Module C3031a Connector Pins

Courtesy of FORD MOTOR CO.
