Driver Door Module (DDM) C501a

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

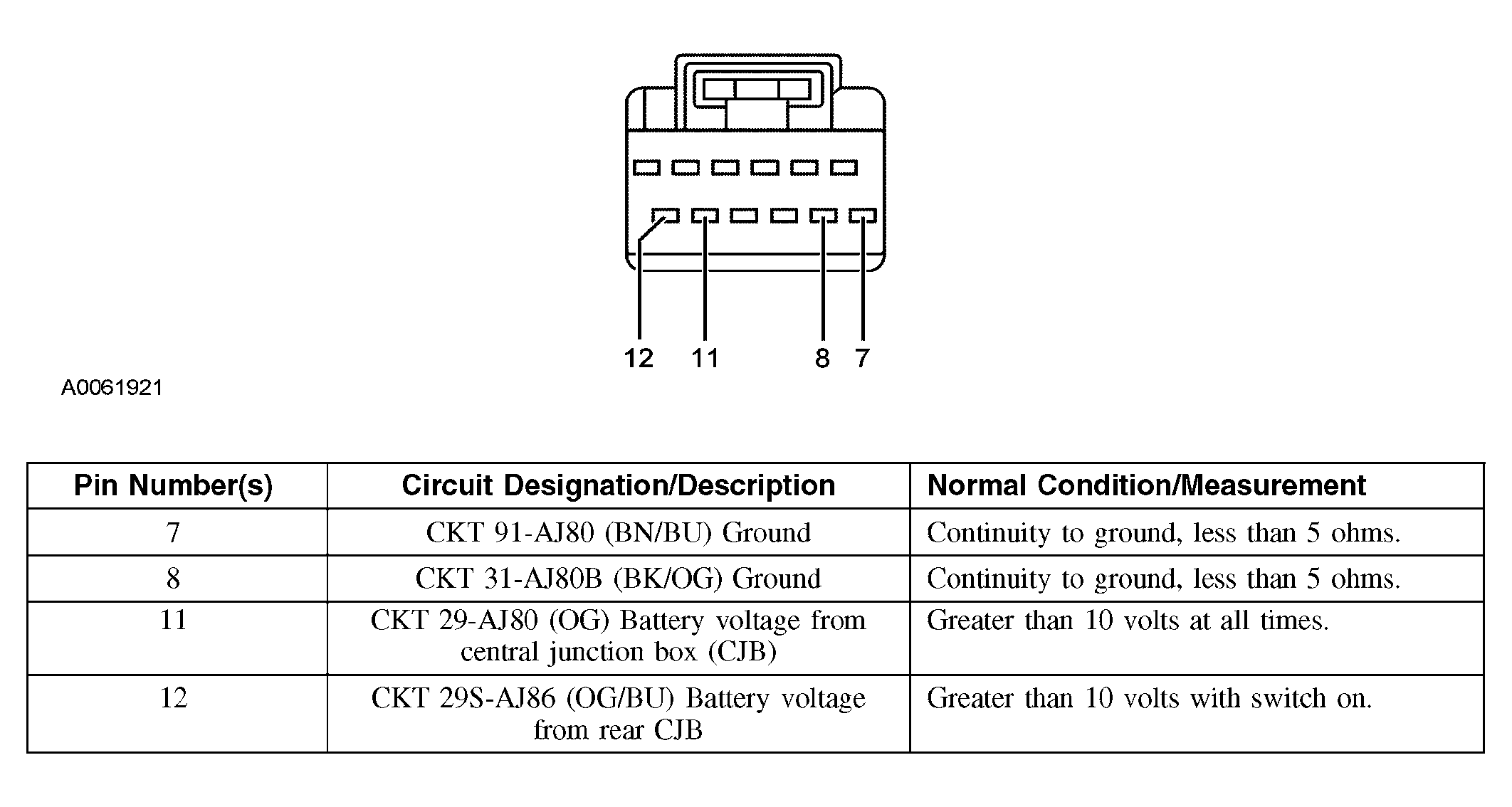

Fig 1: Identifying Driver Door Module (DDM) C501a Connector Pins

Courtesy of FORD MOTOR CO.
