Air Spring: Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air spring.
    1. Position the air spring assembly in the frame seat.
    2. Install the spring retainer clip.
  2. Seat the bottom of the air spring on the rear axle.

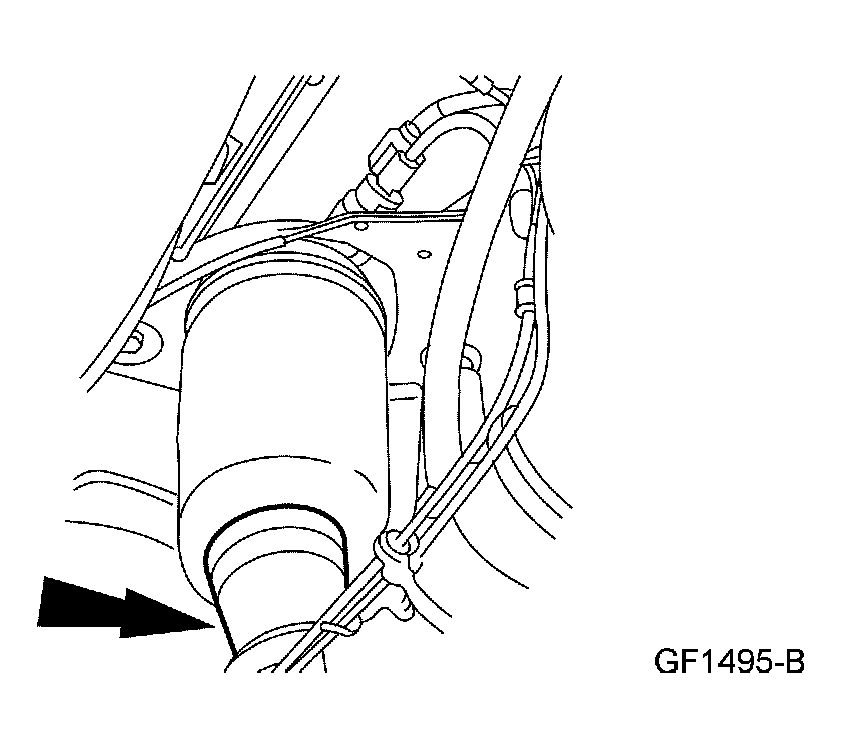

    Fig 1: Installing Air Spring On Rear Axle
    G04582789Courtesy of FORD MOTOR CO.
    3. NOTE: When installing the air lines, make sure the white air line is fully inserted into the fitting for correct installation.
  3. Connect the air spring solenoid valve.
    1. Connect the air spring electrical connector.
    2. Connect the air line.
    3. Make sure air spring is in the correct shape.
    4. CAUTION: To avoid damage to the air spring, do not allow suspension to compress before the spring is inflated.
  4. Lower the vehicle until the wheel and tire assemblies are slightly above the ground.
  5. Using the diagnostic tool, inflate the air springs.
