Power Steering Pump: Notes

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

G04583252
Installer Set, Teflon® Seal
211-D027 (D90P-3517-A) or equivalent
MATERIAL SPECIFICATIONS

Item Specification
MERCON® Multi-Purpose ATF Transmission Fluid XT-2-QDX MERCON®

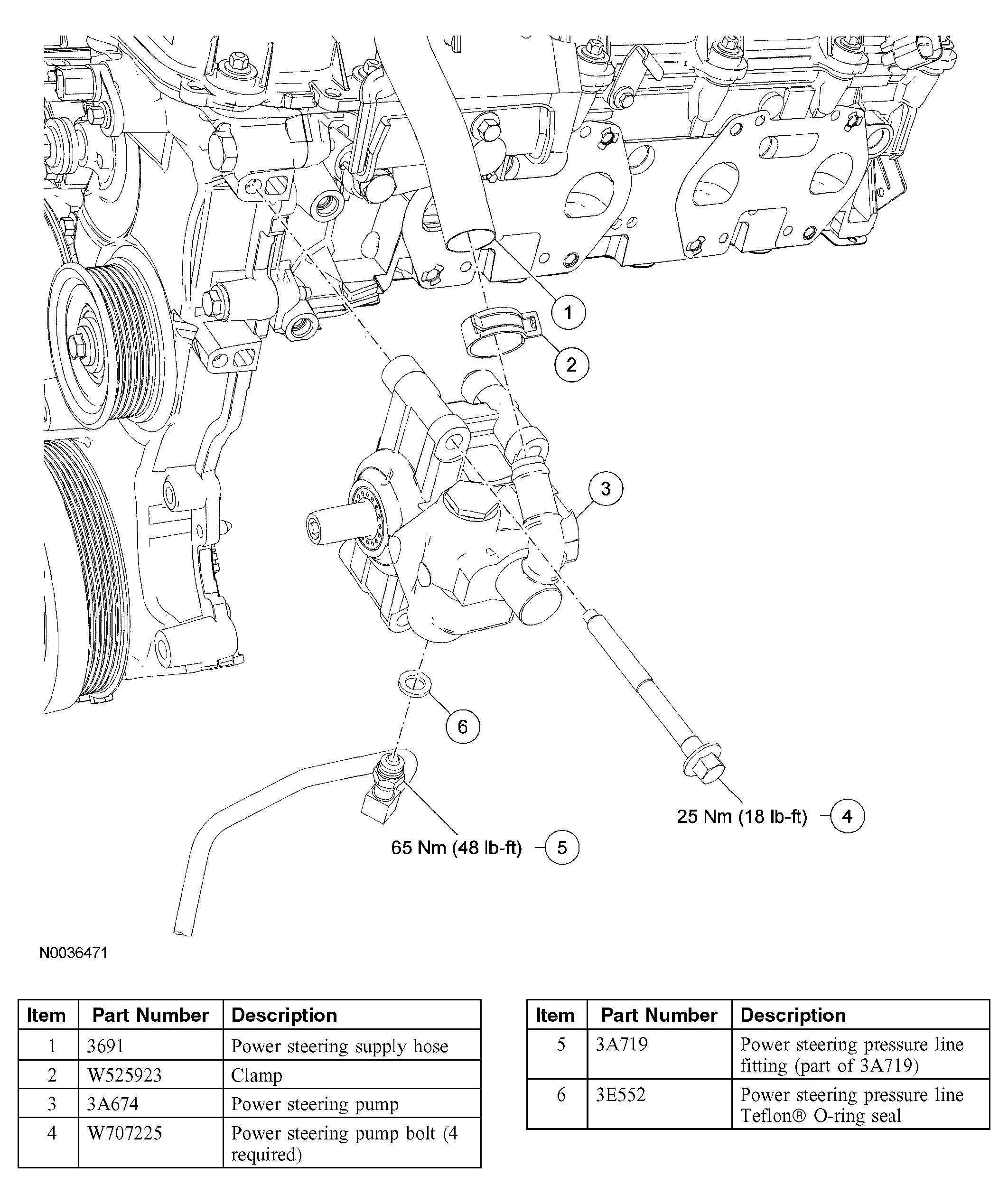

Fig 1: Identifying Power Steering Pump Components
G04583253Courtesy of FORD MOTOR CO.
