2-3 Accumulator: Removal

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .

Remove the main control valve body. For additional information, refer to MAIN CONTROL VALVE BODY .
Remove the 2-3 accumulator piston retainer.

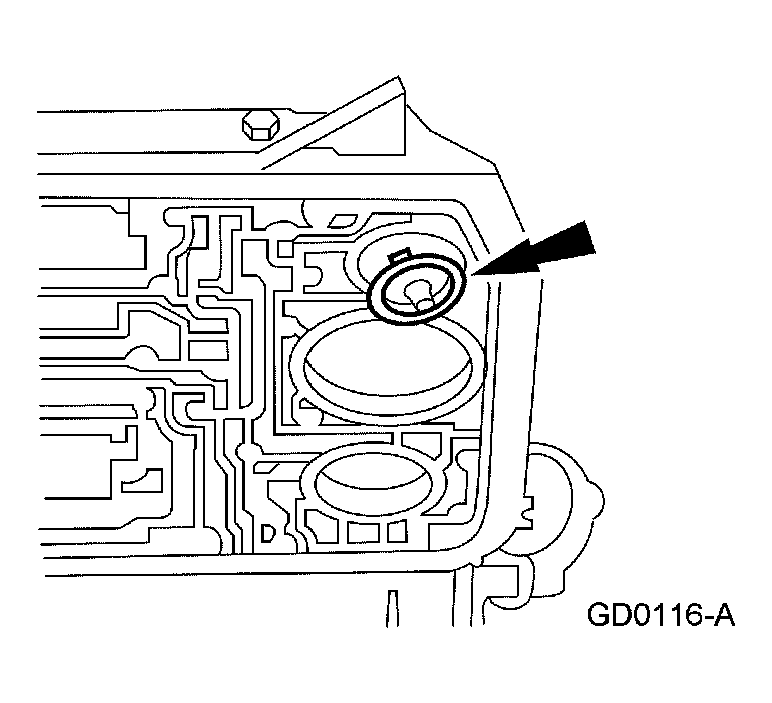

Fig 1: Removing 2-3 Accumulator Piston Retainer
Courtesy of FORD MOTOR CO.
Remove the accumulator piston and spring.

Fig 2: Removing Accumulator Piston And Spring
Courtesy of FORD MOTOR CO.
