Digital Transmission Range (TR) Sensor: Removal

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Disconnect the selector lever cable.

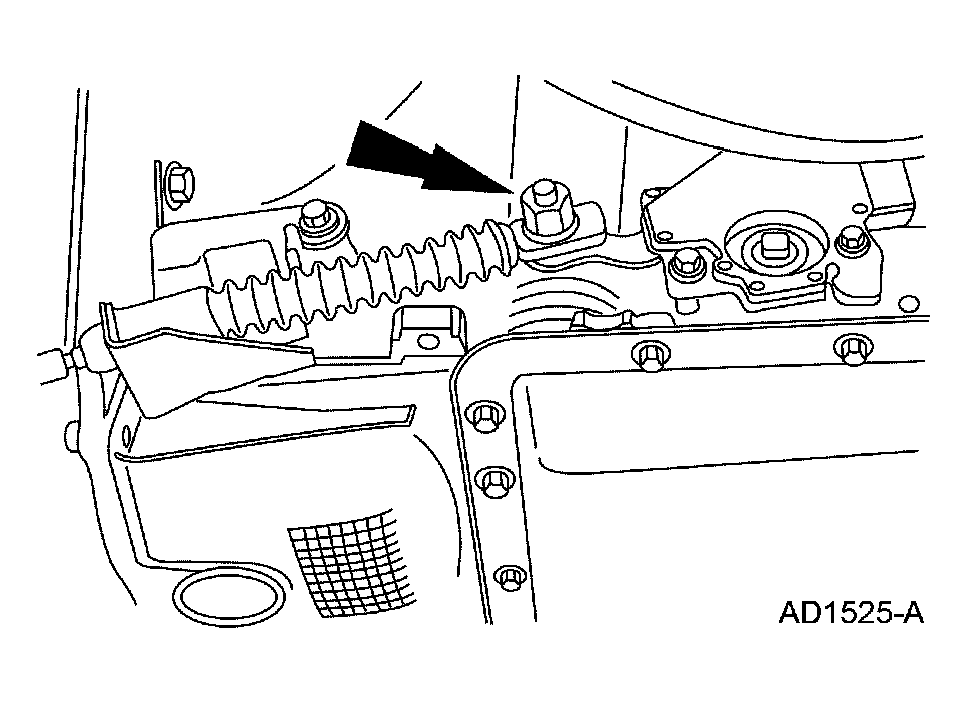

Fig 1: Disconnecting Selector Lever Cable
Courtesy of FORD MOTOR CO.
Disconnect the digital transmission range (TR) sensor connector.

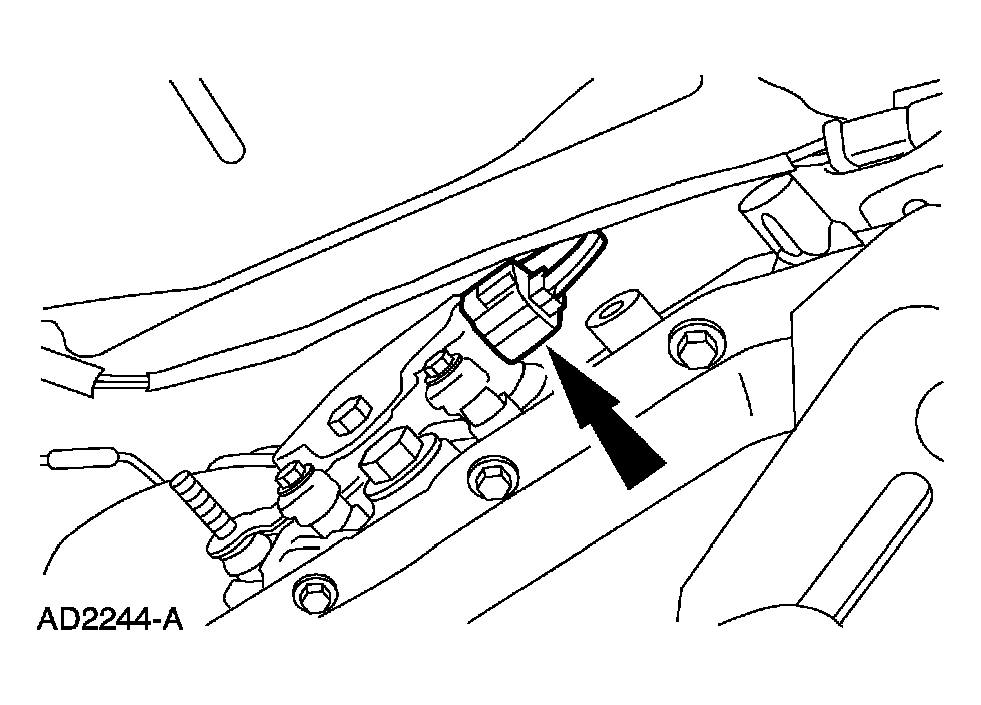

Fig 2: Disconnecting Digital Transmission Range (TR) Sensor Connector
Courtesy of FORD MOTOR CO.
Remove the bolts and remove the digital TR sensor.

Fig 3: Removing Bolts And Digital TR Sensor
Courtesy of FORD MOTOR CO.
