Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Remove the upper radiator sight shield.
Disconnect the electrical connector.

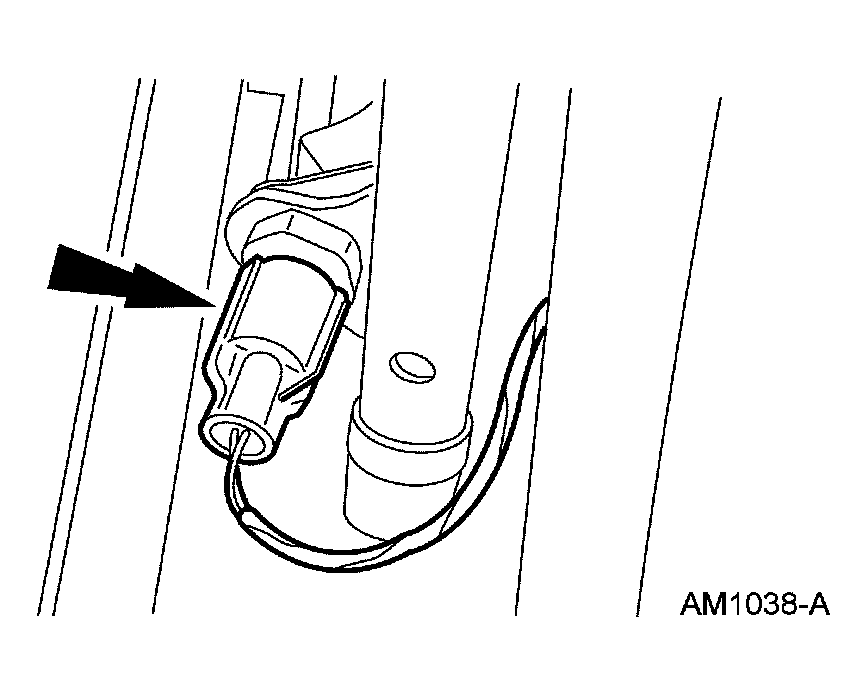

Fig 1: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the ambient air temperature sensor.

Fig 2: Removing Ambient Air Temperature Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
