Torsion Bar Loading

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Safety glasses must be worn when carrying out this operation. Failure to follow these instructions may result in personal injury.
    NOTE: The luggage compartment lid tension should be decreased if the luggage compartment lid opens with more force than desired. The luggage compartment lid tension should be increased if the luggage compartment lid opens with less force than desired.
  1. Open and support the luggage compartment lid in the full-open position.
    2. WARNING: Use care when adjusting the luggage compartment lid torsion bar. It is under tension and could spring out of control if it is not handled correctly. Failure to follow these instructions may result in personal injury.

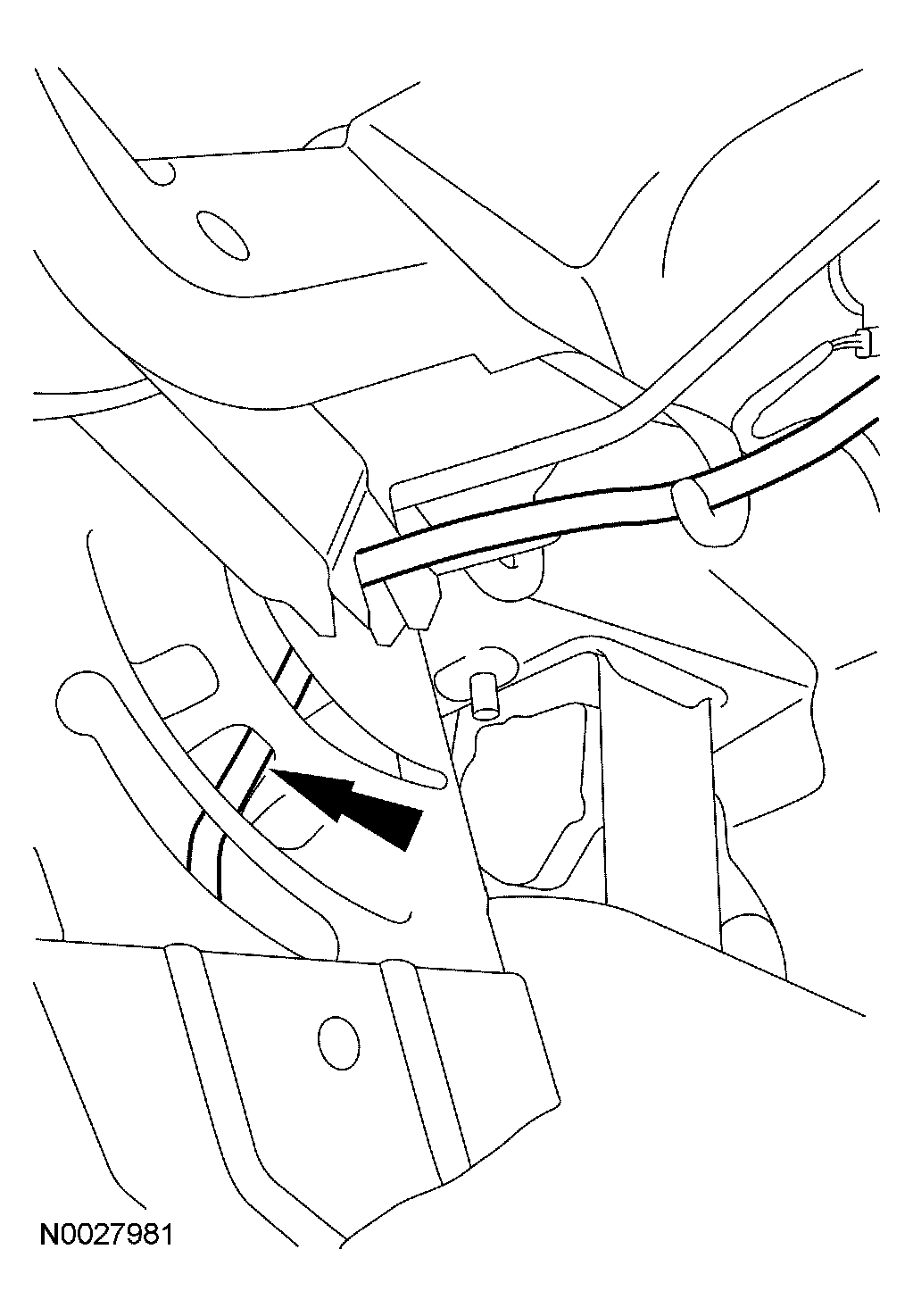

    Fig 1: Identifying Luggage Compartment Lid Torsion Bar
    G04585790Courtesy of FORD MOTOR CO.
  2. Move the luggage compartment lid end of the luggage compartment lid torsion bar to another position.
  3. Check the adjustment.
    4. WARNING: Use care when adjusting the luggage compartment lid torsion bar. It is under tension and could spring out of control if it is not handled correctly. Failure to follow these instructions may result in personal injury.
    Fig 2: Identifying Luggage Compartment Lid Torsion Bar
    G04585791Courtesy of FORD MOTOR CO.
  4. Move the luggage compartment door end of the luggage compartment lid torsion bar to another position.
