Seat - Front: Installation
WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
- Position the seat in the vehicle.

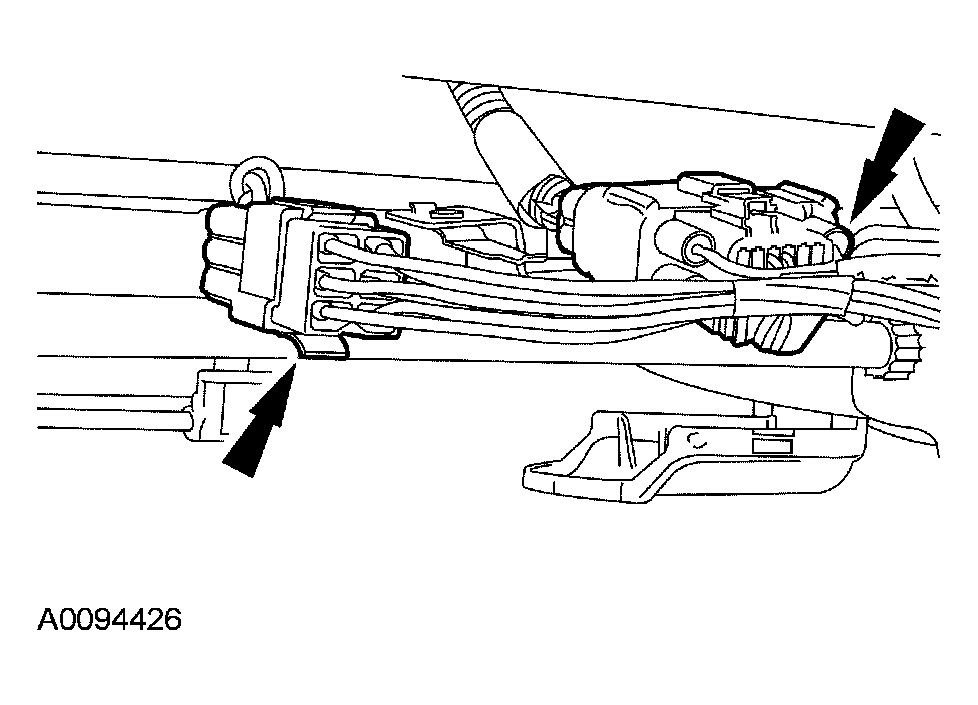

- Connect the harness relief connector and connect the electrical connectors.
- Install the inboard seat-to-floor nut.
- Tighten to 80 Nm (59 lb-ft).
- Install the outboard seat-to-floor nut.
- Tighten to 25 Nm (18 lb-ft).
- Install the 2 rear front seat track covers.
- Install the 2 seat-to-floor bolts.
- Tighten to 25 Nm (18 lb-ft).
- Install the 2 seat track front covers.
- Make sure the safety belts and buckles are accessible to the occupants after installation.
- Repower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in the General Procedures.
NOTE:
While installing and positioning the seat, make sure the safety belt anchor is positioned through the seat mounting stud.
NOTE:
Some component connectors may not exist due to vehicle options. For vehicles equipped with seat side air bags, do not remove the restraint system diagnostic tool or connect the seat side air bag electrical connector at this time.
NOTE:
Make sure the safety belt anchor is in place on the rear inboard stud before tightening the nut.
