Master window adjust switch (14529A): Terminals

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

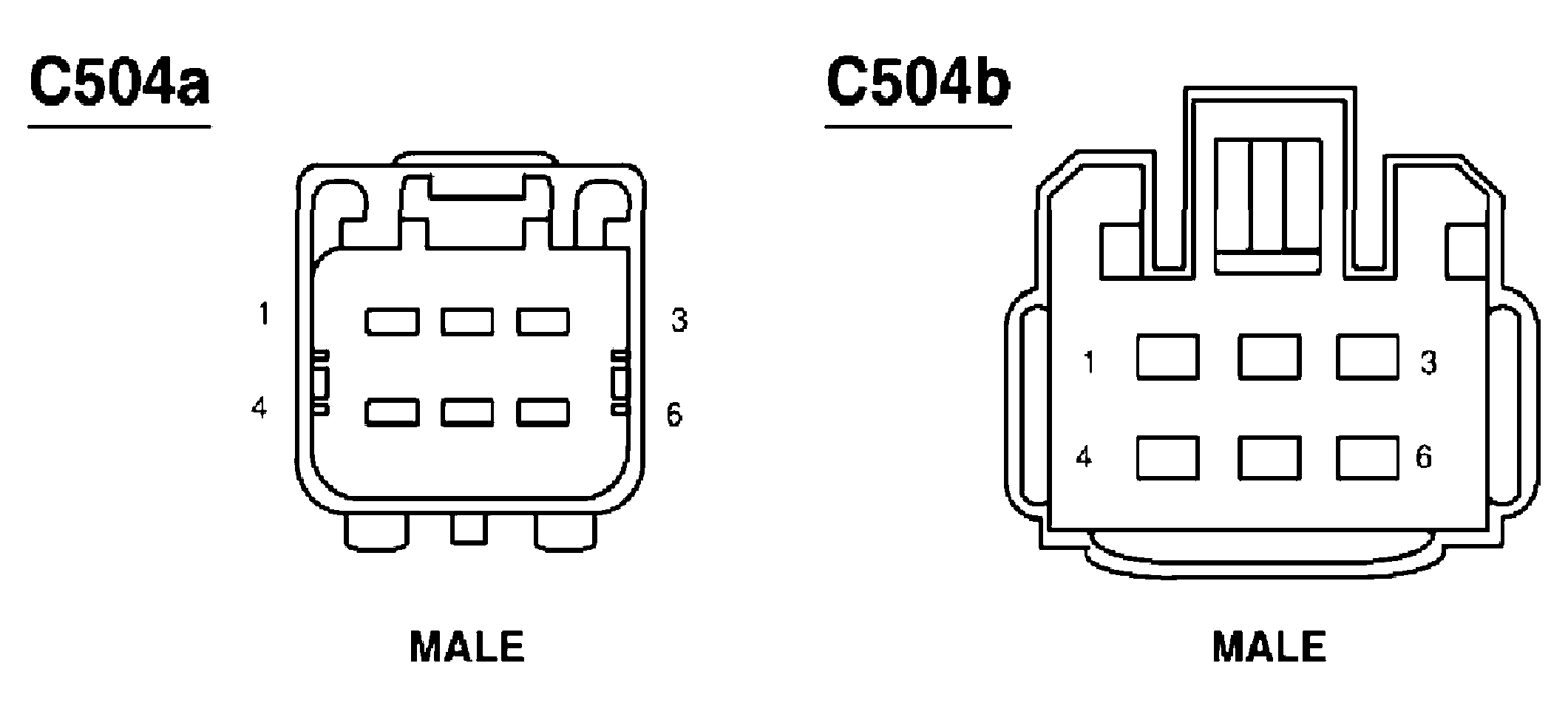

Fig 1: Identifying C504A And C504B Connector Terminals

Courtesy of FORD MOTOR CO.
