Section 1447 (Starting System)
›
Removal And Installation
›
Starter Motor - 2.3L
›
Notes
Starter Motor - 2.3L: Notes
WARNING:
This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

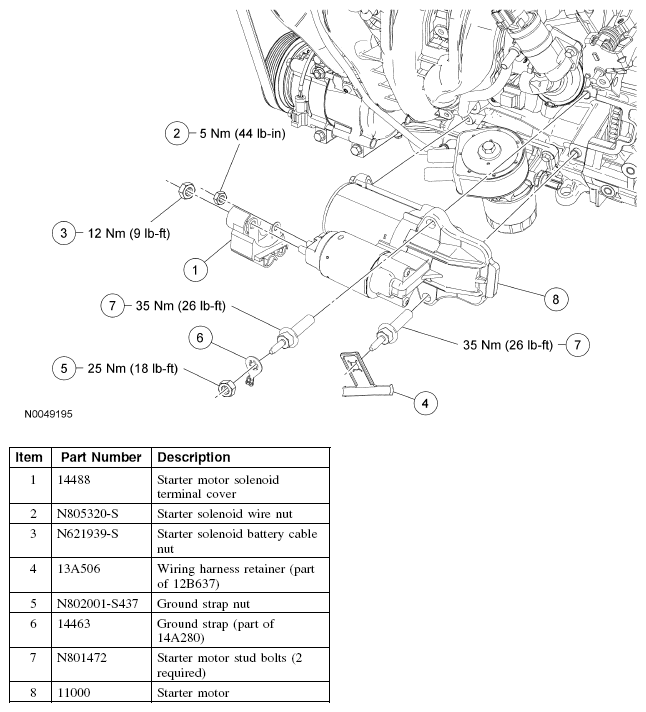

Fig 1: Starter Motor -- 2.3L With Torque Specifications
Courtesy of FORD MOTOR CO.
