SPECIAL TOOL(S) SPECIFICATION
Courtesy of FORD MOTOR CO.
Alignment Pins, Valve Body 307-299 (T94P-77000-N)

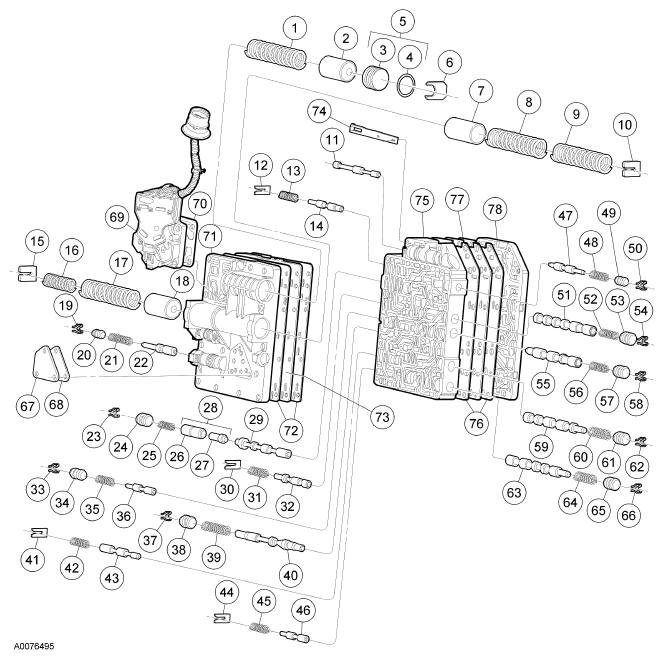

Fig 1: Exploded View Of Main Control Valve Body Components
Courtesy of FORD MOTOR CO.

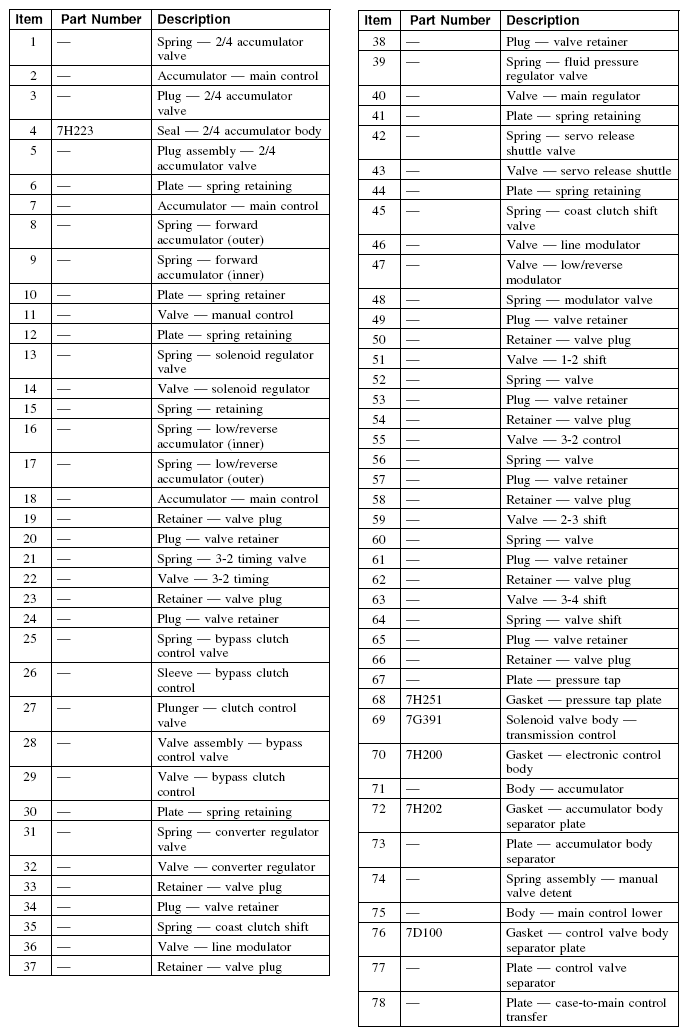

Fig 2: Main Control Valve Body Components Description Table
