Pump Assembly: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

G04620352Courtesy of FORD MOTOR CO.
Alignment Pins, Transmission Main Control Body
307-127 (T94P-77000-P)
G04620353Courtesy of FORD MOTOR CO.
Depth Micrometer
303-D026 (D80P-4201-A)
G04620354Courtesy of FORD MOTOR CO.
Shim Selection Gauge
307-300 (T94P-77000-Q)
MATERIAL

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) MERCON® V

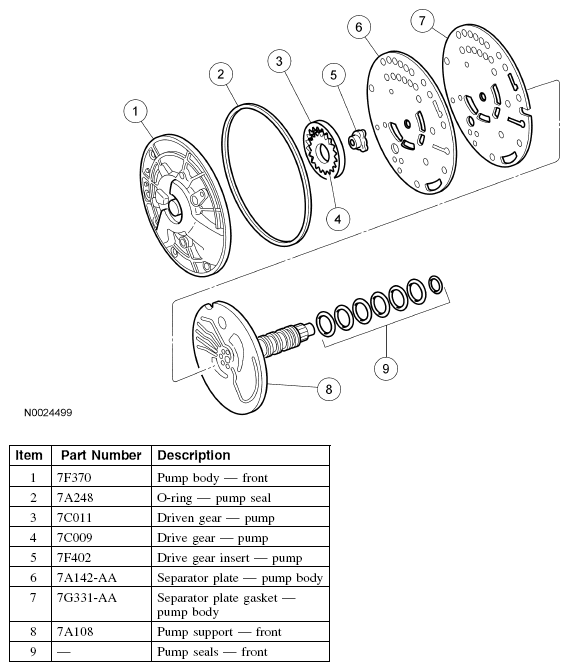

Fig 1: Exploded View Of Pump Assembly Components
G04620355Courtesy of FORD MOTOR CO.
