Headlamp Assembly: Notes

WARNING: This page is about a different car, the 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Aerodynamic

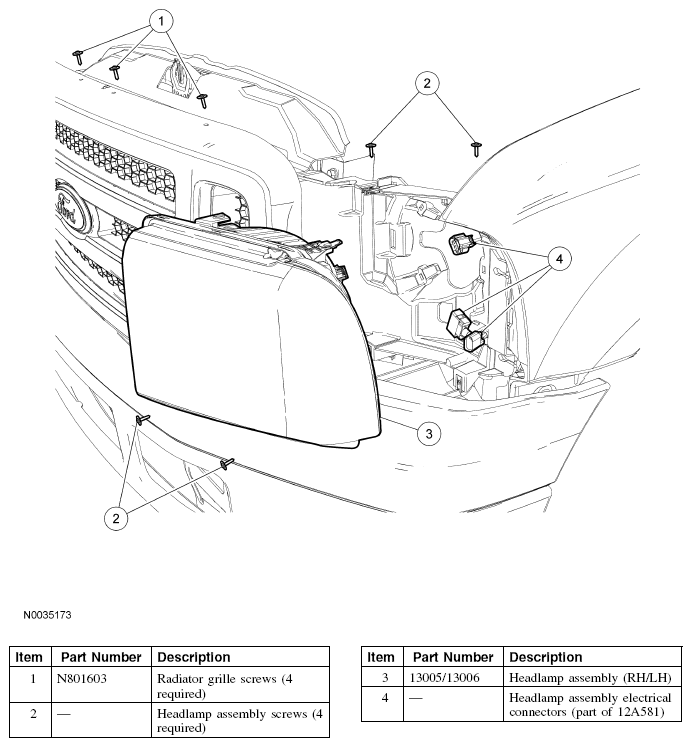

Fig 1: Identifying Headlamp Assembly Components - Aerodynamic

Courtesy of FORD MOTOR CO.

Sealed Beam

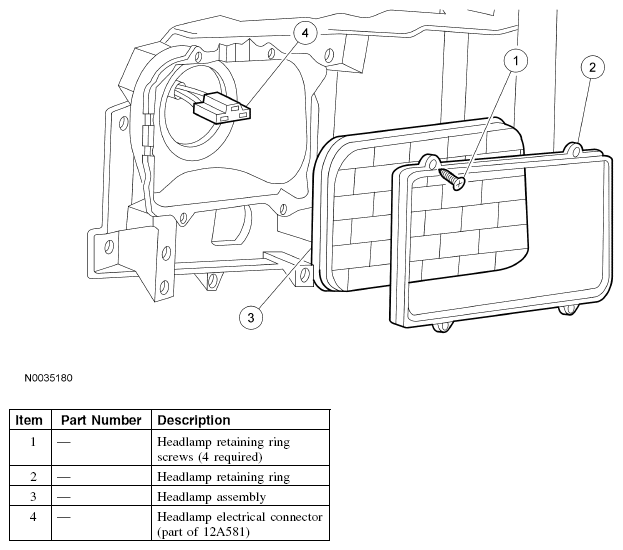

Fig 2: Identifying Headlamp Assembly Components - Sealed Beam

Courtesy of FORD MOTOR CO.
