Power Steering Pump: Notes

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

G04655527Courtesy of FORD MOTOR CO.
Installer Set, Teflon® Seal 211-D027 (D90P-3517-A) or equivalent
MATERIAL

Item Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) MERCON®

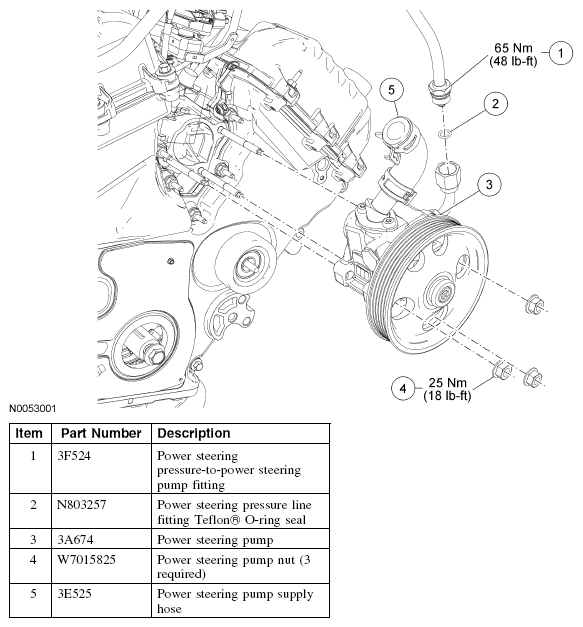

Fig 1: Power Steering Pump Replacement Components With Torque Specifications
G04655528Courtesy of FORD MOTOR CO.
