Seat - Exploded View, Second Row, Freestyle

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

Freestyle Rear Seat Backrest, Second Row, 40 Percent

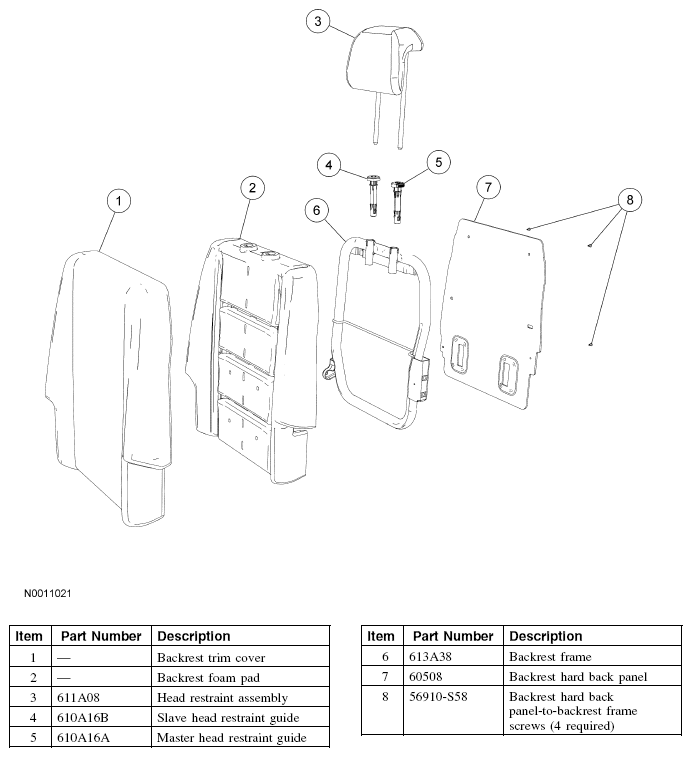

Fig 1: Freestyle Rear Seat Backrest, Second Row, 40 Percent Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Freestyle Rear Seat Cushion, Second Row, 40 Percent

NOTE: Both seat riser and seat track are shown.

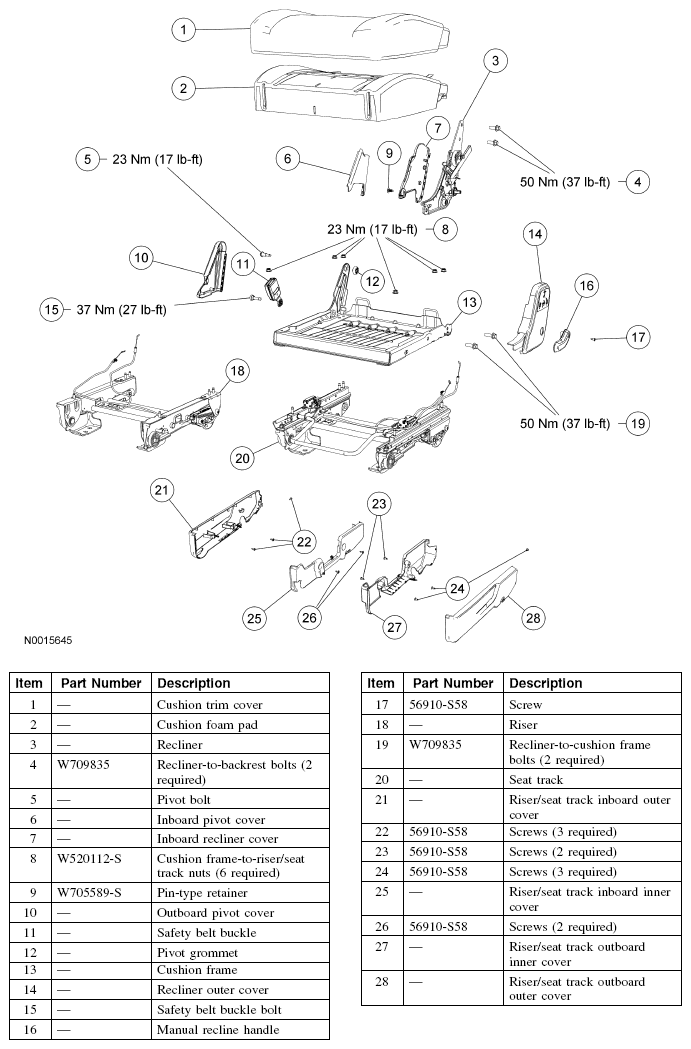

Fig 2: Freestyle Rear Seat Cushion, Second Row, 40 Percent Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Freestyle Rear Seat Backrest, Second Row, 60 Percent

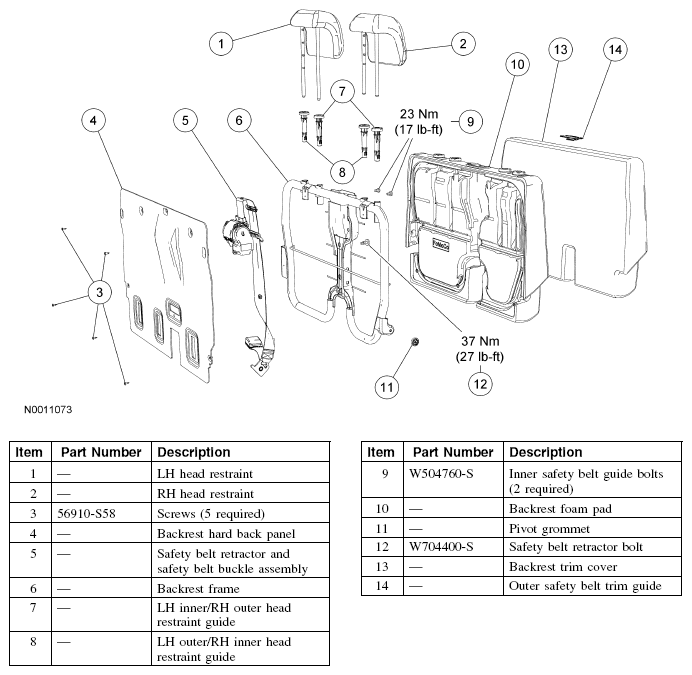

Fig 3: Freestyle Rear Seat Backrest, Second Row, 60 Percent Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Freestyle Rear Seat Cushion, Second Row, 60 Percent

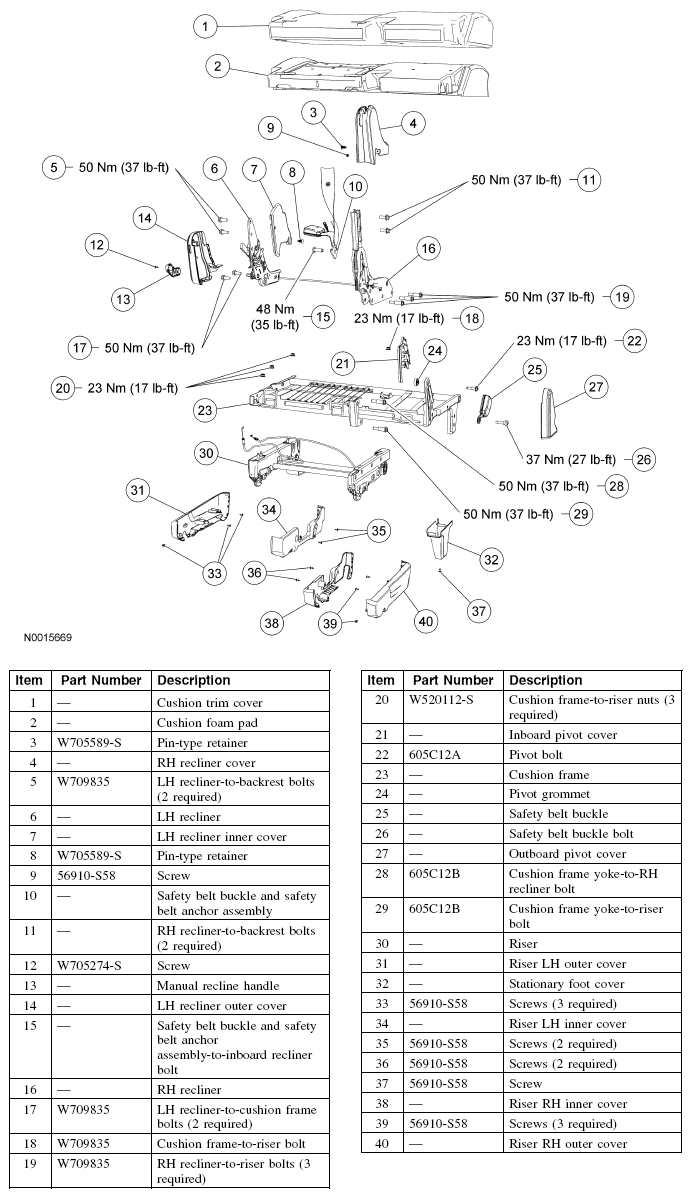

Fig 4: Freestyle Rear Seat Cushion, Second Row, 60 Percent Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

For additional information, refer to the appropriate procedure.
