Global Positioning System (GPS) Antenna: Notes

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The passenger air bag module has been removed for clarity.

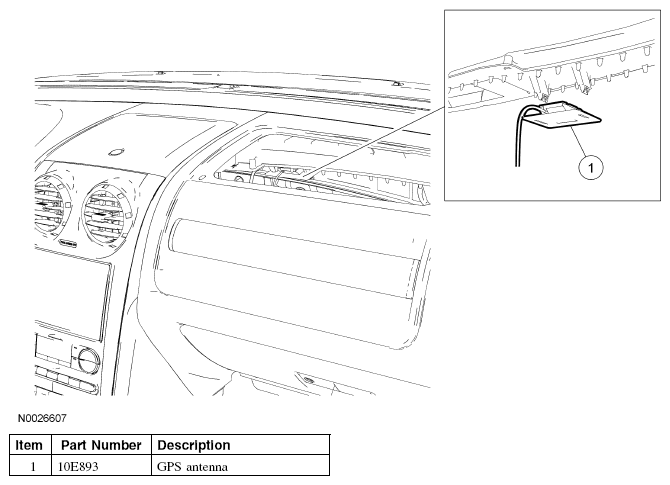

Fig 1: Identifying Global Positioning System (GPS) Antenna Components

Courtesy of FORD MOTOR CO.
