Wheel Knuckle: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

G04679676Courtesy of FORD MOTOR CO.
Remover, Front Hub
205-D070 (D93P-1175-B) or equivalent
G04679677Courtesy of FORD MOTOR CO.
Remover, Steering Arm
211-003 (T64P-3590-F)
G04679678Courtesy of FORD MOTOR CO.
Remover, Tie-Rod End
211-105 (T85M-3395-A)
G04679679Courtesy of FORD MOTOR CO.
Separator, Ball Joint
204-592
G04679680Courtesy of FORD MOTOR CO.
Adapter for 204-592
204-592/1
G04679681Courtesy of FORD MOTOR CO.
Installer, Halfshaft
204-161 (T97P-1175-A)

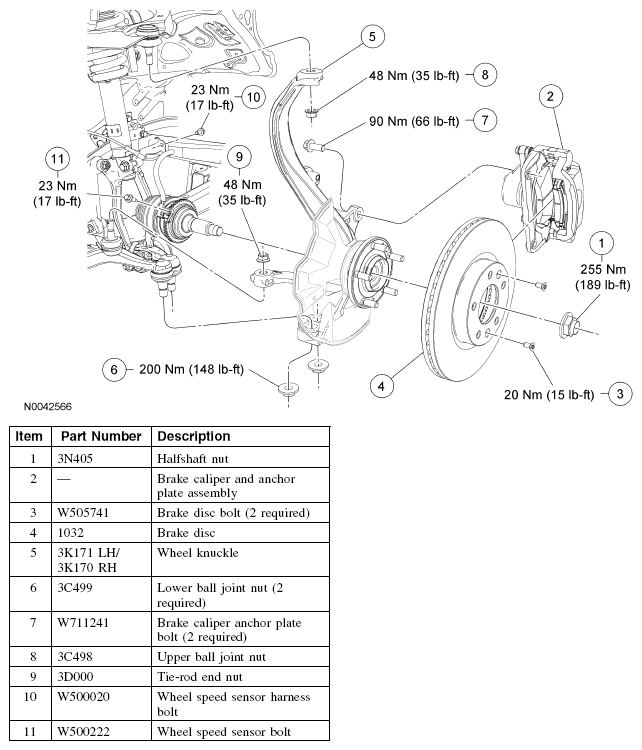

Fig 1: Wheel Knuckle, Brake Disc And Brake Caliper With Torque Specifications
G04679682Courtesy of FORD MOTOR CO.
