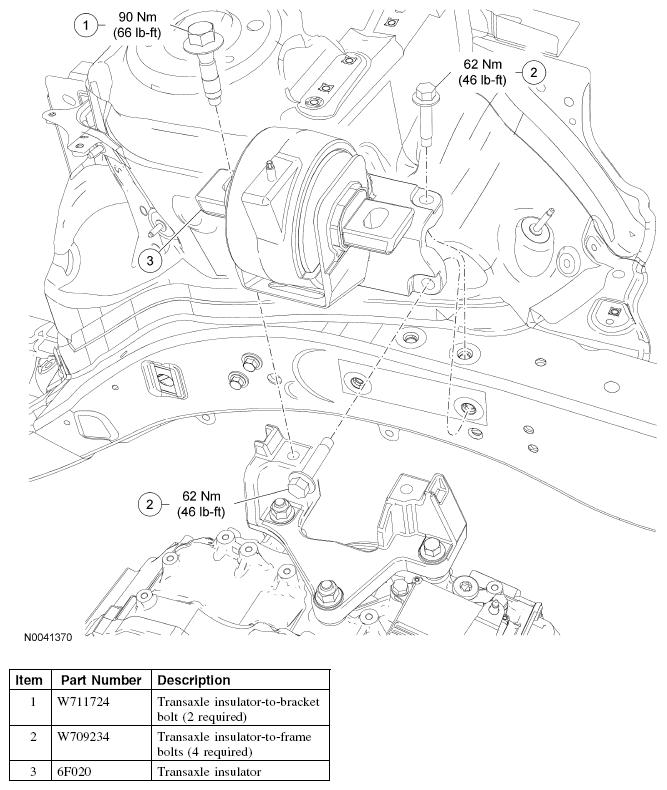

Transaxle Support Insulator: Notes
WARNING: This page is about a different car, the 2006 Mercury Milan and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL
|
|
Lifting Bracket, Engine
303-050 (T70P-6000) |
|
|
Support Bar, Engine
303-290A |
|
|
Adapters for 303-290
303-290-01 |
|
|
Adapter for 303-290A (Support Leg)
303-290A-03A |
|
|
Adapter for 303-290A (Lifting Hook)
303-290A-12 |
MATERIAL
| Item |
Specification |
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |
Courtesy of FORD MOTOR CO.
