Section 1767 (Automatic Transaxle/Transmission - FNR5)
›
In-Vehicle Repair
›
Transmission Control Module (TCM)
›
Notes
Transmission Control Module (TCM): Notes
WARNING:
This page is about a different car, the 2006 Mercury Milan and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

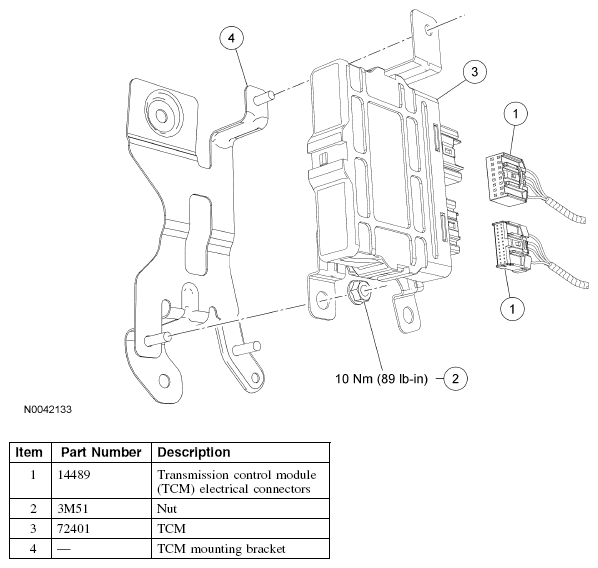

Fig 1: Transmission Control Module (TCM) With Torque Specifications
Courtesy of FORD MOTOR CO.
