Audio Amplifier: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: One amplifier is shown, the other is similar.

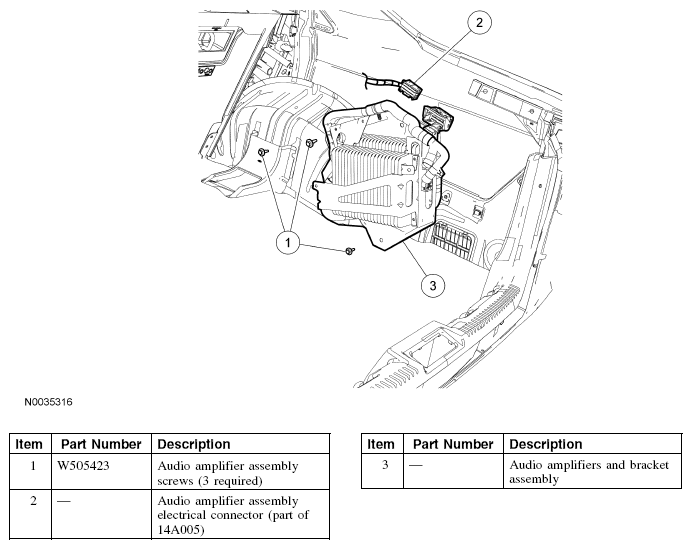

Fig 1: Identifying Audio Amplifier Components (1 Of 2)
G04682765Courtesy of FORD MOTOR CO.

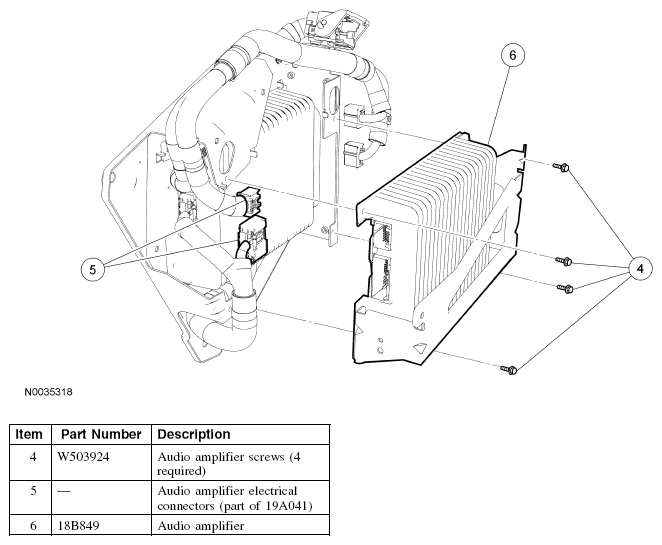

Fig 2: Identifying Audio Amplifier Components (2 Of 2)
G04682766Courtesy of FORD MOTOR CO.
