Anti-Lock Brake System

WARNING: This page is about a different car, the 1993 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

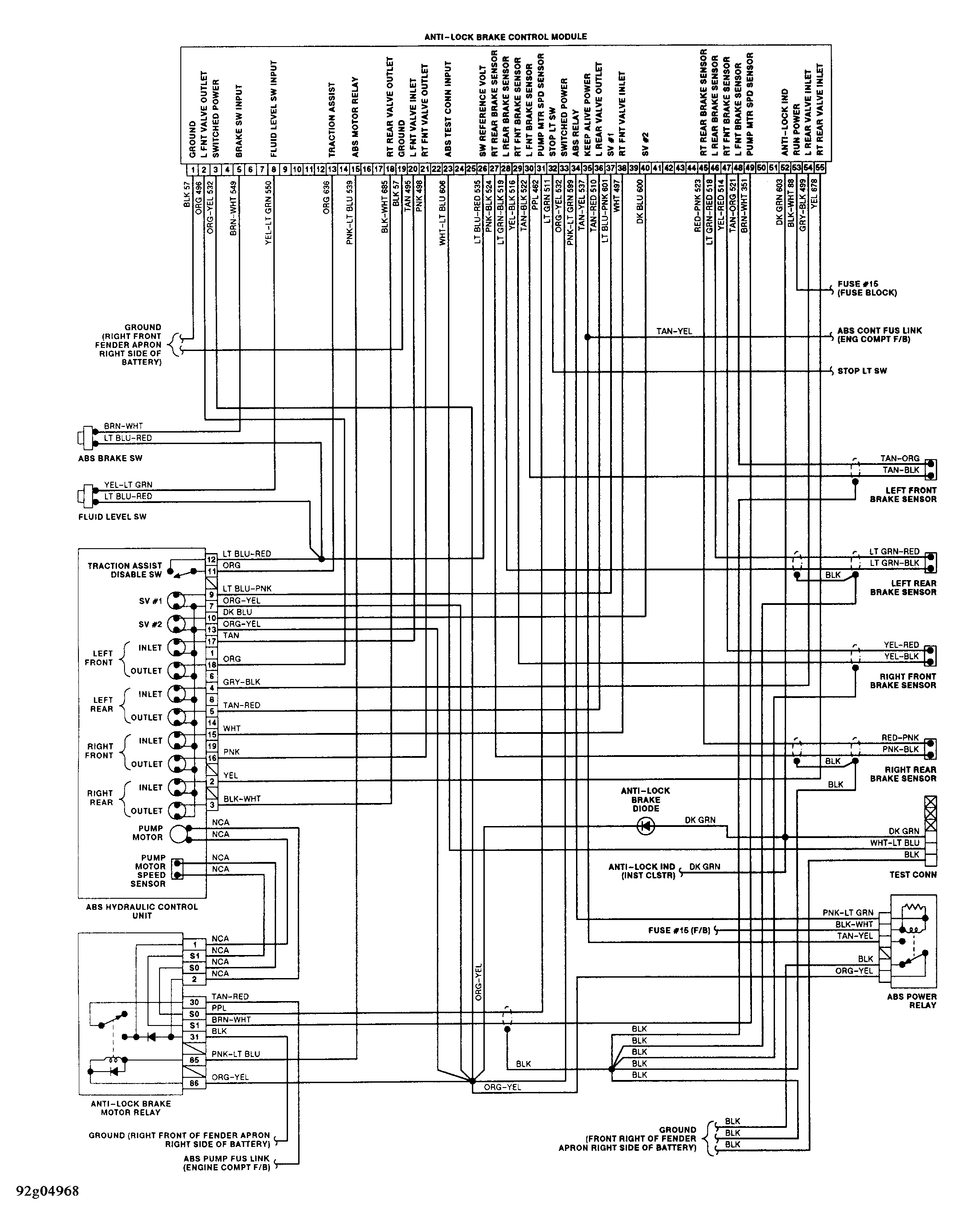

Fig 1: ABS Wiring Diagram
G92G04968

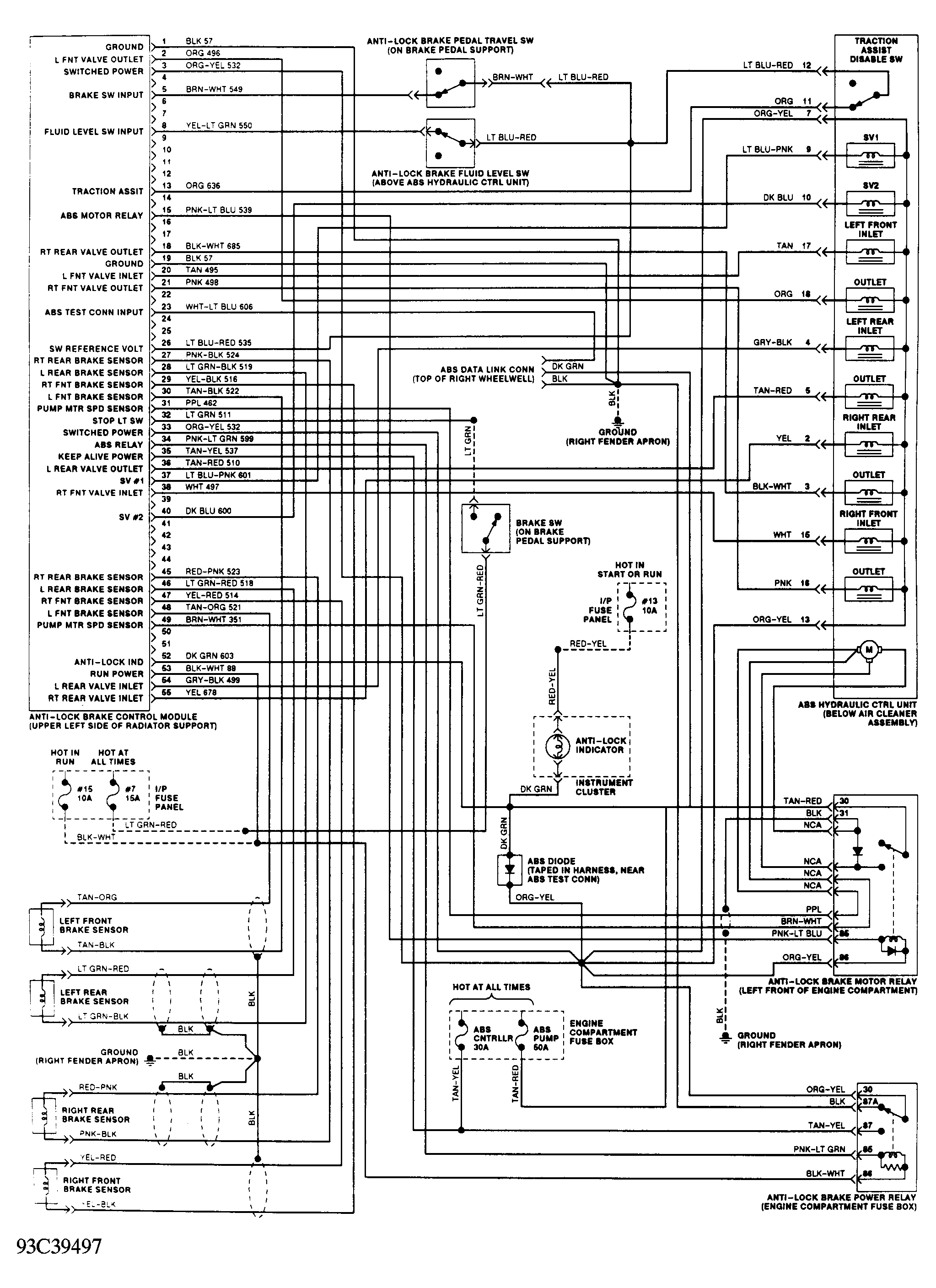

Fig 2: ABS Wiring Diagram
G93C39497
