Door Lock Control Switch: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

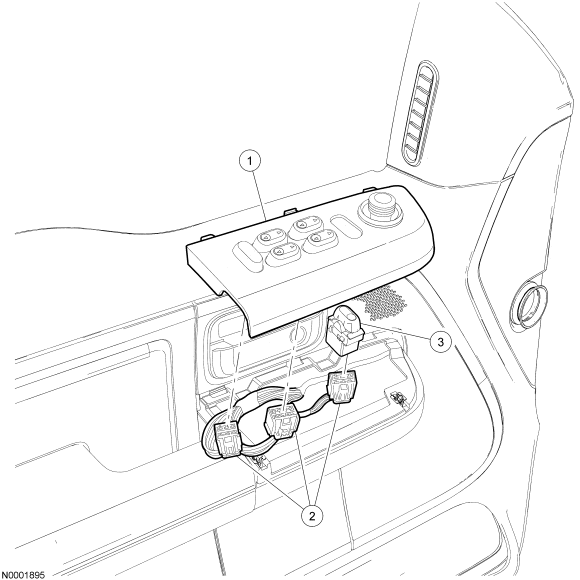

LH side shown, RH side similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
SP7814 |
Switch plate cover |
| 2 |
- |
Switch plate electrical connectors (part of 14A488) |
| 3 |
14028 |
Door lock control switch |
