Section 2008 (Climate Control)
›
Removal And Installation
›
Register Duct - Center
›
Notes
Register Duct - Center: Notes
WARNING:
This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

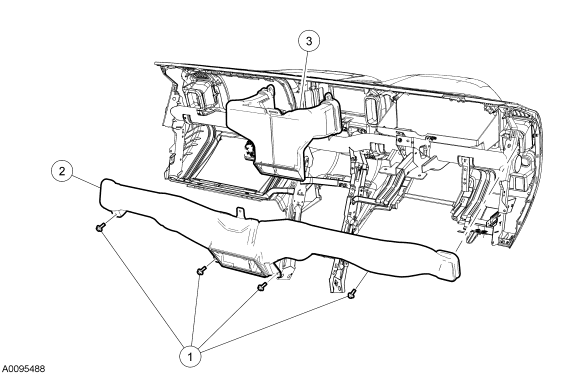

Fig 1: Exploded View Of Center Register Duct
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
W707628
Side register duct screws (6 required)
2
19B680
Side register duct
3
-
Center register duct
