Fuel Injectors: Notes

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Smoking or open flame of any type must not be present when working near fuel or fuel vapor. Fuel in the fuel system remains under high pressure even when the engine is not running. Before repairing or disconnecting any of the fuel lines or fuel system components, the fuel system pressure must be relieved to prevent accidental spraying of fuel, causing personal injury or a fire hazard. See FUEL SYSTEM PRESSURE RELEASE . Clean all fuel residue from engine compartment. Failure to do so can cause personal injury or damage to the vehicle.

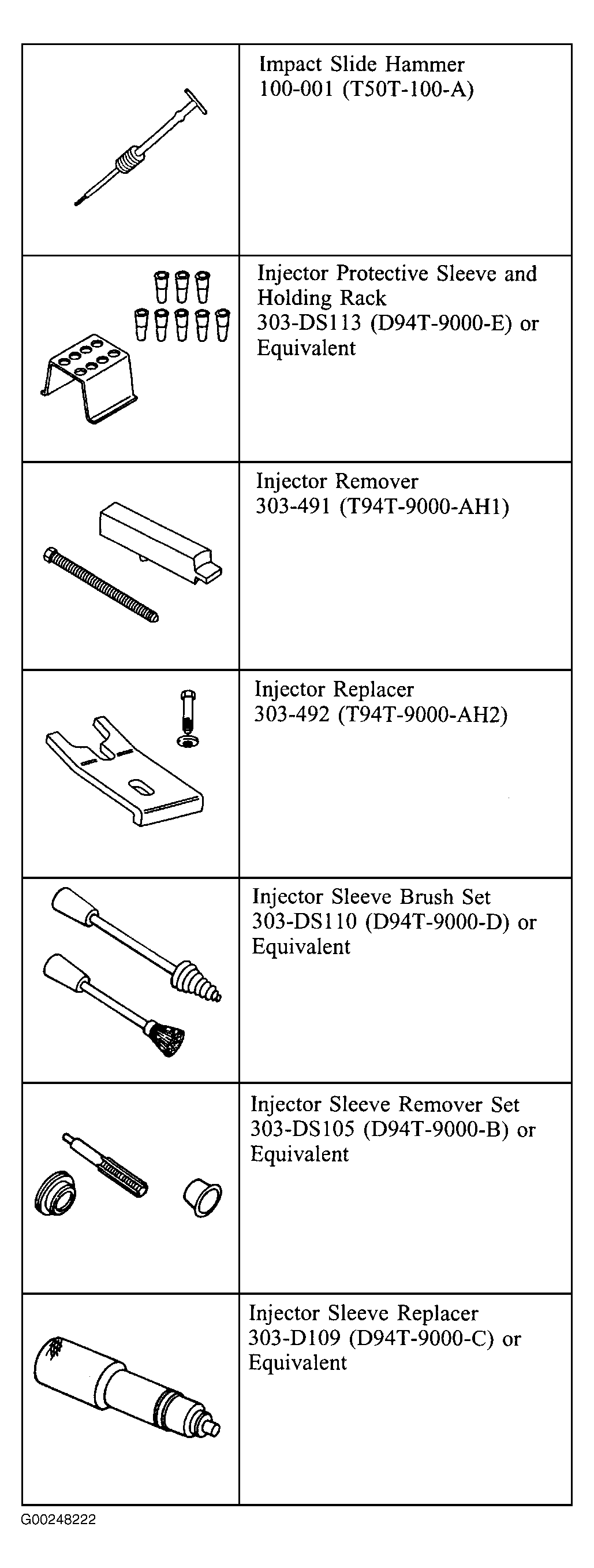

NOTE: Impact Slide Hammer 100-001 (T50T-100-A), Injector Protective Sleeve and Holding Rack 303-DS113 (D94T-9000-E), Injector Remover Fulcrum 303-491 (T94T-9000-AH1), Injector Replacer 303-492 (T94T-9000-AH2), Injector Sleeve Brush Set 303-DS110 (D94T-9000-D), Injector Sleeve Remover Set 303-DS105 (D94T-9000-B) and Injector Sleeve Replacer 303-D109(D94T-9000-C) are required to perform this procedure. See Figure .
