Inner Tie Rod: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

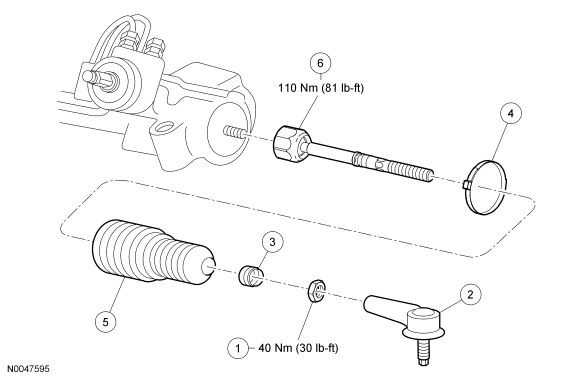

| Item |
Part Number |
Description |
| 1 |
W700318 |
Tie-rod end jam nut |
| 2 |
3289-GA |
Outer tie-rod end |
| 3 |
3C650B |
Tie-rod boot clamp, outer |
| 4 |
3C650A |
Tie-rod boot clamp, inner |
| 5 |
3K661 |
Tie-rod boot |
| 6 |
3280 |
Inner tie-rod |
