Power Steering Fluid Reservoir: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) |
MERCON® |

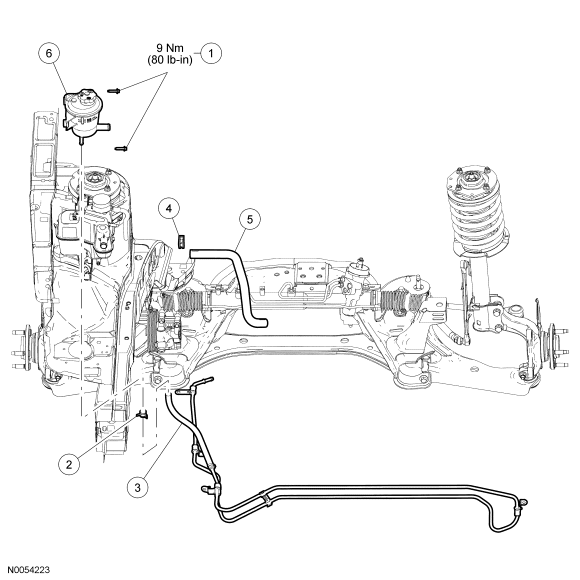

| Item | Part Number | Description |
|---|---|---|
| 1 | W703845 | Power steering fluid reservoir bolts (2 required) |
| 2 | - | Power steering fluid cooler-to-fluid reservoir hose clamp |
| 3 | - | Power steering fluid cooler-to-fluid reservoir hose (part of 3D746) |
| 4 | - | Suction hose-to-power steering reservoir hose clamp (part of 3691-A) |
| 5 | 3691-A | Suction hose |
| 6 | 3531-A | Power steering fluid reservoir |
