Wheel Knuckle: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)
| Adapter for 204-592 204-592/1 |
|
| Installer, Halfshaft 204-161 (T97P-1175-A) |
|
| Remover, Front Hub 205-D070 (D93P-1175-B) or equivalent |
|
| Remover, Steering Arm 211-003 (T64P-3590-F) |
|
| Remover, Tie-Rod End 211-105 (T85M-3395-A) |
|
| Separator, Ball Joint 204-592 |

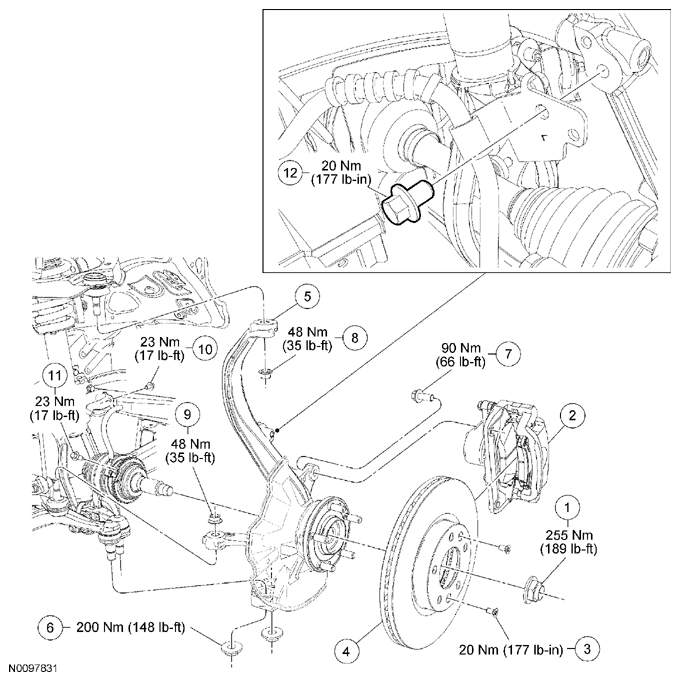

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 3N405 | Wheel hub nut |
| 2 | - | Brake caliper and anchor plate assembly |
| 3 | W505741 | Brake disc bolt (2 required) |
| 4 | 1032 | Brake disc |
| 5 | 3K171 LH/3K170 RH | Wheel knuckle |
| 6 | 3C499 | Lower ball joint nut (2 required) |
| 7 | W711241 | Brake caliper anchor plate bolt (2 required) |
| 8 | 3C498 | Upper ball joint nut |
| 9 | 3D000 | Tie-rod end nut |
| 10 | W500020 | Wheel speed sensor harness bolt |
| 11 | W500222 | Wheel speed sensor bolt |
| 12 | W505263 | Brake flexible hose bracket-to-wheel knuckle bolt |
