Front Disc Brake: Material

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Material Specification - Front Disc Brake
G01285341Courtesy of FORD MOTOR CO.
  1. Remove the components in the order indicated in Fig 2.

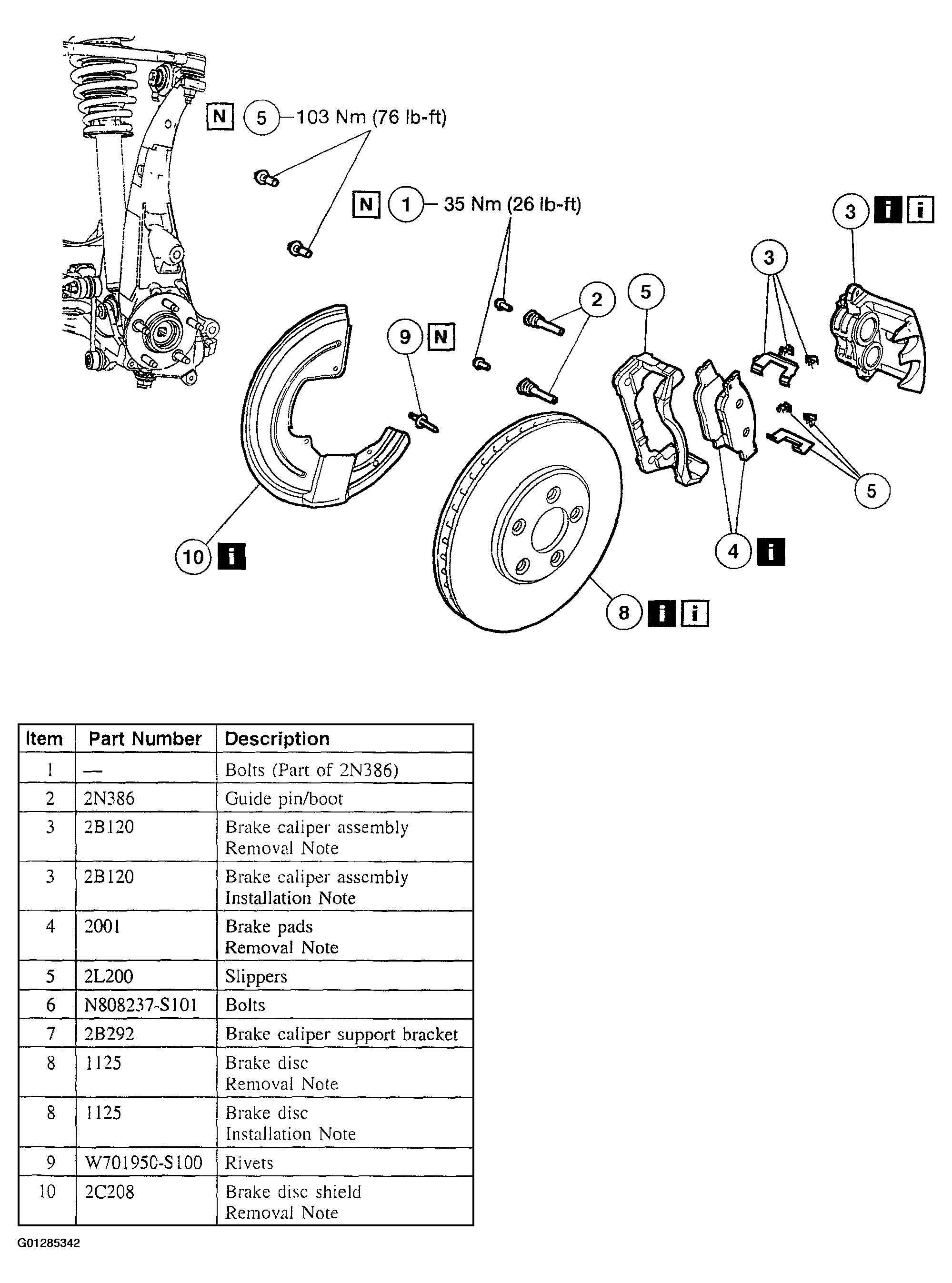

    Fig 2: Identifying Removing Sequence Of Front Disc Brake
    G01285342Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
