Output Shaft: Disassembly

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

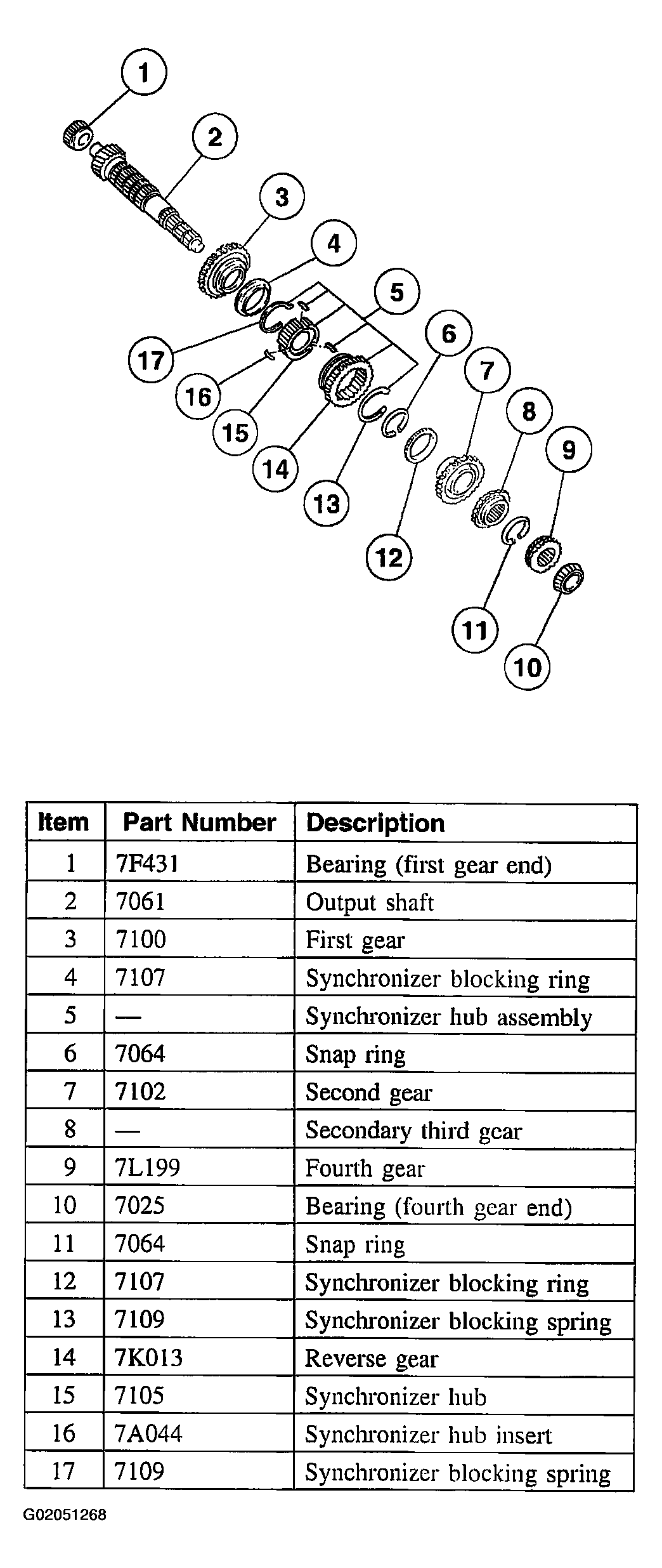

Fig 1: Exploded View Of Output Shaft
G02051268Courtesy of FORD MOTOR CO.
CAUTION: When pressing off components, hold the shaft so that it does not fall.
  1. Measure the output shaft clearances.
    1. Measure the clearance between first gear and the differential drive gear.
    2. Measure the clearance between second gear and secondary third gear.

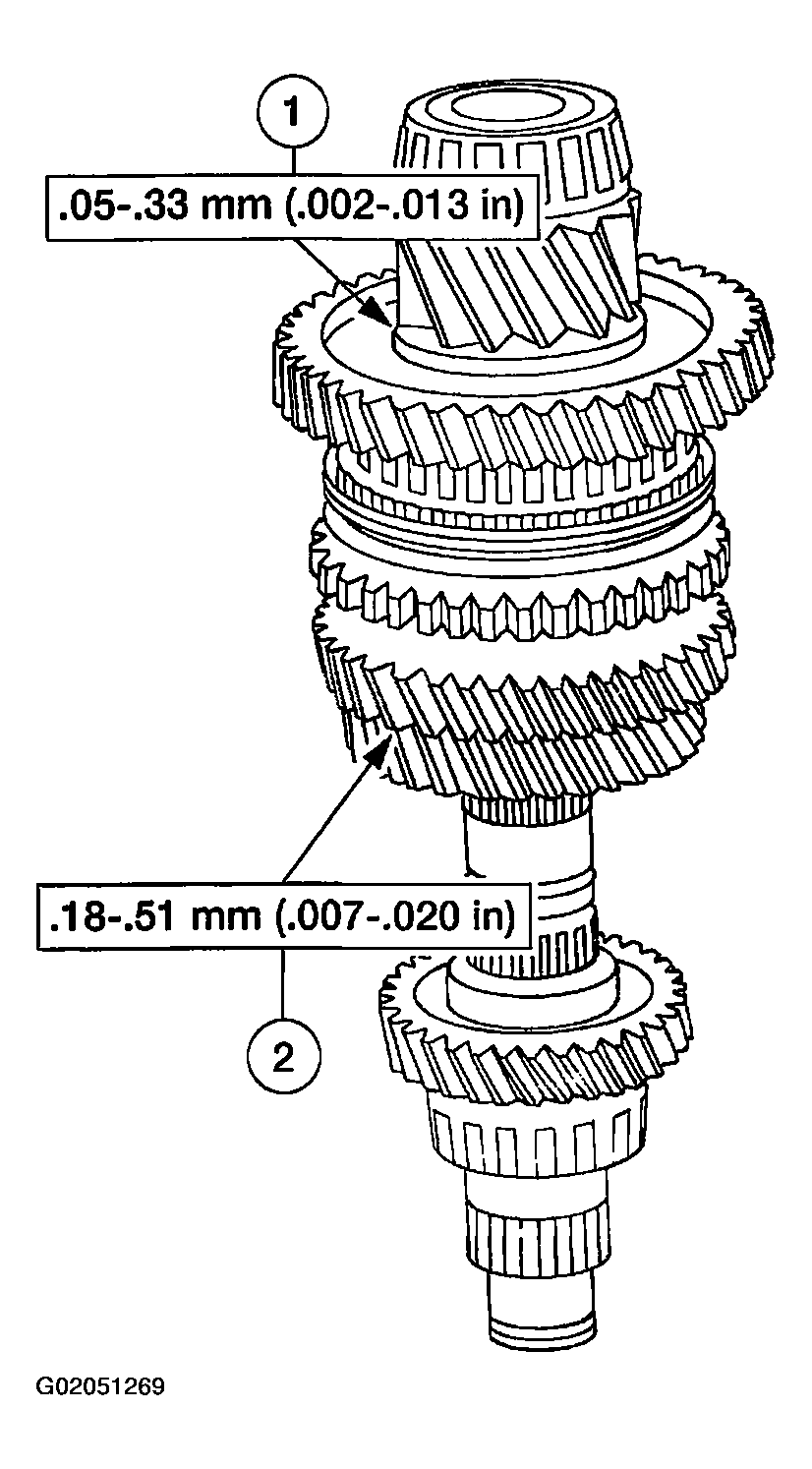

    Fig 2: Measuring Output Shaft Clearances
    G02051269Courtesy of FORD MOTOR CO.
  2. Using the special tools and press, press off the bearing (fourth gear end).

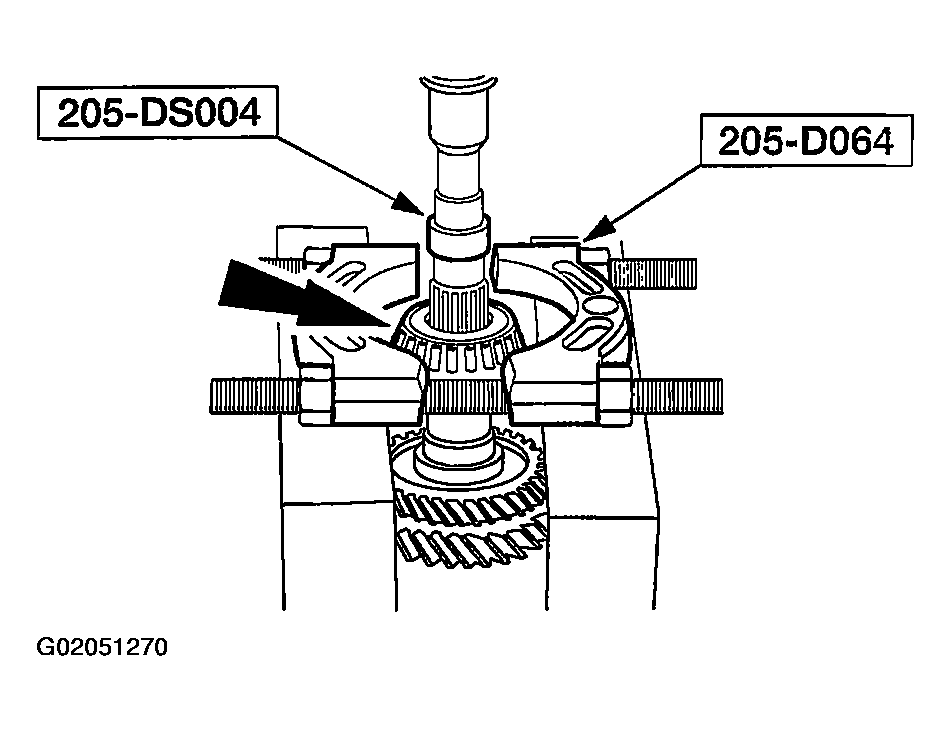

    Fig 3: Pressing Off Fourth Gear End Bearing
    G02051270Courtesy of FORD MOTOR CO.
  3. Using the special tools and a press, press off the fourth speed gear.

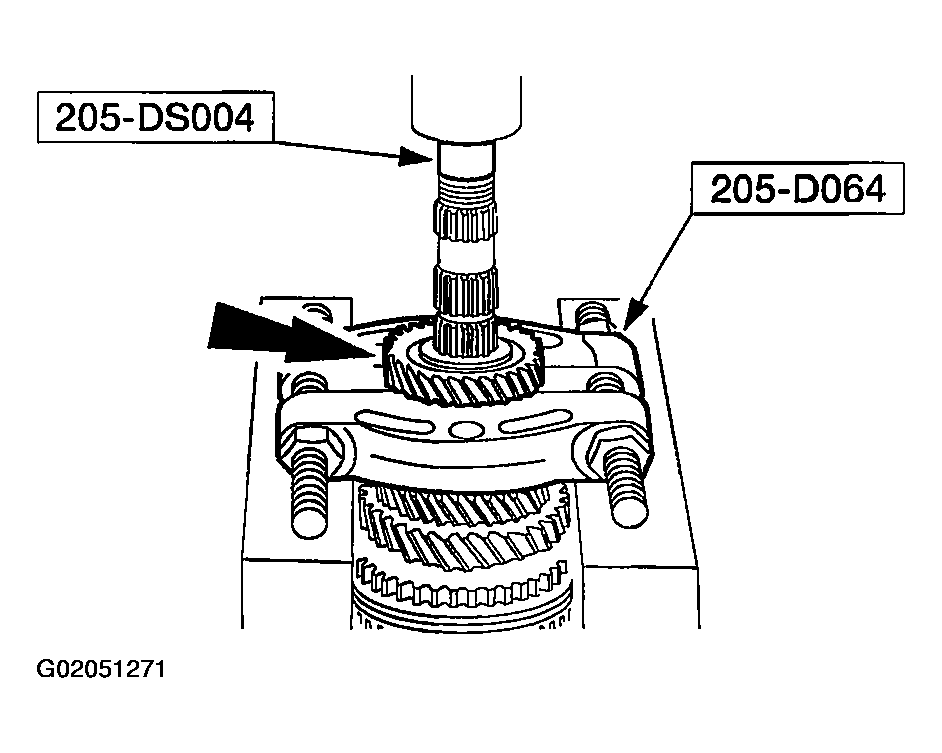

    Fig 4: Pressing Off Fourth Speed Gear
    G02051271Courtesy of FORD MOTOR CO.
  4. Remove the snap ring.

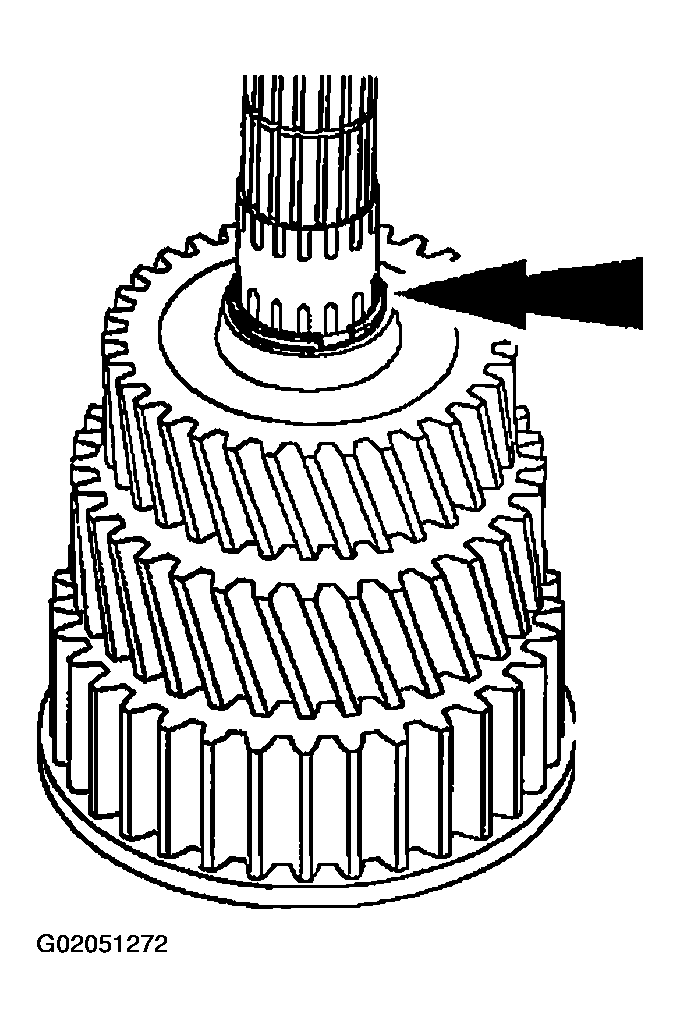

    Fig 5: Removing Snap Ring
    G02051272Courtesy of FORD MOTOR CO.
  5. Using the special tools and a press, press off the third speed gear and second gear.
    Fig 6: Pressing Off Third Speed Gear And Second Gear
    G02051273Courtesy of FORD MOTOR CO.
  6. CAUTION: The synchronizer blocking rings are not interchangeable. Be sure to keep them in the order that they were removed.

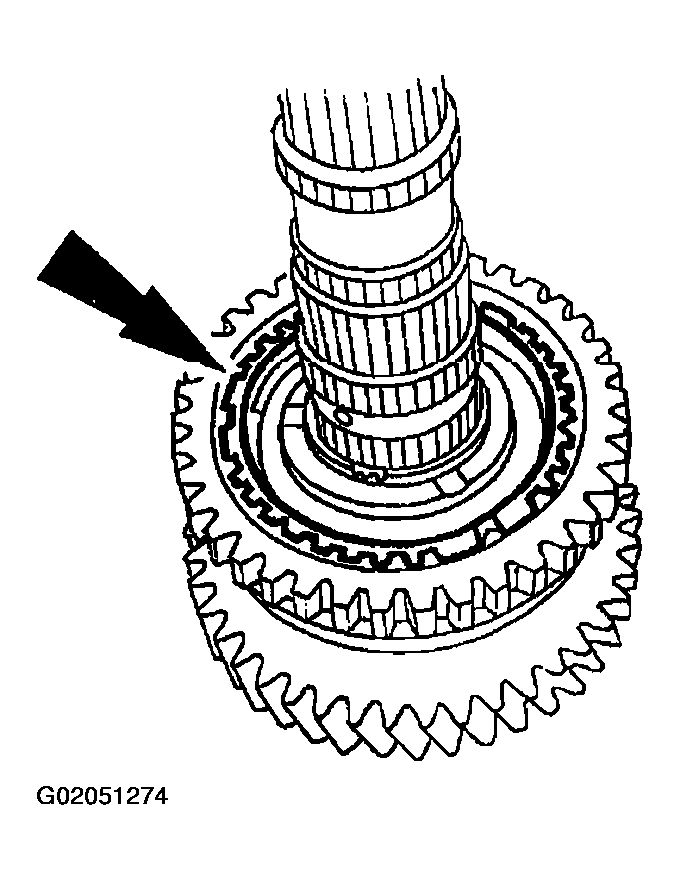

    Fig 7: Removing Synchronizer Blocking Ring
    G02051274Courtesy of FORD MOTOR CO.
  7. Remove the synchronizer blocking ring.
  8. Remove the snap ring.

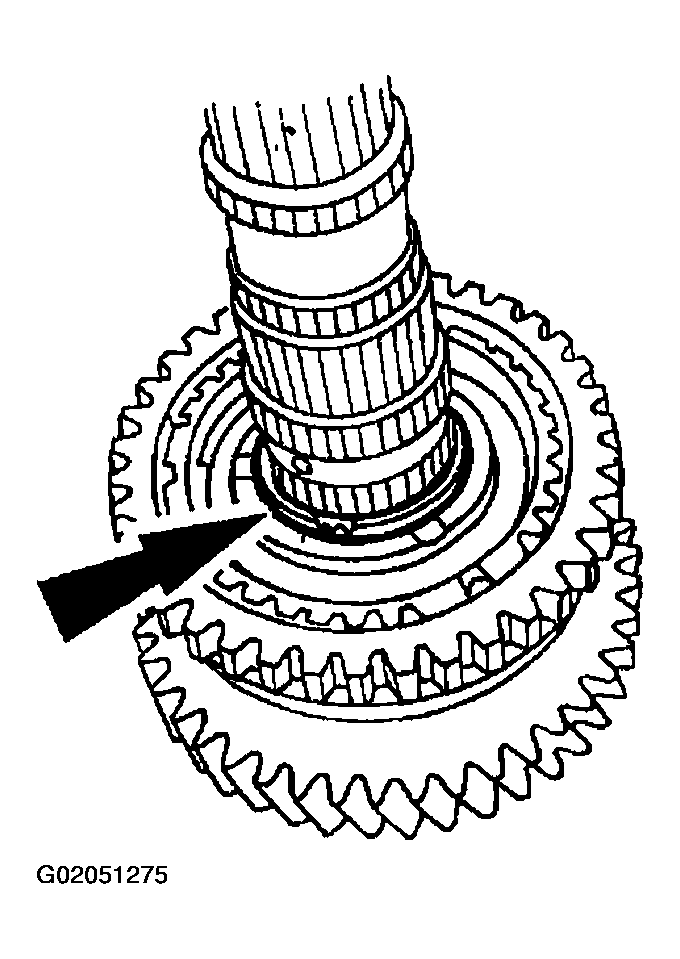

    Fig 8: Removing Snap Ring
    G02051275Courtesy of FORD MOTOR CO.
  9. CAUTION: The synchronizer blocking rings are not interchangeable. Make sure to keep them in the order that they were removed.
    NOTE: Inspect all the synchronizer components for wear and damage; refer to SYNCHRONIZERS .
    Fig 9: Pressing Off Synchronizer Hub, Synchronizer Blocking Ring, And First Gear
    G02051276Courtesy of FORD MOTOR CO.
  10. Using the special tools and a press, press off the synchronizer hub, synchronizer blocking ring, and first gear.
  11. Using the special tools and a press, press off the bearing (first gear end).

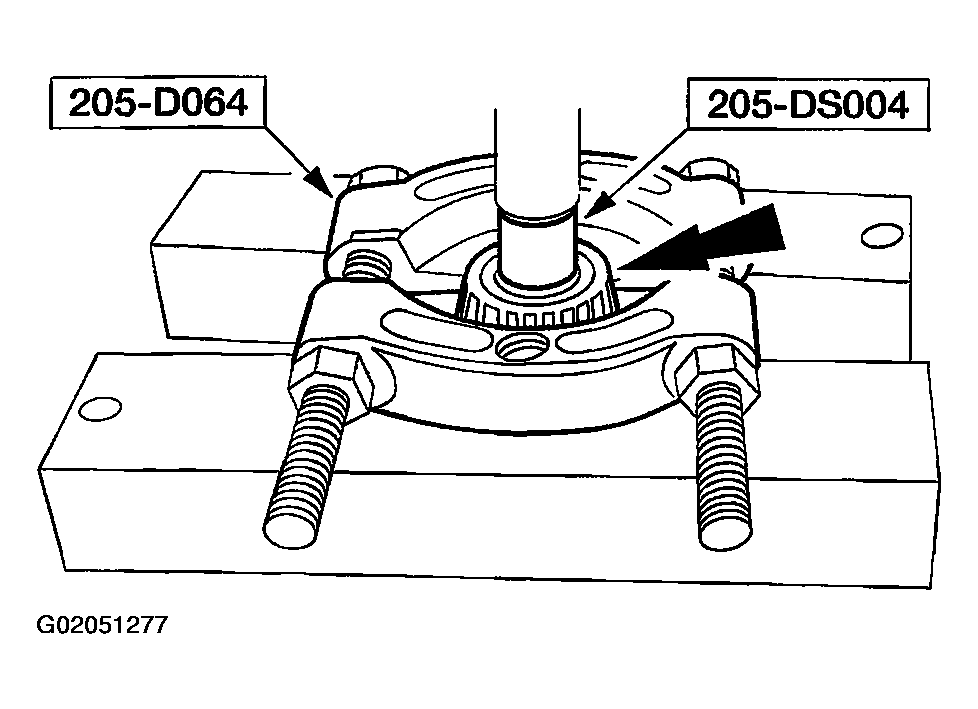

    Fig 10: Pressing Off Bearing (First Gear End)
    G02051277Courtesy of FORD MOTOR CO.
  12. Measure output shaft gear runout.
    • Inspect the output shaft for worn or damaged gears.
    • Inspect the output shaft for clogged oil passage.

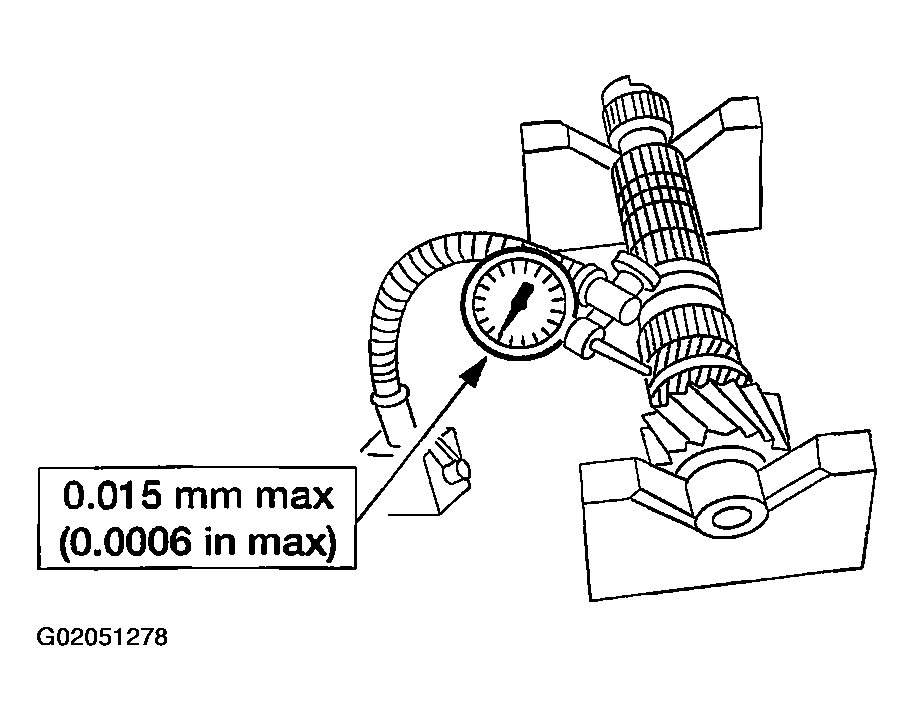

    Fig 11: Measuring Output Shaft Gear Runout
    G02051278Courtesy of FORD MOTOR CO.
  13. NOTE: Set the synchronizer ring squarely in the gear, then measure around the circumference.

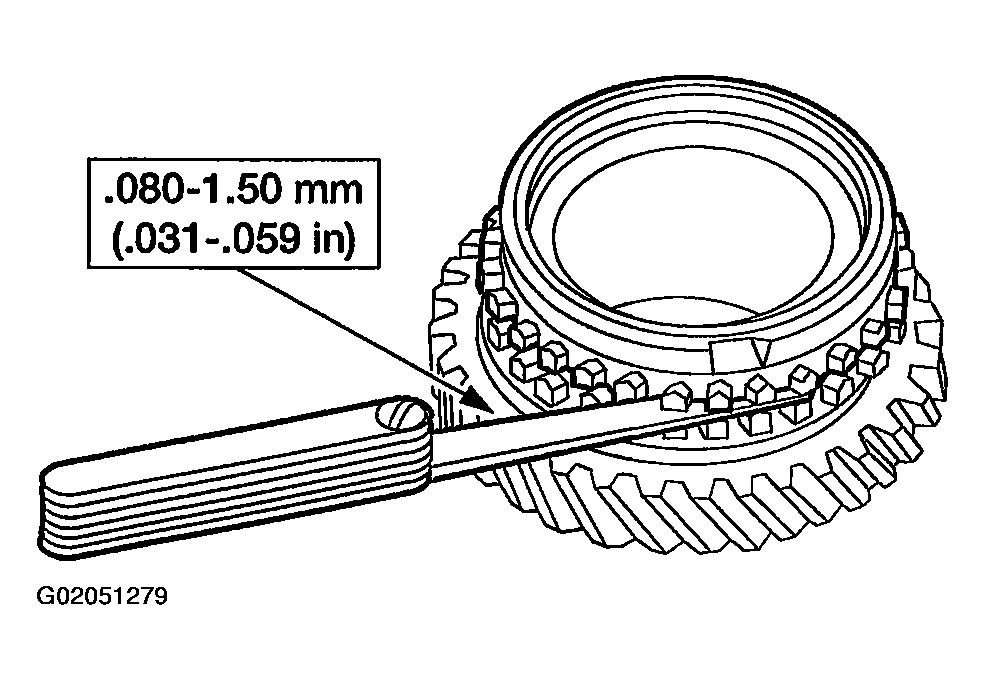

    Fig 12: Inspecting Synchronizer Blocking Ring
    G02051279Courtesy of FORD MOTOR CO.
  14. Inspect the synchronizer blocking ring.
    • Measure the clearance from the side of the gear.
    • Inspect for smooth engagement with the gear.
    • Inspect for worn or damaged teeth or tapered surface.
  15. Inspect the synchronizer hub.
    • Inspect for worn or damaged splines, synchronizer insert groove or end surface.
    • Inspect for smooth hub sleeve movement when it is installed.
  16. Measure the clearance between the first/second synchronizer hub and its shift fork.

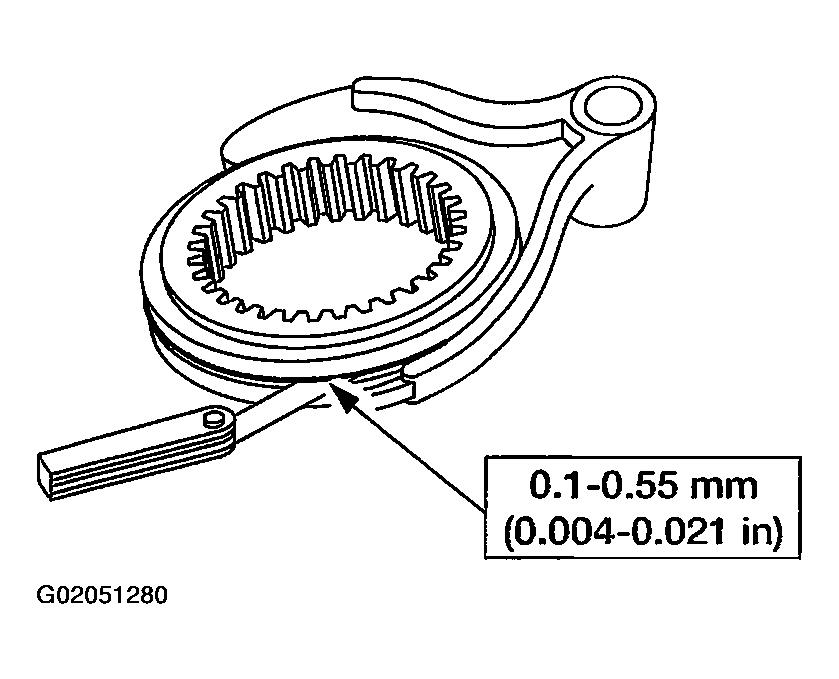

    Fig 13: Measuring Clearance Between First/Second Synchronizer Hub Its Shift Fork
    G02051280Courtesy of FORD MOTOR CO.
