Engine Disassembled View-Front Cover

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

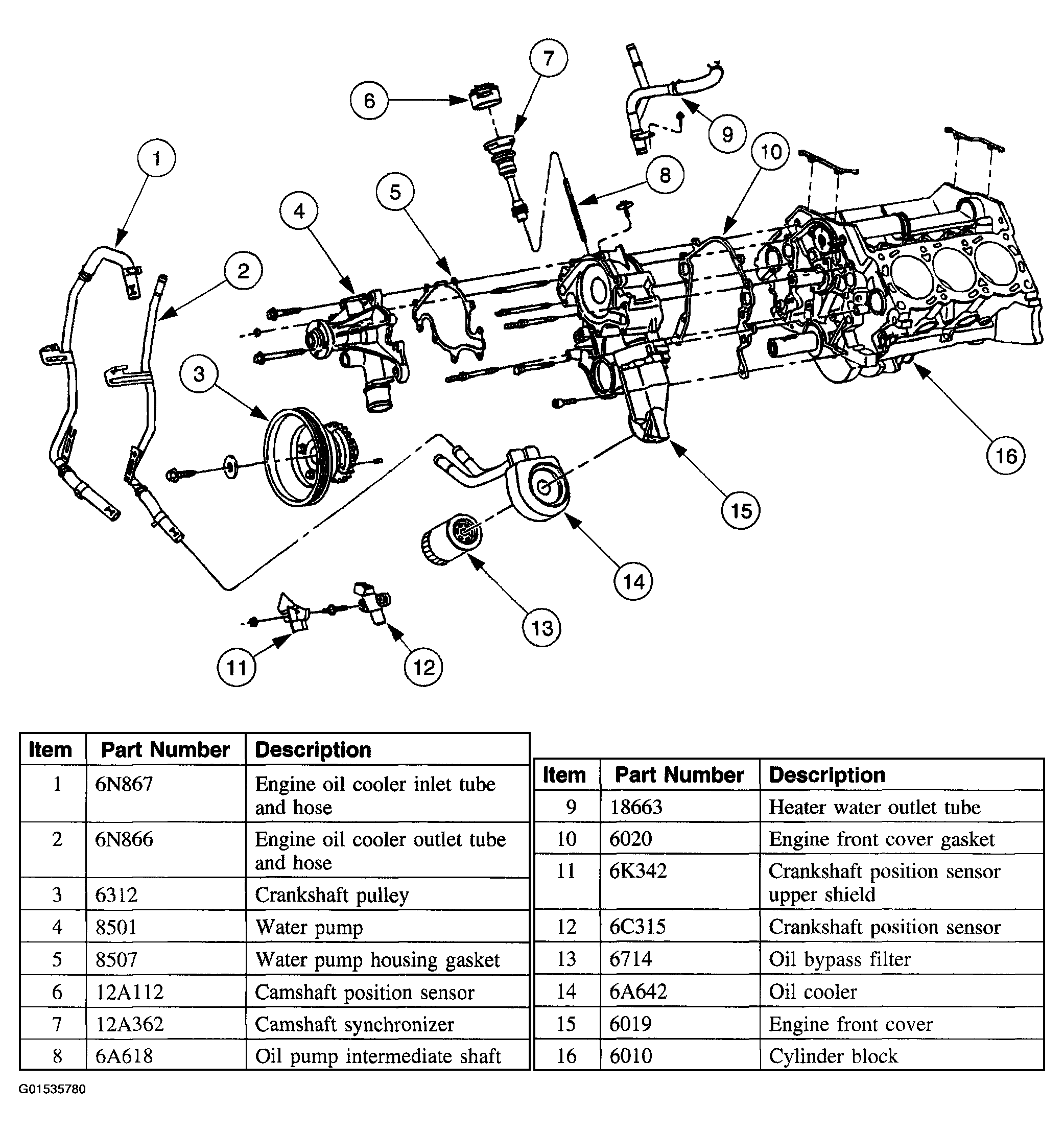

Fig 1: Exploded View Of Engine - Front Cover

Courtesy of FORD MOTOR CO.
