Hydraulic Control Unit - (HCU): Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When the battery (10655) is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.

NOTE: Bleed the HCU after installation; refer to BRAKE SYSTEM-GENERAL INFORMATION .

To install, reverse the removal procedure.

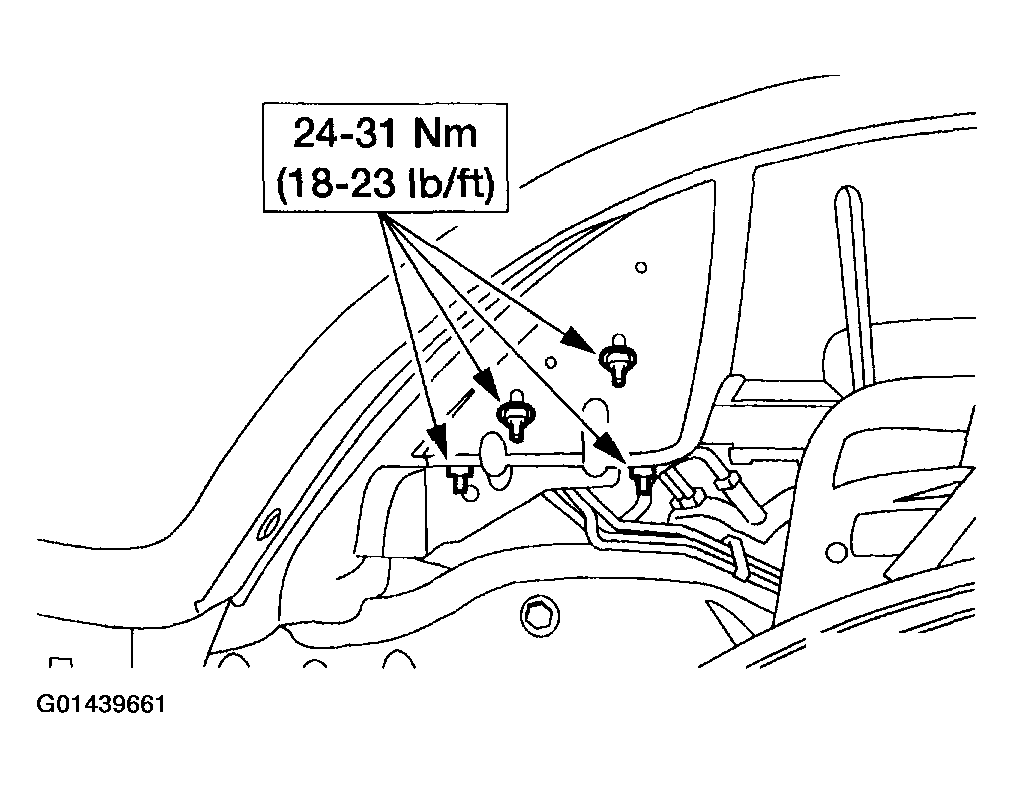

Fig 1: Installing HCU Bracket To Inner Fender Well Nuts
Courtesy of FORD MOTOR CO.

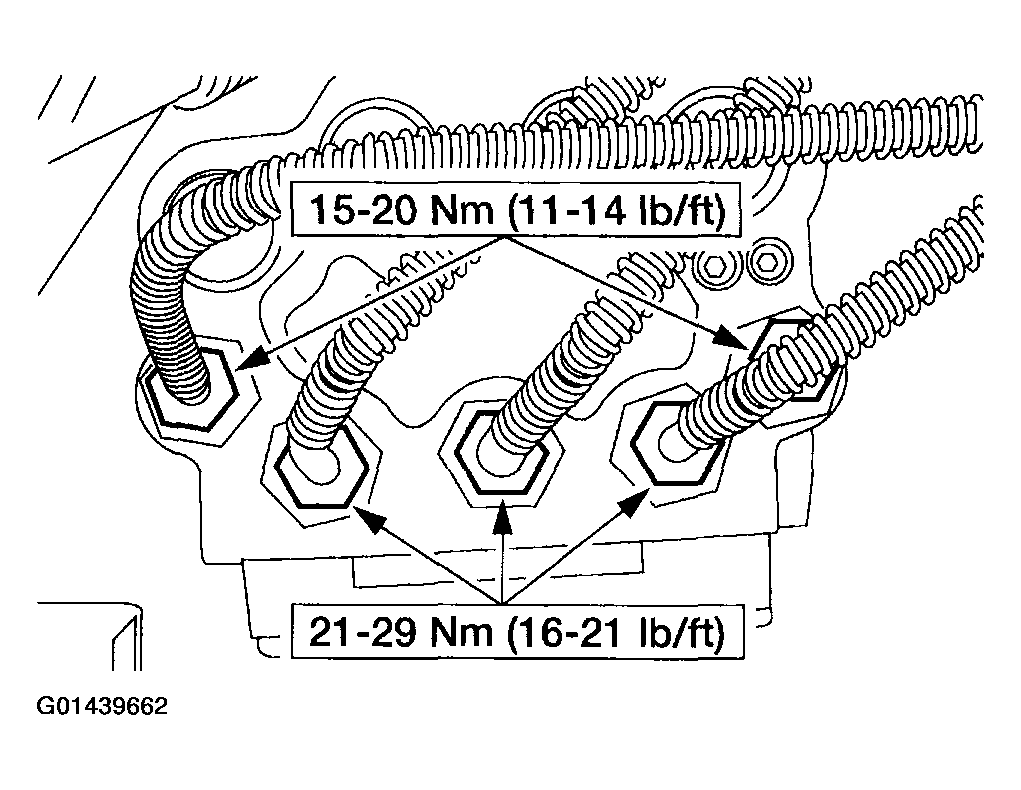

Fig 2: Connecting Brake Lines
Courtesy of FORD MOTOR CO.

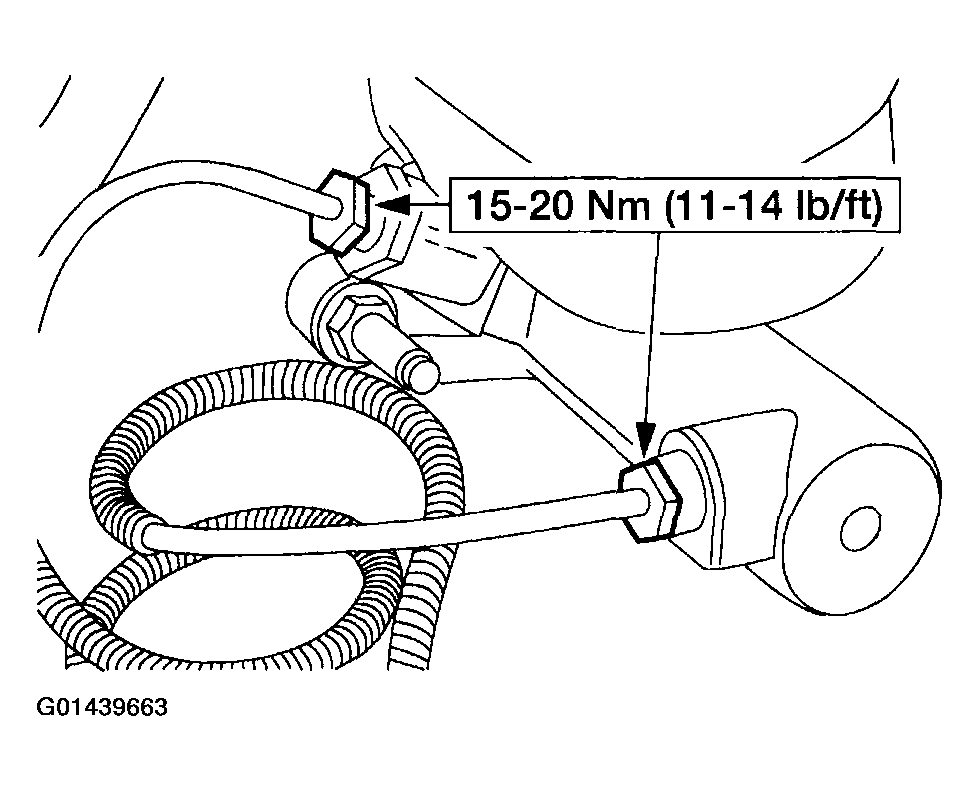

Fig 3: Connecting Brake Lines From Brake Master Cylinder
Courtesy of FORD MOTOR CO.

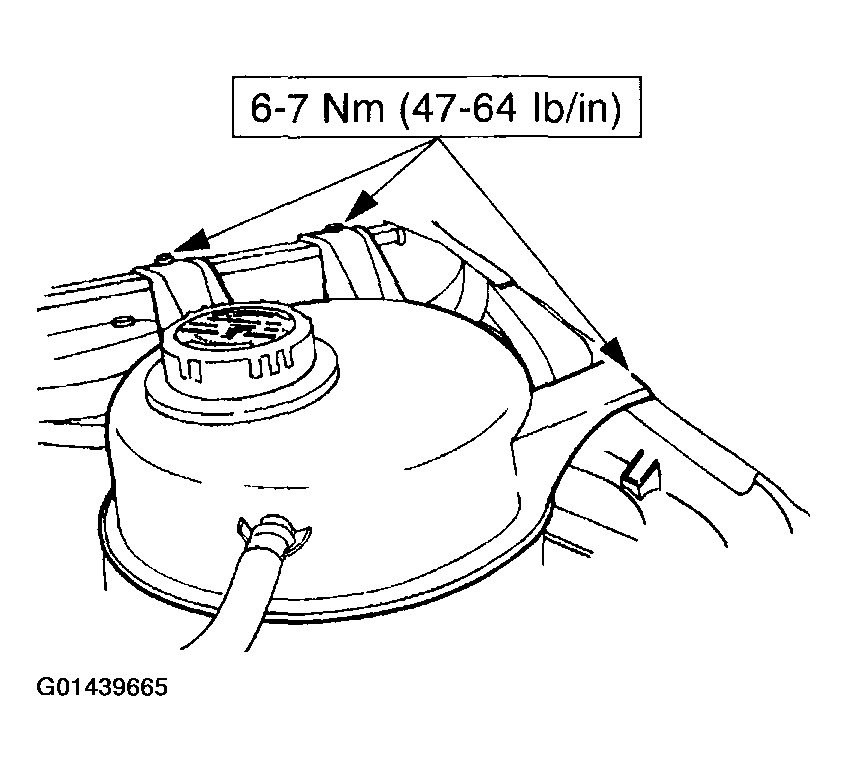

Fig 4: Installing Bolts And Position Power Steering Pump Reservoir Aside
Courtesy of FORD MOTOR CO.

Fig 5: Installing Bolts
Courtesy of FORD MOTOR CO.
