Cylinder Block Components

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

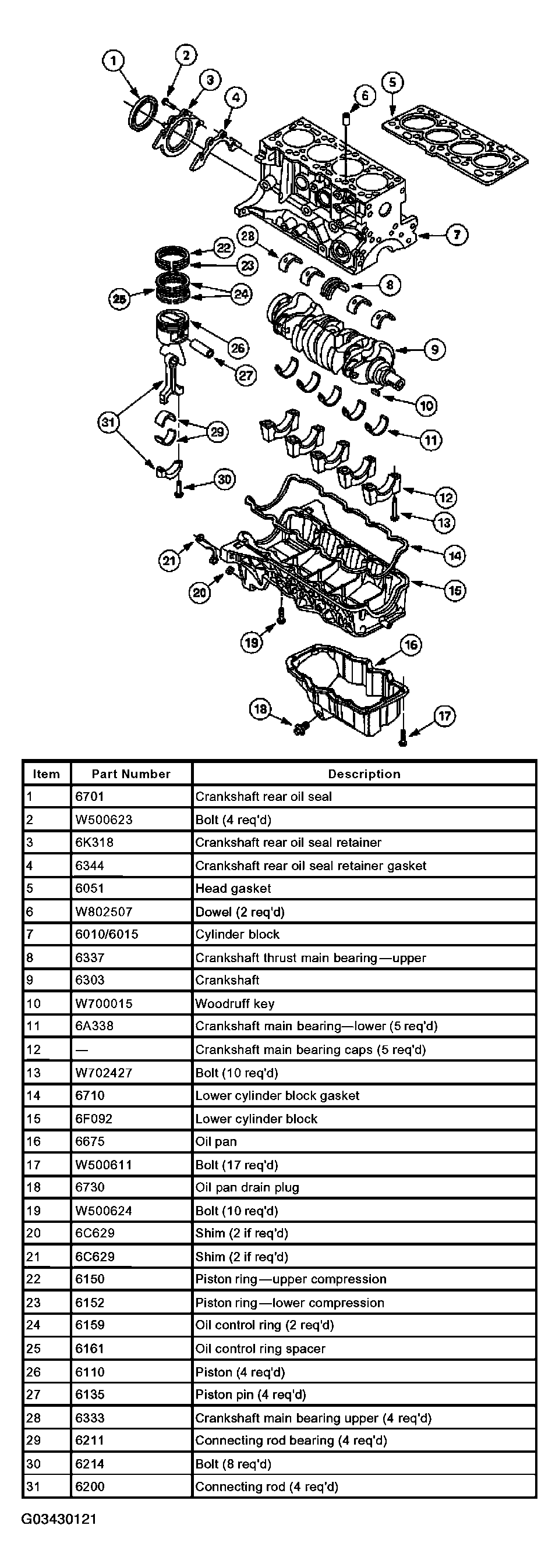

Fig 1: Identifying Cylinder Block Components
G03430121Courtesy of FORD MOTOR CO.
