Lower Engine Components

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

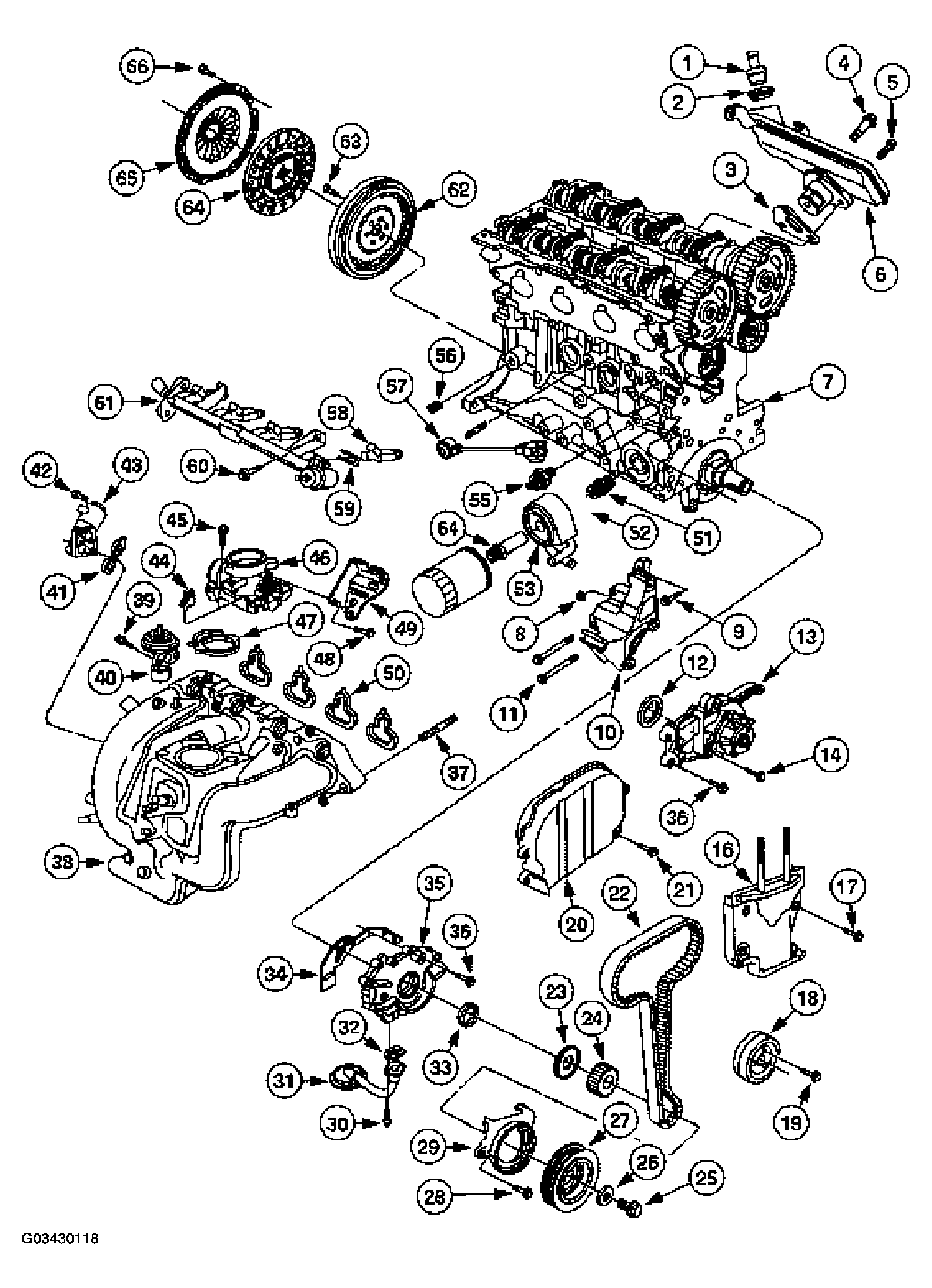

Fig 1: Identifying Lower Engine Components

Courtesy of FORD MOTOR CO.

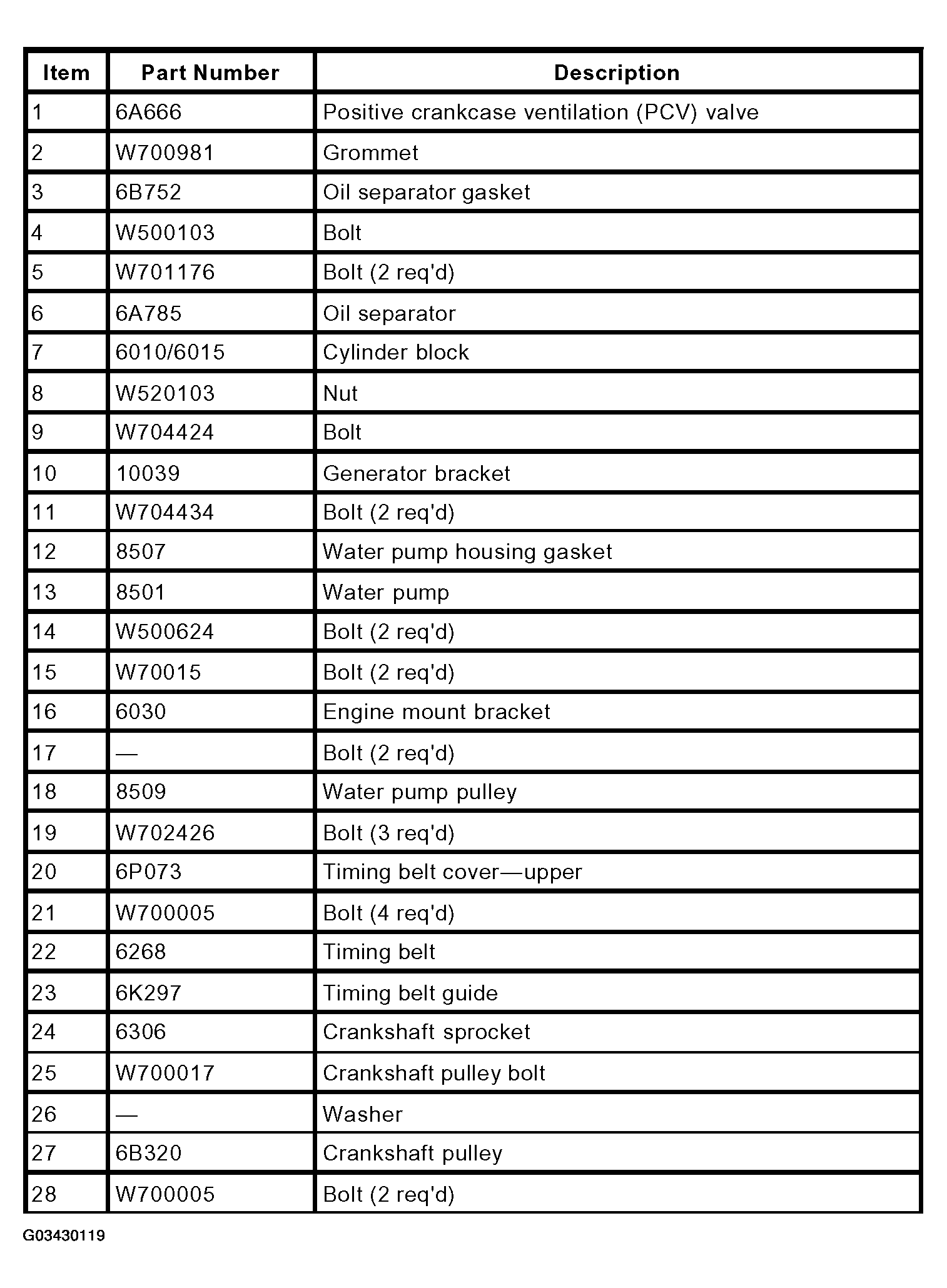

Fig 2: Items Descriptions Table (1 Of 2)

Courtesy of FORD MOTOR CO.

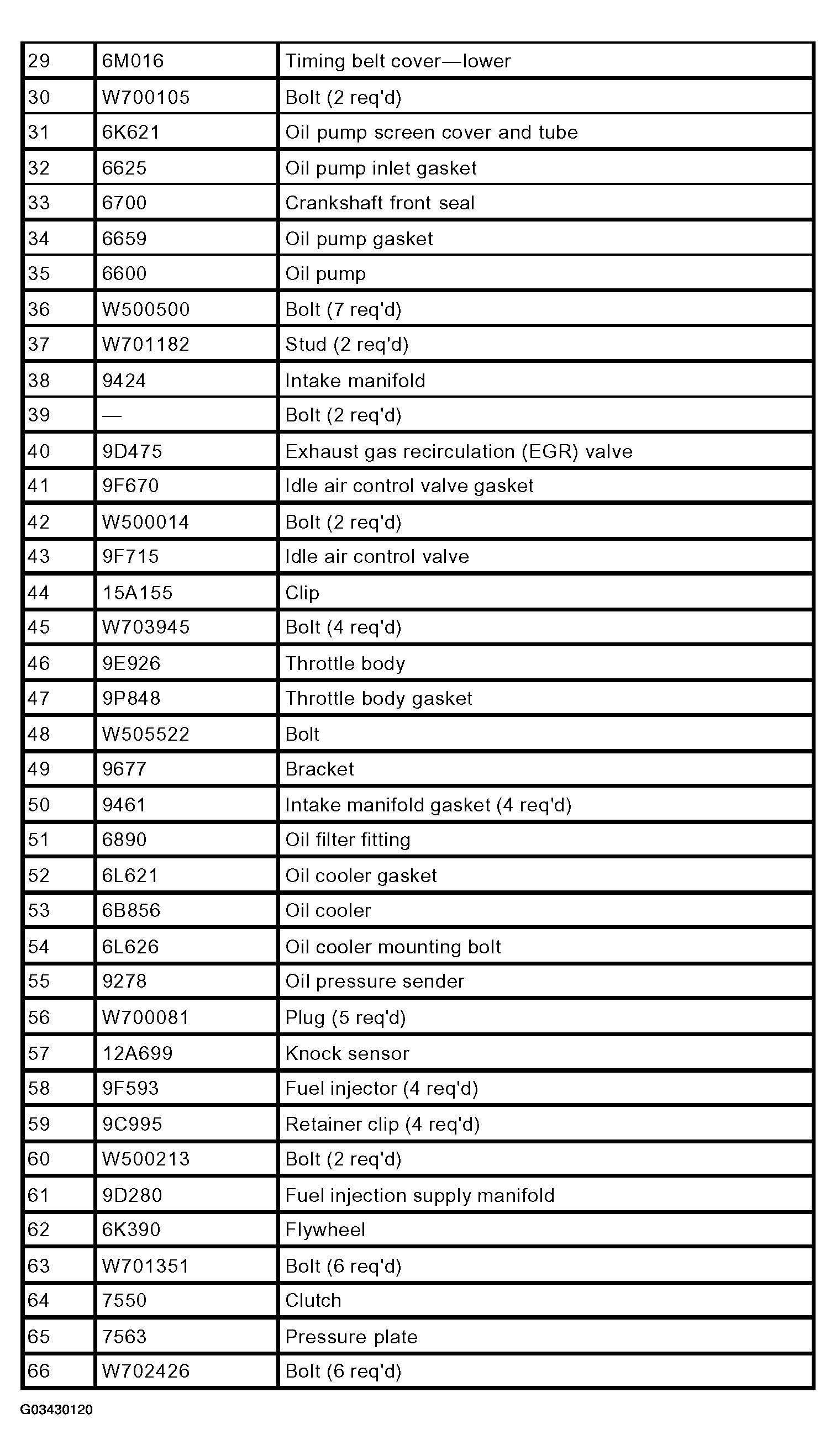

Fig 3: Items Descriptions Table (2 Of 2)

Courtesy of FORD MOTOR CO.
