Disassembly & Assembly Of Subassemblies: Synchronizers: Assembly
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Match the marked parts for assembly.
Courtesy of FORD MOTOR CO.

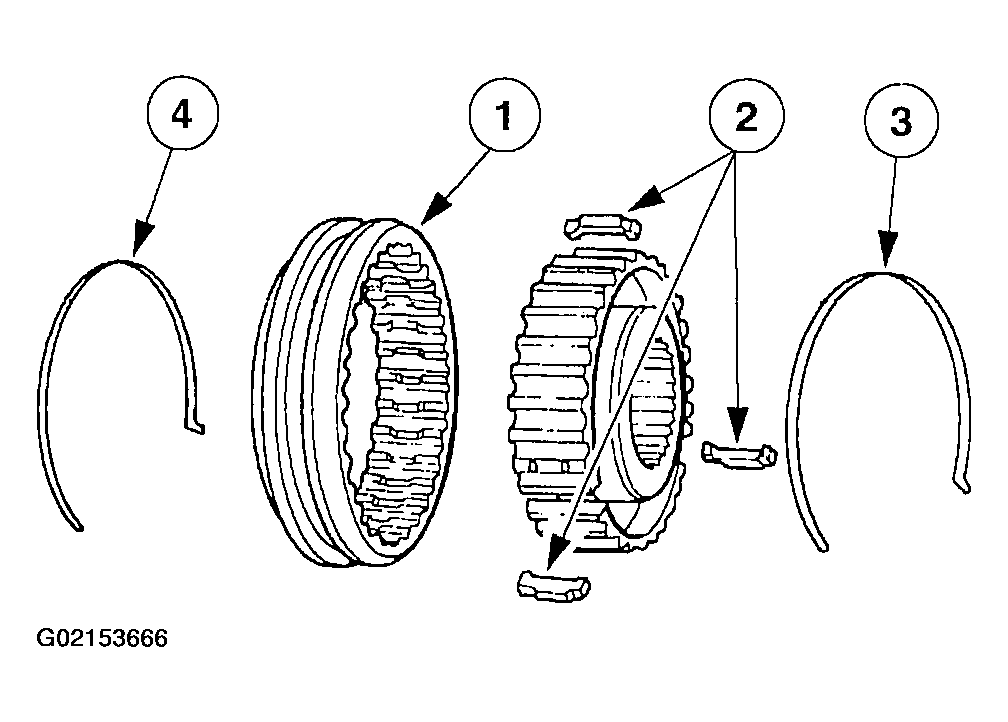

- Assemble the synchronizer.
- Install the sleeve.
- Install the insert keys.
- Install the retaining spring.
- Flip the synchronizer over and install the opposite retaining spring.
