Section 394 (Manual Transmission): Installation: Transmission

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

Using the transmission jack, raise and position the transmission to the engine and clutch.
Install the nine bolts retaining the transmission to the engine.

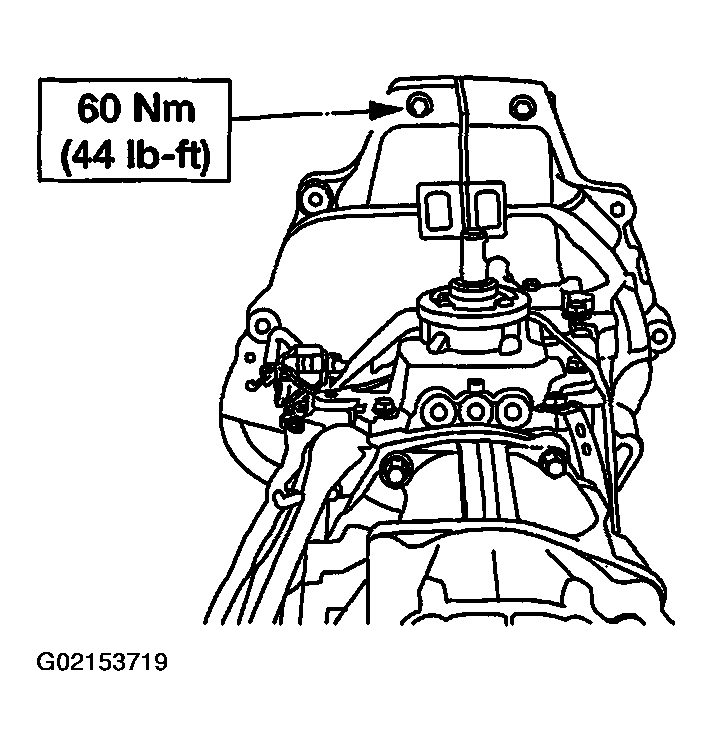

Fig 2: Installing Transmission-To-Engine Bolts
Courtesy of FORD MOTOR CO.
Install the six bolts retaining the crossmember to the frame.

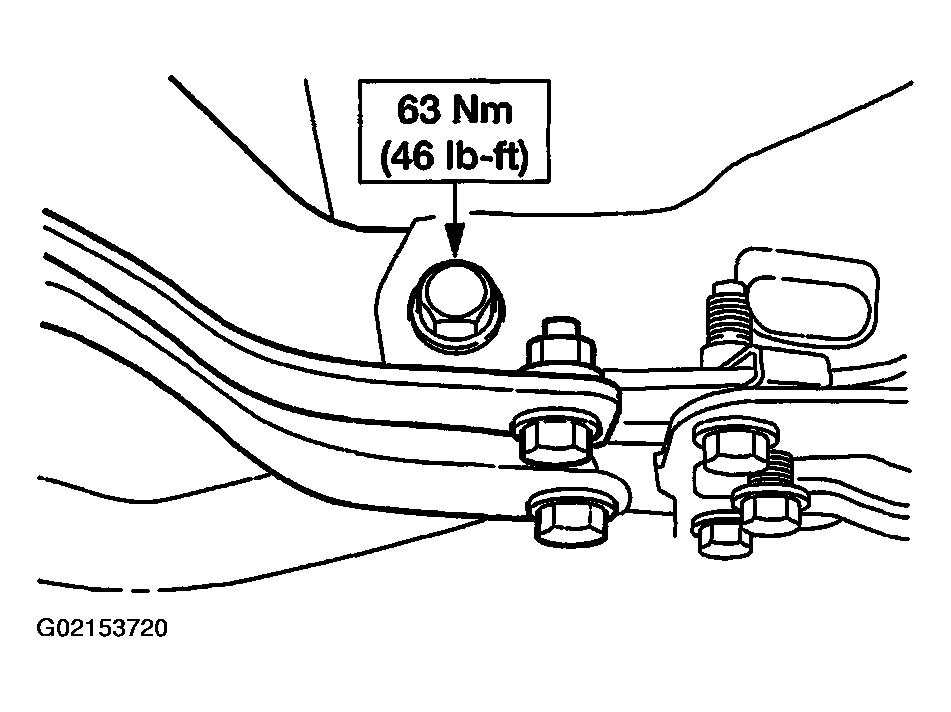

Fig 3: Installing Crossmember To Frame
Courtesy of FORD MOTOR CO.
Install the transmission insulator to crossmember nuts.

Fig 4: Installing Transmission Insulator-To-Crossmember Nuts
Courtesy of FORD MOTOR CO.
Remove the High-Lift Transmission Jack.

Fig 5: Removing High-Lift Transmission Jack
Courtesy of FORD MOTOR CO.
Connect the clutch hydraulic to the clutch slave cylinder.

Fig 6: Connecting Clutch Hydraulic To Clutch Slave Cylinder
Courtesy of FORD MOTOR CO.
On 4-wheel drive vehicles, install the transfer case. For additional information, refer to TRANSFER CASE - AUTOMATIC SHIFT .

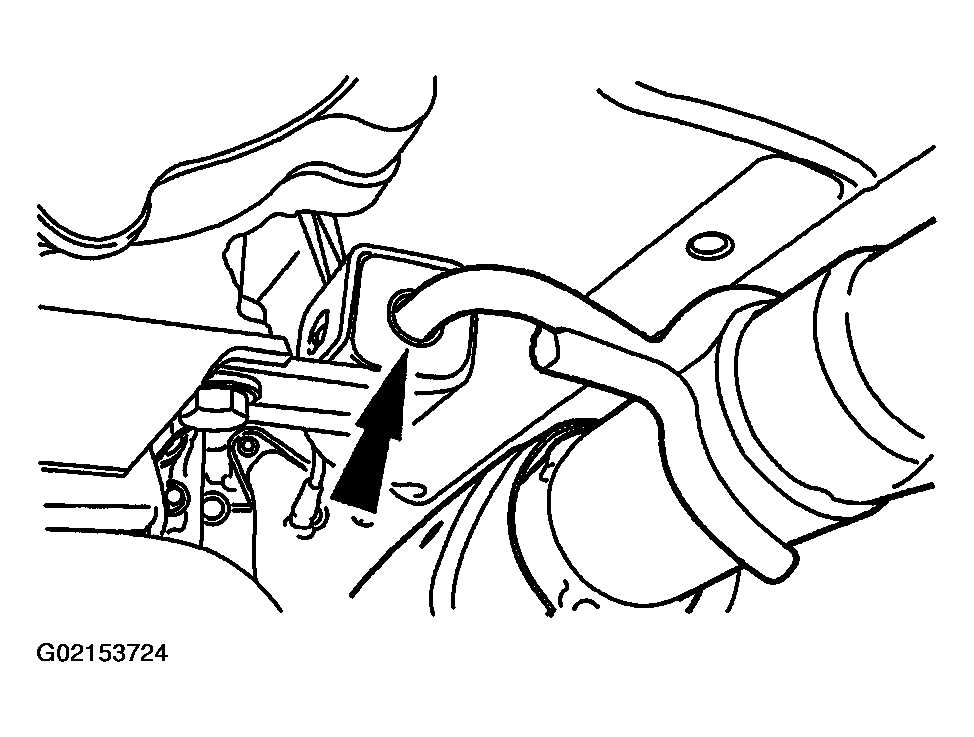

Install the exhaust hanger into the insulator.

Fig 7: Installing Exhaust Hanger Into Insulator
Courtesy of FORD MOTOR CO.

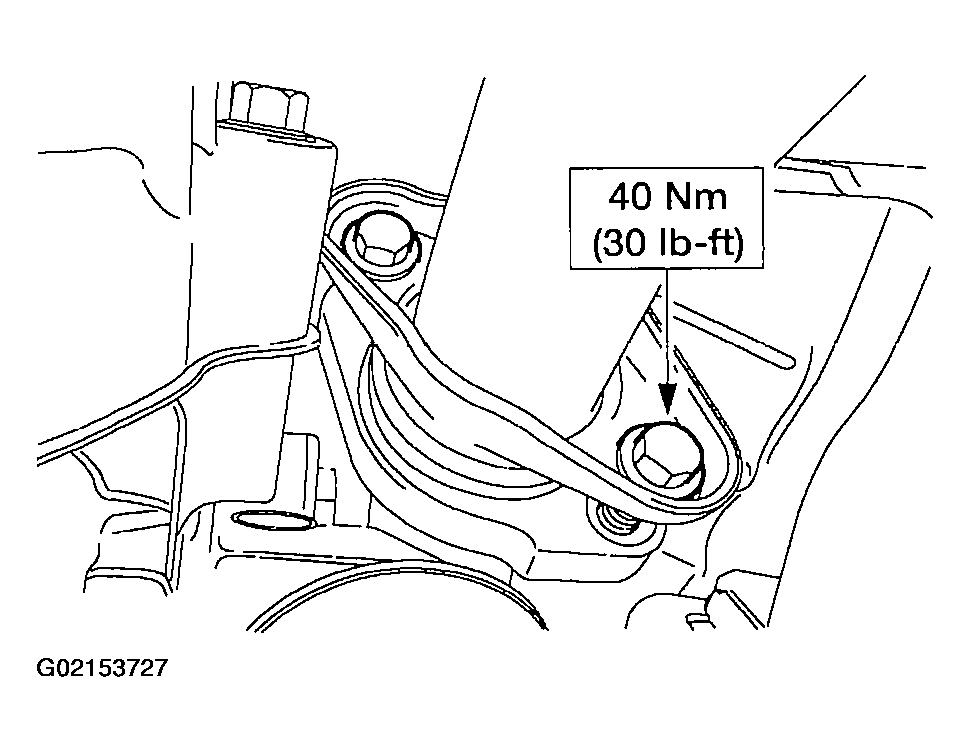

Install a new exhaust converter outlet gasket, then install the catalytic converter to the muffler bolts.

Fig 8: Installing Catalytic Converter To Muffler
Courtesy of FORD MOTOR CO.

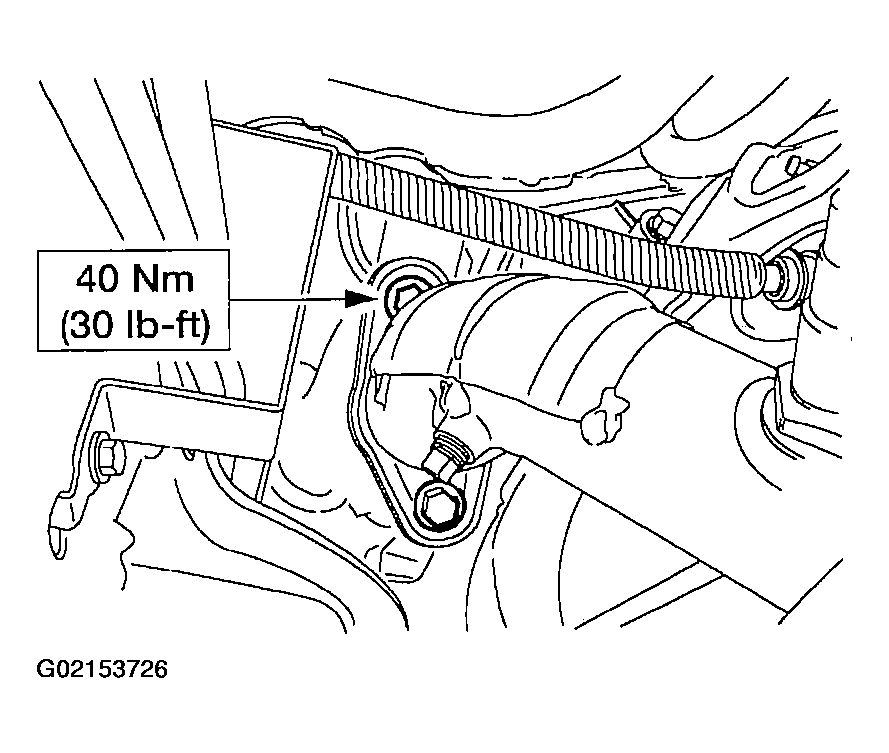

Install the exhaust inlet crossover pipe bolts.

Fig 9: Installing Exhaust Inlet Crossover Pipe Bolts (1 Of 2)
Courtesy of FORD MOTOR CO.

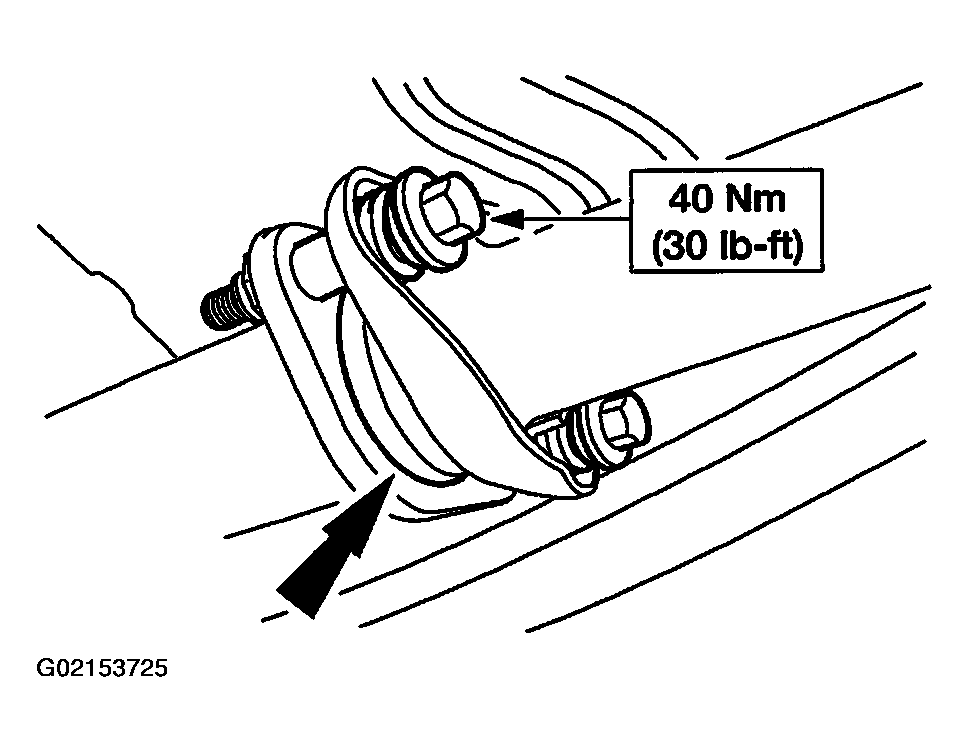

Fig 10: Installing Exhaust Inlet Crossover Pipe Bolts (2 Of 2)
Courtesy of FORD MOTOR CO.
Install the rear driveshaft. For additional information, refer to DRIVE SHAFTS .
Install the front driveshaft, if so equipped. For additional information, refer to DRIVE SHAFTS .
Install the starter motor. For additional information, refer to STARTERS .
Connect the electrical connectors to the Heated Oxygen Sensors (HO2S).

Fig 11: Connecting Electrical Connectors To HO2S (1 Of 2)
Courtesy of FORD MOTOR CO.

Fig 12: Connecting Electrical Connectors To HO2S (2 Of 2)
Courtesy of FORD MOTOR CO.

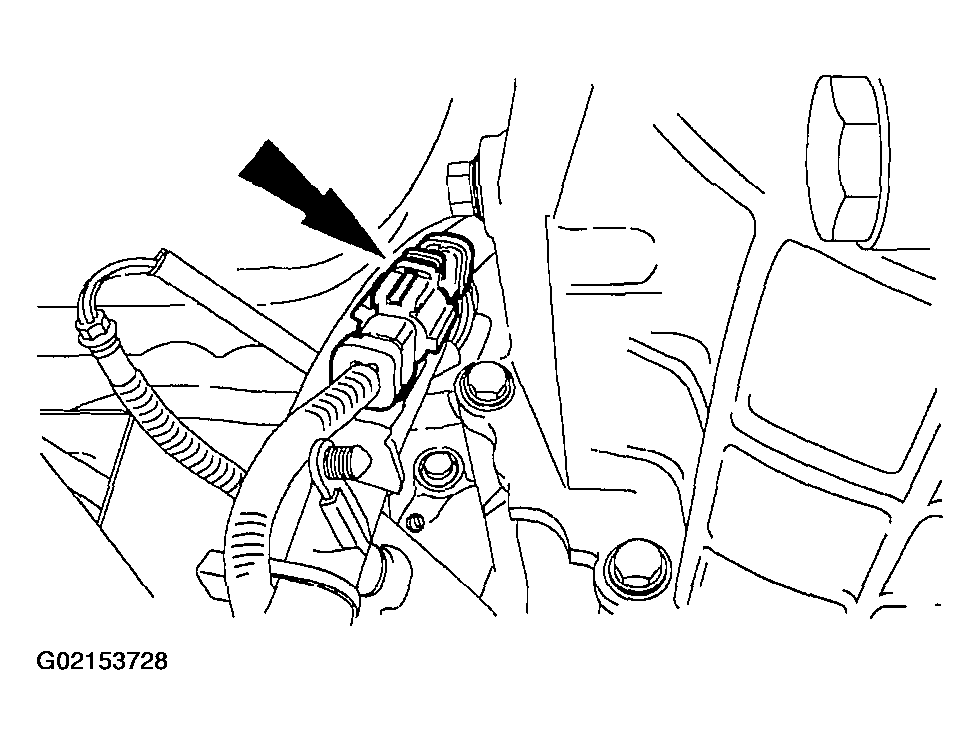

Connect the electrical connector to the reverse lamp switch.

Fig 13: Connecting Electrical Connector To Reverse Lamp Switch
Courtesy of FORD MOTOR CO.
Connect the following:
1. Connect the electrical connector to the vehicle speed sensor (VSS).
2. Connect the Heated Oxygen Sensor (HO2S) electrical connector to the bracket.

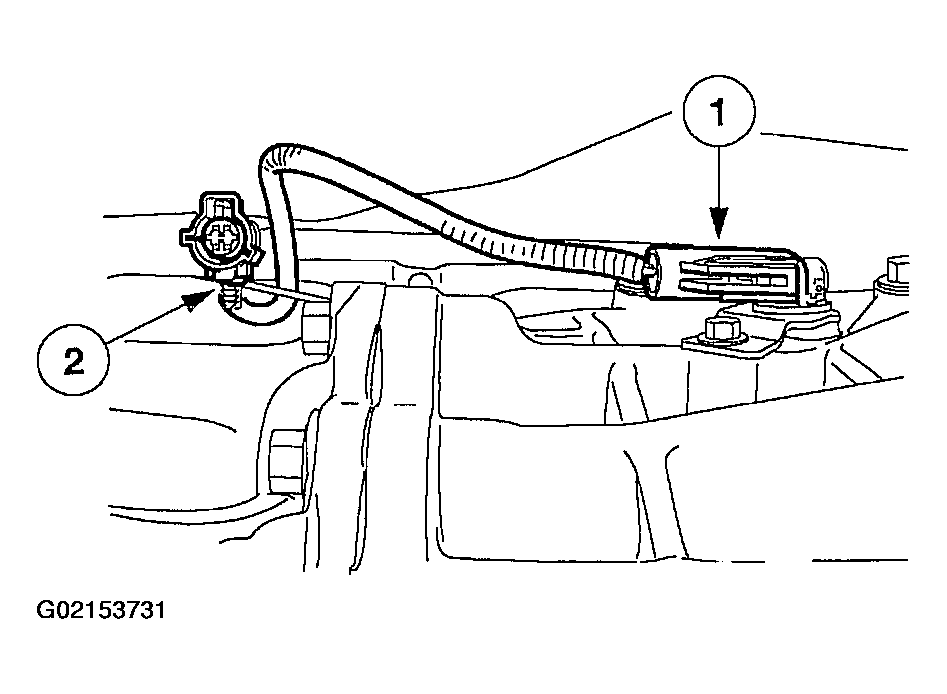

Fig 14: Connecting Electrical Connector To VSS & HO2S
Courtesy of FORD MOTOR CO.
Connect the wiring harness to the bracket.

Fig 15: Connecting Wiring Harness To Bracket
Courtesy of FORD MOTOR CO.
Refill the transmission with the specified amount of fluid.
- Use MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX or equivalent meeting Ford specification MERCON®.
Lower the vehicle.
Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Install the upper gearshift lever and the outer gearshift lever boot and console assembly as an assembly. For additional information, refer to SHIFT LEVER & BOOT .
