Cluster Lens: Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.

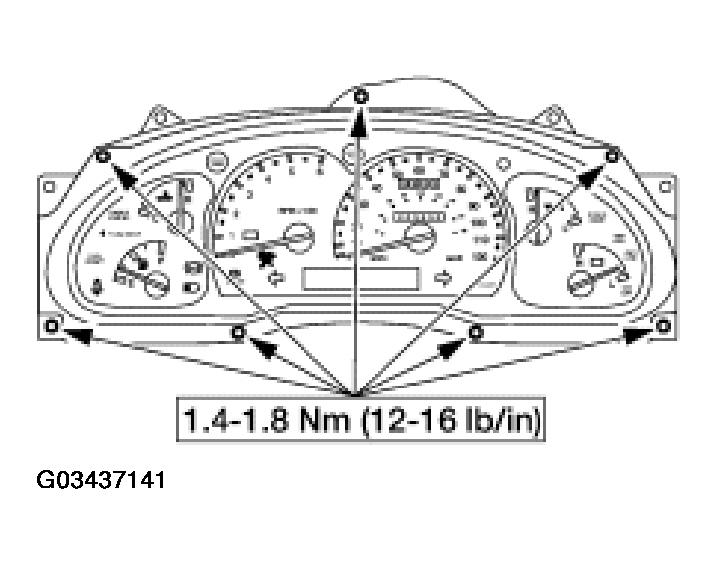

    Fig 1: Installing Instrument Cluster Lens & Mask Assembly
    G03437141Courtesy of FORD MOTOR CO.

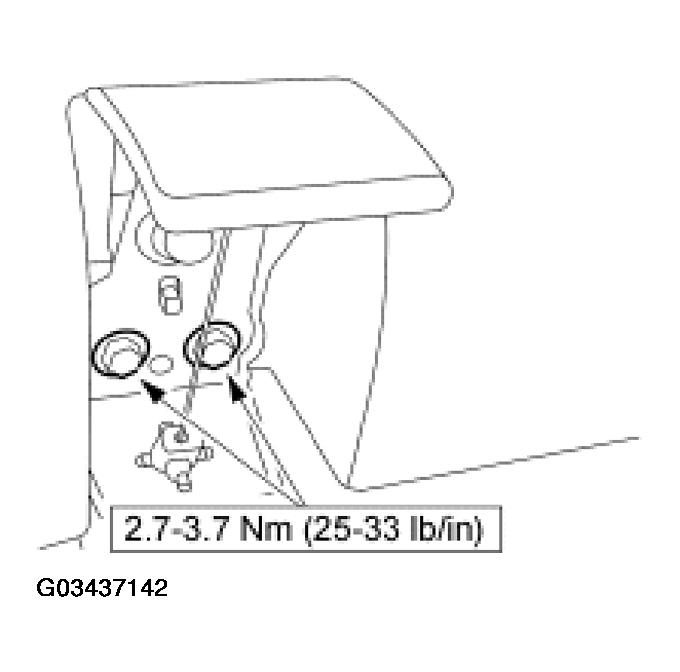

    Fig 2: Installing Hood Latch Release Handle
    G03437142Courtesy of FORD MOTOR CO.

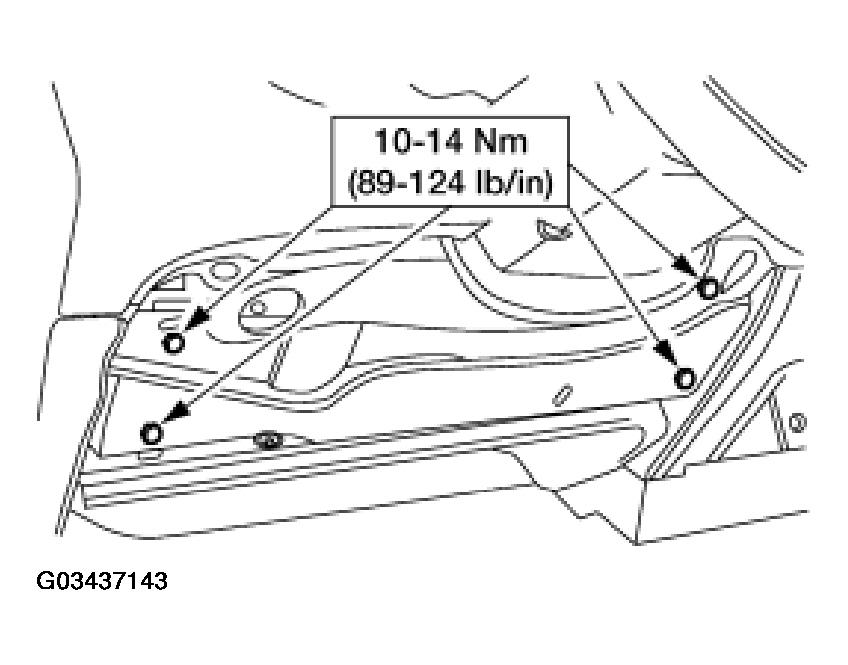

    Fig 3: Installing Instrument Panel Steering Column Opening Cover Reinforcement
    G03437143Courtesy of FORD MOTOR CO.

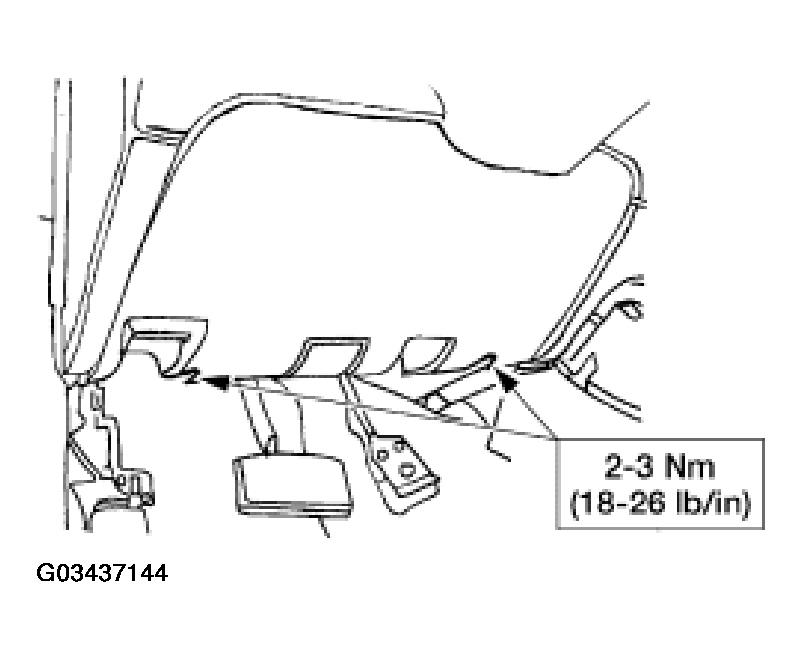

    Fig 4: Installing Instrument Panel Steering Column Cover
    G03437144Courtesy of FORD MOTOR CO.

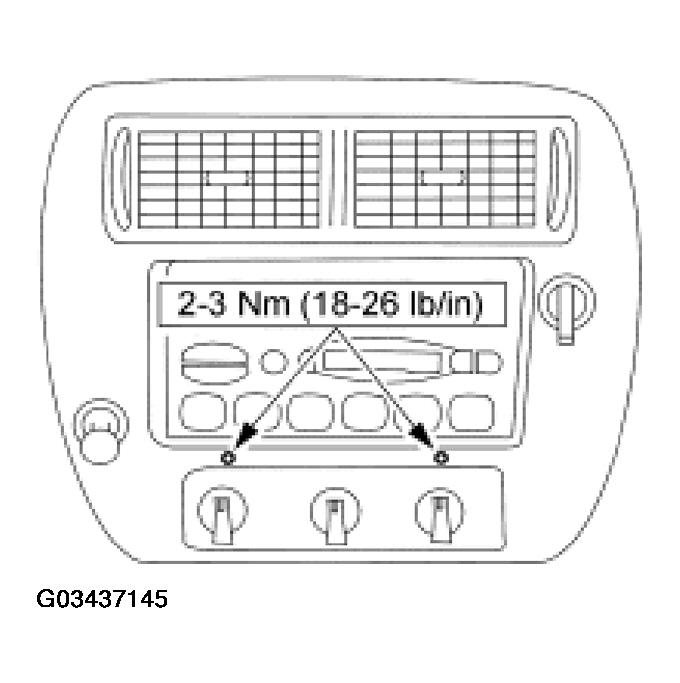

    Fig 5: Installing Center Instrument Panel Finish Panel Assembly
    G03437145Courtesy of FORD MOTOR CO.

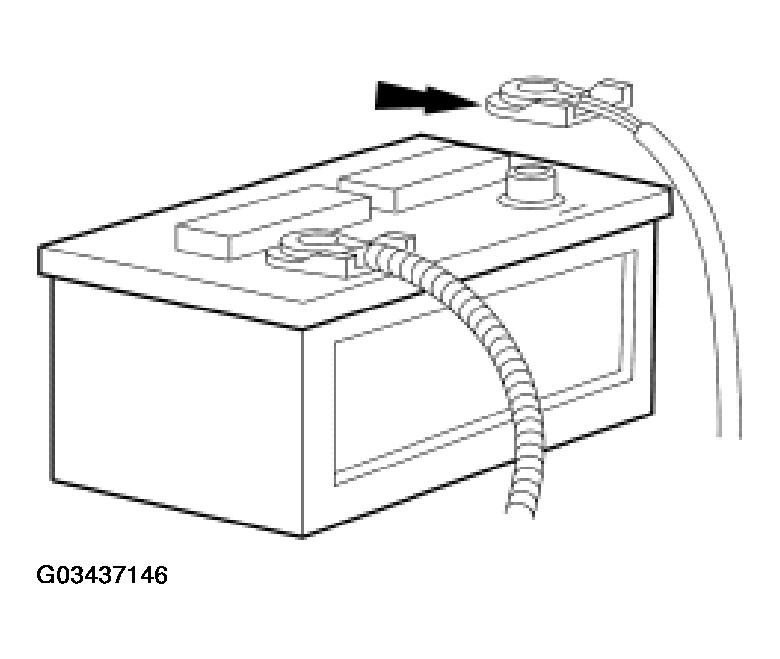

    Fig 6: Connecting Battery Ground Cable
    G03437146Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
