Window Glass - Back: Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Install the glass into the glass opening.
1. Install the back window glass.
2. Tighten the nuts.

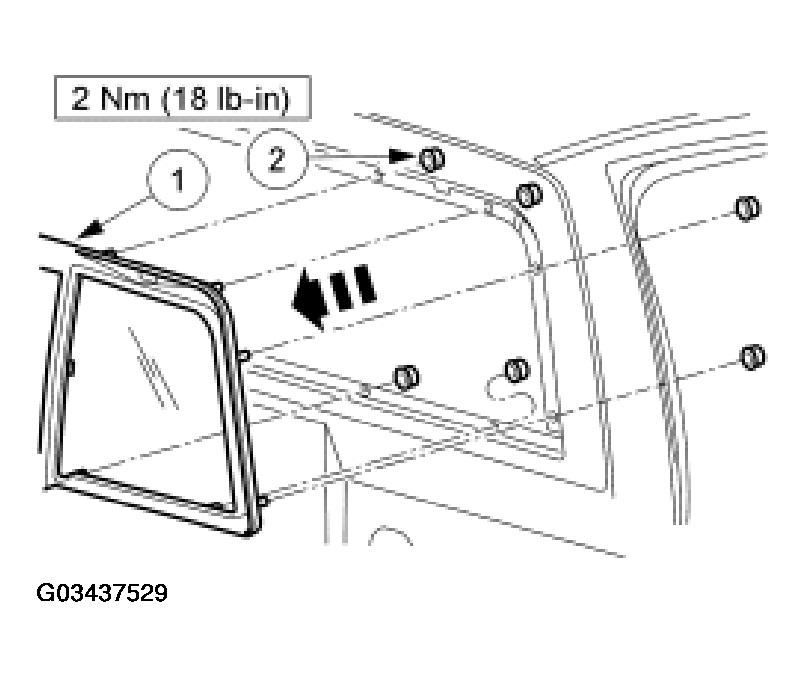

Fig 1: Installing Glass Into Glass Opening
Courtesy of FORD MOTOR CO.
Clean the area around the back window glass.
- Test the back window glass for water leaks.
Install the headliner. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Install the back window garnish moulding.

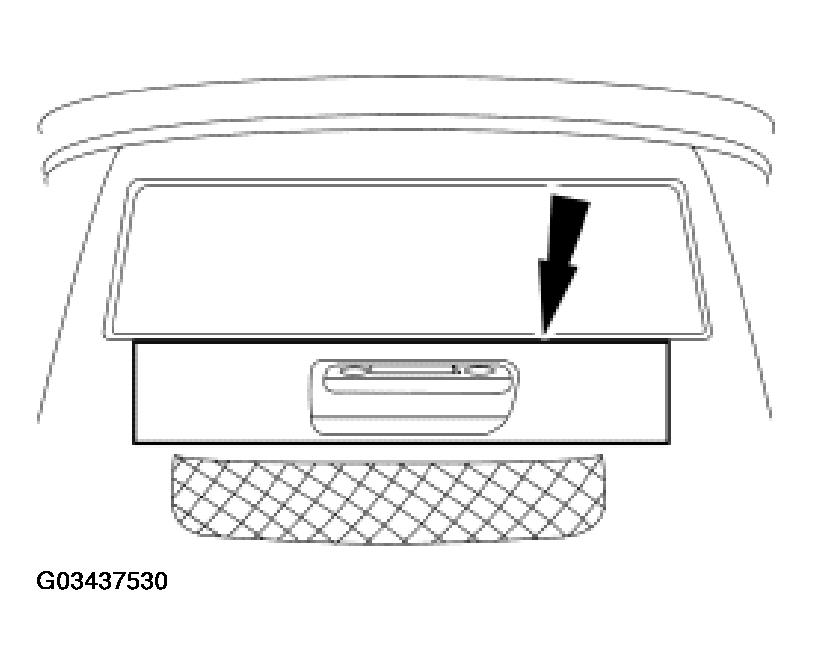

Fig 2: Installing Back Window Garnish Moulding
Courtesy of FORD MOTOR CO.
