Coolant Control Valve

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

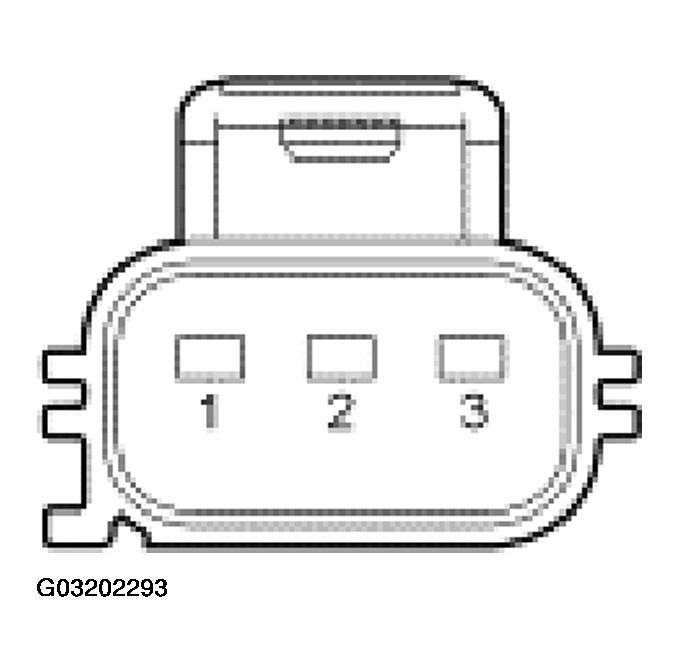

COOLANT CONTROL VALVE PINS RESISTANCE REFERENCE


Coolant Control Valve Pins	Resistance
1 and 2	10-23 ohms
2 and 3	10-23 ohms
